Auto-Deleting Image Tags

Last updated: 2021-09-09 10:38:22

    Overview

    Tencent Container Registry (TCR) supports the hosting and distribution of container images and provides the image building feature to enable image building, push, and hosting to be automatically triggered by code changes. If customers need to quickly iterate their business apps and adopt an automated assembly line to generate images, large numbers of image tags will be generated continuously, rendering most old image tags unnecessary. If a single image repository contains too many image tags, the burden of tag management is huge, and the quota of image tags in the repository will be used up. Therefore, TCR provides the image tag retention feature to allow users to create custom rules for tag retention. Such rules can be triggered periodically to automatically delete the image tags that fall outside the retention scope.

    Tag retention rules support two types of retention policies: retaining the latest # tags pushed and retaining the tags pushed within # days, and simulated execution is supported.

    Note

    The tag retention feature only allows users to delete the image tags that are no longer in use based on rules.

    Directions

    Creating tag retention rules

    1. Log in to the TCR console and select Tag Retention on the left sidebar.
      On the Tag Retention page, you can view the list of tag retention rules for the current instance. To change the instance, select the desired instance name from the Instance Name drop-down list at the top of the page.

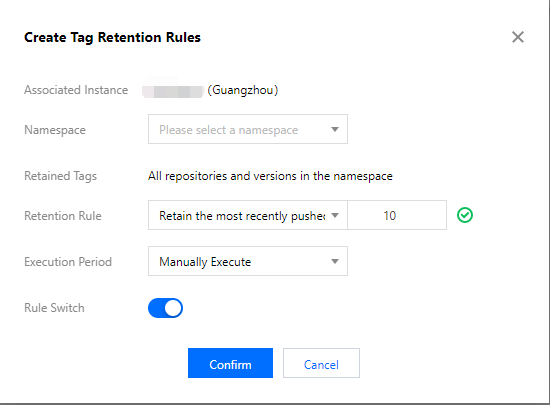

    2. Click Create Rule. In the Create Tag Retention Rules window, configure the rule based on the following information. See the figure below.
      • Associated Instance: the current instance selected.
      • Namespace: the namespace for which the tag retention rule will take effect. Currently, only one rule can be created for a single namespace.
      • Retained Tags: by default, all repositories and tags in the namespace are retained and no filter is applied.
      • Retention Rule: you can choose between Retain the most recently pushed # tags and Retain tags pushed within the last # days and specify the number of tags or days accordingly.
      • Execution Period: the cycle for executing the tag retention rule: manual, daily, weekly, or monthly execution.
      • Rule Switch: by default, the rule is enabled.
    3. Click Confirm to create the tag retention rule.

    Managing tag retention rules

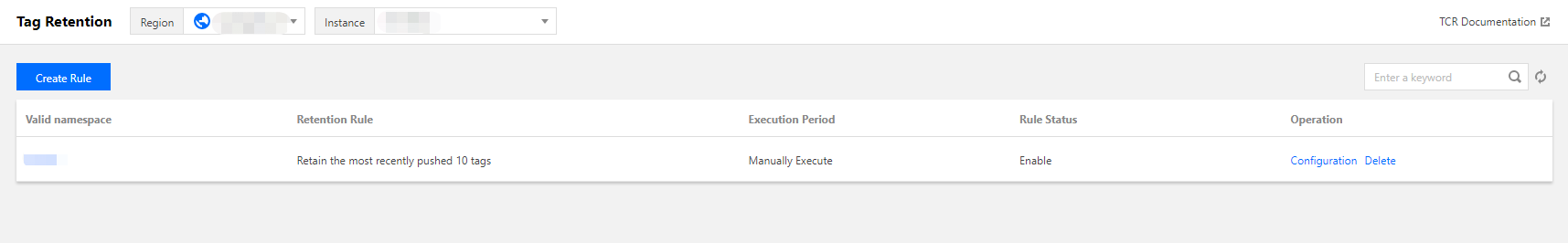

    After successfully creating tag retention rules, you can view the created tag retention rules on the Tag Retention page. You can also perform the following operations to manage the rules. See the figure below:

    • View the rule execution log: you can click the name of a rule to view its triggering log. For more information, see Viewing execution logs.
    • Configuration: you can reconfigure a tag retention rule but cannot modify the namespace for which it takes effect.
    • Delete: you can delete a tag retention rule.

    Viewing execution logs

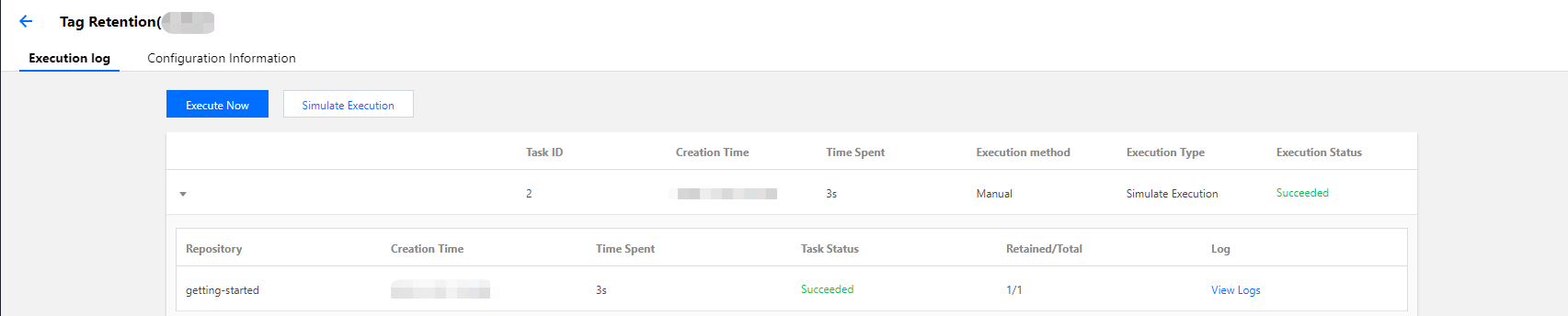

    1. Click the name of a tag retention rule to view the triggering log for the rule, as shown in the figure below:
      • Task ID: ID of a tag retention task, unique within the instance.
      • Creation Time: time when a tag retention task was created.
      • Time Spent: time consumed to complete all the tag retention tasks.
      • Execution Method: manual or automatic. You can click Execute Now or Simulate Execution for manual execution. Automatic execution is based on the cycle specified in the tag retention rule.
      • Execution Type: real execution or simulate execution. Simulate execution can be used to confirm whether a rule is effective, but it does not actually clear image tags.
      • Execution status: status of task completion.
    2. You can click a task ID to view the task details and click a specific repository to view its execution log.

    References

    You can also use the CreateTagRetentionRule API to create the tag retention rules. For more information, see CreateTagRetentionRule API Documentation.
