Viewing Monitoring Data

Last updated: 2020-11-13 14:53:29

    You can view the network monitoring data of a connection or dedicated tunnel via the console or an API to facilitate the troubleshooting. To use the API, see Connection Monitoring Metrics.

    Directions

    1. Log in to the Direct Connect console.
    2. Perform the following steps to view the network monitoring data of a connection.
      1. Click Connections on the left sidebar.
      2. Locate the target connection and click in the Monitoring column.

        Note:

        Only the monitoring data of operating connections can be viewed.

      3. The Monitoring page displays Network Outbound Bandwidth, Network Inbound Bandwidth, Packet Loss, and Packet Error. Select Last 24 hours, Last 7 days or a custom time period to display the monitoring data accordingly.
        • Network Outbound Bandwidth: average outbound traffic of the connection per second.
        • Network Inbound Bandwidth: average inbound traffic of the connection per second.
        • Packet Loss: number of packets discarded on the port per second.
        • Packet Error: number of packet errors on the port per second.
    3. Perform the following steps to view the network monitoring data of a dedicated tunnel.
      1. Click Dedicated Tunnels on the left sidebar.
      2. Locate the target dedicated tunnel and click in the Monitoring column.

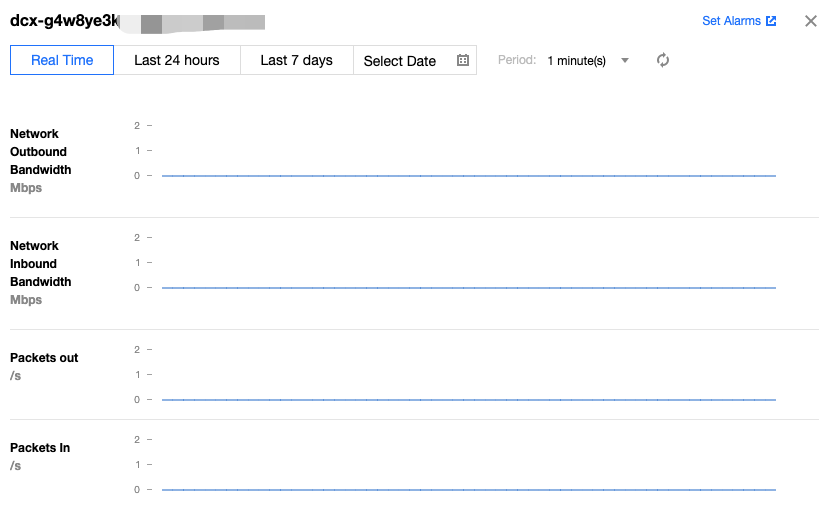

      3. The Monitoring page displays Network Outbound Bandwidth, Network Inbound Bandwidth, Packets Out, and Packets In. Select Last 24 hours, Last 7 days or a custom time period to display the monitoring data accordingly.
        • Network Outbound Bandwidth: average outbound traffic of the dedicated tunnel per second.
        • Network Inbound Bandwidth: average inbound traffic of the dedicated tunnel per second.
        • Packets Out: cumulative outbound traffic of the dedicated tunnel.
        • Packets In: cumulative inbound traffic of the dedicated tunnel.
    4. Perform the following steps to view the network monitoring data of a direct connect gateway.
      1. Click Direct Connect Gateway on the left sidebar.
      2. Locate the target direct connect gateway and click in the Monitoring column.

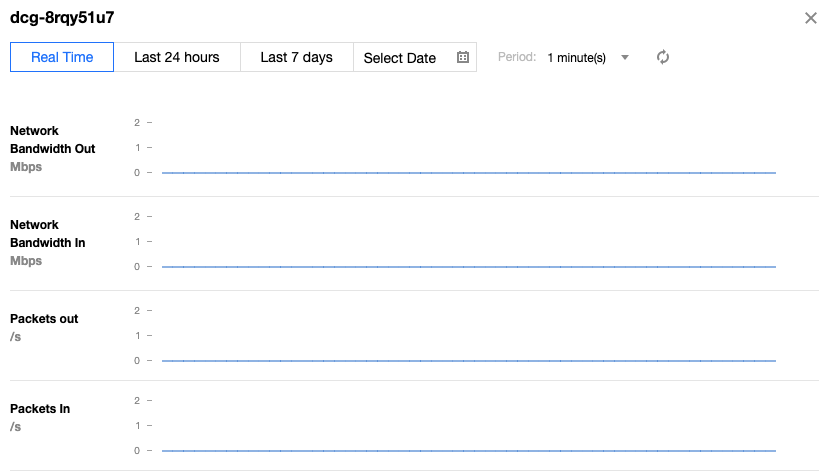

    5. The Monitoring page displays Network Outbound Bandwidth, Network Inbound Bandwidth, Packets Out, Packets In, Outbound Traffic, and Inbound Traffic of the selected direct connect gateway. Select Last 24 hours, Last 7 days or a custom time period to display the monitoring data accordingly.
      • Network Outbound Bandwidth: average outbound traffic of the direct connect gateway per second.
      • Network Inbound Bandwidth: average inbound traffic of the direct connect gateway per second.
      • Packets Out: average outbound packets of the direct connect gateway per second.
      • Packets In: average inbound packets of the direct connect gateway per second.
      • Outbound Traffic: total outbound traffic of all dedicated tunnels associated with the direct connect gateway.
      • Inbound Traffic: total inbound traffic of all dedicated tunnels associated with the direct connect gateway.
