Authentication Configuration

Last updated: 2020-01-14 14:56:37

PDF

Feature Overview

Contents distributed by CDN are public resources by default. To prevent malicious users from stealing your contents for profits, CDN supports the configuration of URL authentication.

Algorithm Description

TypeA

  • Access URL format: http://DomainName/Filename?sign=timestamp-rand-uid-md5hash
  • Algorithm Description:
    • timestamp: A decimal timestamp in UNIX format.
    • rand: A random string consisting of 0 to 100 uppercase or lowercase letters and digits.
    • uid: 0.
    • md5hash: MD5 (file path-timestamp-rand-uid-custom key).

If the original request URL is http://www.test.com/test/1.jpg, then the file path used for MD5 calculation will be /test/1.jpg.

TypeB

  • Access URL format: http://DomainName/timestamp/md5hash/FileName
  • Algorithm description:
    • timestamp: A timestamp in the format of YYYYMMDDHHMM.
    • md5hash: MD5 (custom key+timestamp+file path).

If the original request URL is http://www.test.com/test/1.jpg, then the file path used for MD5 calculation will be /test/1.jpg.

TypeC

  • Access URL format: http://DomainName/md5hash/timestamp/FileName
  • Algorithm Description:
    • timestamp: A hex timestamp in UNIX format.
    • md5hash: MD5 (custom key + file path + timestamp).

If the original request URL is http://www.test.com/test/1.jpg, then the file path used for MD5 calculation will be /test/1.jpg.

TypeD

  • Access URL format: http://DomainName/FileName?sign=md5hash&t=timestamp
  • Algorithm Description:
    • timestamp: A decimal or hex timestamp in UNIX format.
    • md5hash: MD5 (custom key + file path + timestamp).

If the original request URL is http://www.test.com/test/1.jpg, then the file path used for MD5 calculation will be /test/1.jpg.

Configuration Guide

  1. Log in to the CDN Console and click Domain Management on the left sidebar to enter the management page. Find the desired domain name and click Manage in the "Operation" column.
  2. Click Security Configuration and you can see the Authentication Configuration module, which is disabled by default.
  3. In the Authentication Configuration module, click Configuration* to enable authentication. Currently, three types can be configured:

    Currently, TypeB cannot be selected due to feature upgrade.

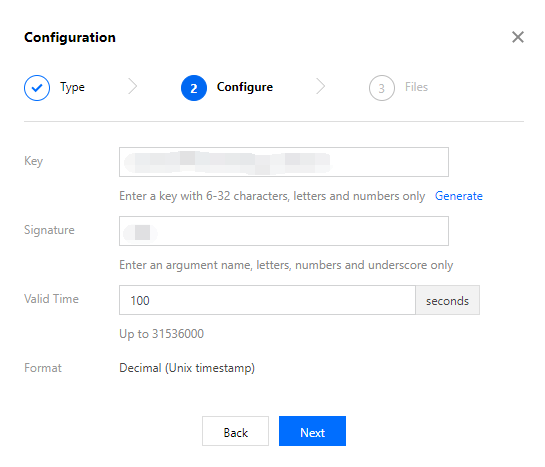

  4. After selecting the type, you can configure authentication parameters. The following takes TypeA as an example:
    • Authentication Key: Select a specified string as the authentication key based on your business conditions.
    • Signature Parameter: Set a parameter name with a signature string. The value is sign by default and can be customized.
    • Effective Time: The server compares the timestamp (obtained by parsing the signature) plus the effective time with the current time to determine whether the signature is effective.
  1. After parameter configuration is completed, specify the authentication range and object.

Authentication Calculator

You can use the authentication calculator to check whether the request path and signature are correct.

In the Authentication Configuration module, click Configuration.* Currently, three types can be configured. Select the type, configure the authentication parameters, and then determine the authentication URL. The following takes TypeA as an example:

  • Currently, TypeB cannot be selected due to feature upgrade.
  • If the access path has a URL with Chinese characters, you need to decode the URL first before performing the authentication configuration.
