Introduction

A Service defines the method for accessing a backend Pod and provides a fixed virtual access IP address. You can access the backend Pod through settings in the Service. Services with different access methods can provide different network capabilities.
TKE provides the following 4 access methods:

Access methods Description
Via Internet
  • In Loadbalance mode of the Service, a public IP address allows direct access to the backend Pod. This is suitable for Web frontend services.
  • The created service can be accessed outside the cluster by using the CLB domain name or IP address and the Service port; and inside the cluster by using the Service name and Service port.
Intra-cluster
  • Uses the ClusterIP mode of the Service, in which an IP address in the IP address range of the Service is automatically assigned for intra-cluster access. This method is applicable to MySQL and other database services to ensure isolation among service networks.
  • The created service can be accessed using the Service name and Service port.
Via VPC
  • Uses the Loadbalance mode of the Service. If annotations:service.kubernetes.io/qcloud-loadbalancer-internal-subnetid: subnet-xxxxxxxx is specified, the backend Pod can be accessed using a private IP address.
  • The created service can be accessed outside the cluster by using the CLB domain name or IP address and the Service port; and inside the cluster by using the Service name and Service port.
Node Port Access
  • An access method that maps a node port to the container, with support for TCP, UDP, and Ingress. It can be used for forwarding from upper-layer custom LB to Node.
  • The created service can be accessed using CVM IP and Node port or Service name and Service port.

Notes

  • Make sure your container and CVM instance do not share a CLB.
  • For a CLB managed by TKE, you cannot modify its listeners and backend-bound servers on CLB console. Changes made on CLB console will be automatically overwritten by TKE.
  • When using an existing CLB:
    • You can only use load balancers created through the CLB console, not balancers automatically created by TKE.
    • Ports of Services sharing the same existing CLB cannot be the same.
    • Services in different clusters cannot share the same CLB.
    • Services sharing the same CLB do not support local access.
    • When you delete a Service using an existing CLB, the real server bound to the balancer needs to be unbound manually. The tag (tke-clusterId: cls-xxxx) is kept for the CLB. You need to clear it manually.

Managing Service in Console

Creating a Service

  1. Log in to the TKE console.
  2. In the left sidebar, click Clusters to go to the cluster management page.
  3. Click the ID of the cluster for which you need to create a Service to go to the cluster management page.

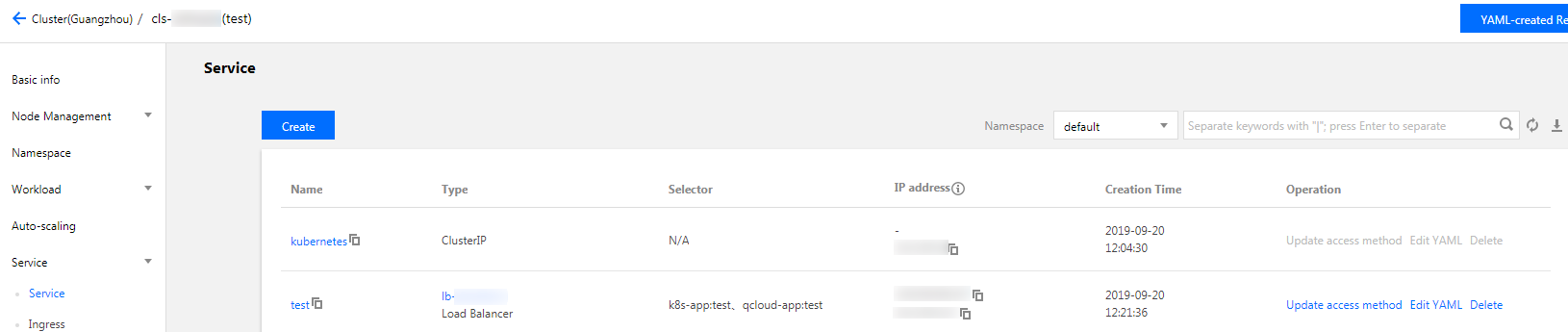

  4. Select Service -> Service to go to the Service information page. See the figure below:
  5. Click Create to go to the Create a Service page. See the figure below:
  6. Set the Service parameters as needed. The key parameter information is as follows:
    • Service name: custom.
    • Namespace: select an option as needed.
    • Access settings: please see Introduction and set this parameter as needed.
  7. Click Create Service to complete creation.

Updating a Service

Updating YAML

  1. Log in to the TKE console.
  2. In the left sidebar, click Clusters to go to the cluster management page.
  3. Click the cluster ID for which you want to update the YAML to go to the cluster management page.
  4. Select Service -> Service to go to the Service information page. See the figure below:
  5. In the row of the Service for which you want to update the YAML, click Edit YAML to go to the Service update page.
  6. On the Update a Service page, edit YAML and click Finish.

Managing Services Using kubectl

YAML Sample

kind: Service
apiVersion: v1
metadata:
  ## annotations:
  ## service.kubernetes.io/qcloud-loadbalancer-internal-subnetid: subnet-xxxxxxxx ## If you are creating a Service for private network access, you need to specify this annotation.
  name: my-service
spec:
  selector:
    app: MyApp
  ports:
  - protocol: TCP
    port: 80
    targetPort: 9376
  type: LoadBalancer
  • kind: identifies the Service resource type.
  • metadata: basic information such as Service name and Label.
  • metadata.annotations: an additional description of a Service. You can set additional enhancements for TKE through this parameter.
  • spec.type: identifies the access type of the Service.
    • ClusterIP: the service is open in the cluster and can be accessed inside the cluster.
      NodePort: Maps the the node port to the backend Service, and the service can be accessed outside the cluster through “[node IP]:[NodePort]”.
    • LoadBalancer: the service is made open to the public through a CLB. A public network CLB is created by default if you choose this type. You can also create a private network CLB by specifying the annotations.
    • ExternalName: the Service is mapped to DNS. This is only applicable to kube-dns v1.7 or higher.

annotations: create a Service for public/private network access with an existing load balancer

If the existing CLB is idle and you want to use it for a Service created by TKE, or you expect to use the same CLB within the cluster, you can set it using the following annotations:

Please read the Notes before using.

metadata:
  annotations:
    service.kubernetes.io/tke-existed-lbid: lb-6swtxxxx

annotations: specifies the Loadbalancer bound to the node

If your cluster is large, you need to set affinity scheduling for entry-type applications to schedule them to certain nodes. You can configure the Loadbalancer of the Service to bind the Loadbalancer only to specified nodes. The annotations are as follows:

metadata:
  annotations:
    service.kubernetes.io/qcloud-loadbalancer-backends-label: `key in (value1, value2) ` ## LabelSelector format
  • It is recommended to use this together with workload affinity scheduling.
  • The prerequisite is that a Label has been set for the nodes according to your business needs.
  • Use native LabelSelector formats such as:
    • service.kubernetes.io/qcloud-loadbalancer-backends-label: key1=values1, key2=values2
    • service.kubernetes.io/qcloud-loadbalancer-backends-label: key1 in (value1),key2 in (value2)
    • service.kubernetes.io/qcloud-loadbalancer-backends-label: key in (value1, value2)
    • service.kubernetes.io/qcloud-loadbalancer-backends-label: key1, key2 notin (value2)
  • If a new node is matched, it will be automatically bound to the Loadbalancer.
  • If you modify the label of an existing node, the node will be dynamically bound with or unbound from the Loadbalancer in accordance with the matching rule.

Descriptions

If you are using an account with IP bandwidth packages, you need to specify the following two annotations when creating a service accessible to the public network:

  • service.kubernetes.io/qcloud-loadbalancer-internet-charge-type identifies the public network bandwidth billing method. Optional values include:
    • TRAFFIC_POSTPAID_BY_HOUR (Bill-by-traffic)
    • BANDWIDTH_POSTPAID_BY_HOUR (Bill-by-bandwidth)
  • service.kubernetes.io/qcloud-loadbalancer-internet-max-bandwidth-out identifies the bandwidth cap (value range: [1,2000] Mbps).
    For example:
    metadata:
    annotations:
    service.kubernetes.io/qcloud-loadbalancer-internet-charge-type: TRAFFIC_POSTPAID_BY_HOUR
    service.kubernetes.io/qcloud-loadbalancer-internet-max-bandwidth-out: "10"

Creating a Service

  1. Prepare the StatefulSet YAML file as instructed by YAML sample.
  2. Install kubectl and connect to a cluster. For detailed operations, please see Connecting to Clusters.
  3. Run the following command to create the Service YAML file.
    kubectl create -f Service YAML filename
    For example, if you want to create a Service YAML file named “my-service.yaml”, run the following command:
    kubectl create -f my-service.yaml
  4. Run the following command to check whether the Service YAML file was successfully created:
    kubectl get services
    A message similar to the one below indicates that the Ingress YAML file is successfully created.
    NAME         TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
    kubernetes ClusterIP 172.16.255.1 <none> 443/TCP 38d

Updating a Service

Method 1

Run the following command to update a Service:

kubectl edit service/[name]

Method 2

  1. Manually delete the old Service.
  2. Run the following command to create a new Service:
    kubectl create/apply

Deleting a Service

Run the following command to delete a Service:

kubectl delete service [NAME]
