Viewing Monitoring Data

Last updated: 2019-10-23 11:15:40

PDF

Operation Scenario

Tencent Cloud TKE provides basic monitoring features to all clusters by default. Use the steps below to view TKE monitoring data.

Prerequisites

Log into TKE console and open Cluster Management page.

Steps

Viewing Cluster Metrics

Click in the row of the cluster for which you want to view the monitoring data. You will see that cluster’s monitoring information as shown in the figure below:

Viewing Node Metrics

Use the steps below to view monitoring information for nodes and Master & Etcd nodes.

  1. Select the ID/name of the cluster you want to view to go to the cluster management page.
  2. Expand Node Management to view monitoring information for ordinary nodes and Master & Etcd nodes.
    • Select Node > Monitoring to go to the Node Monitoring page and view the monitoring information. See the figure below:
    • Select Master & Etcd > Monitoring to go to the Master & Etcd Monitoring page and view the monitoring information. See the figure below:

Viewing Metrics of Pods in a Node

You can use either of the two methods below to view the metrics of pods in a node.

  1. Select the ID/name of the cluster you want to view to go to the cluster management page.
  2. Select Node Management > Node to go to the node list page.
  3. Select the method for viewing the metrics of pods in the node based on your needs.
    • Viewing Pod Metrics from the Node List

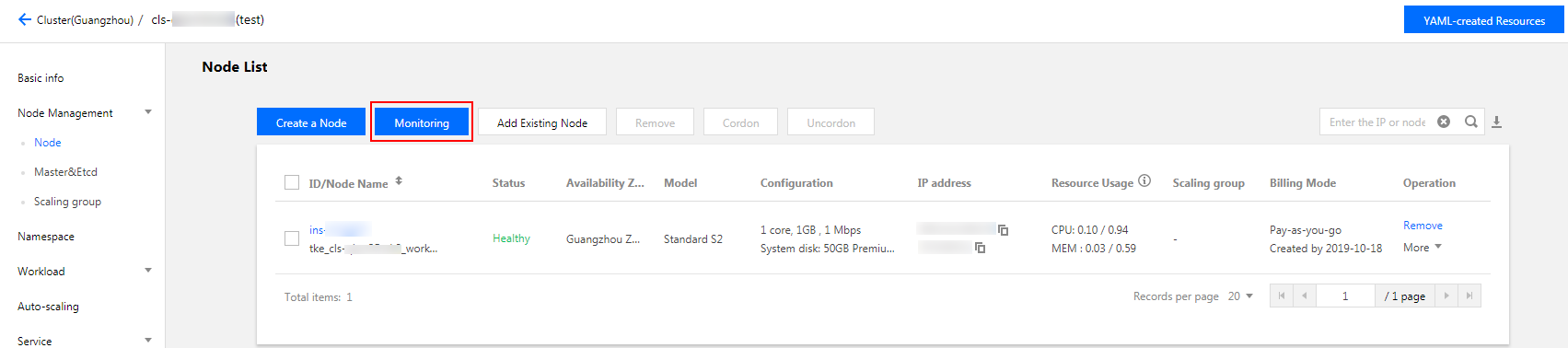

      1. Click Monitoring to go to the Node Monitoring page.

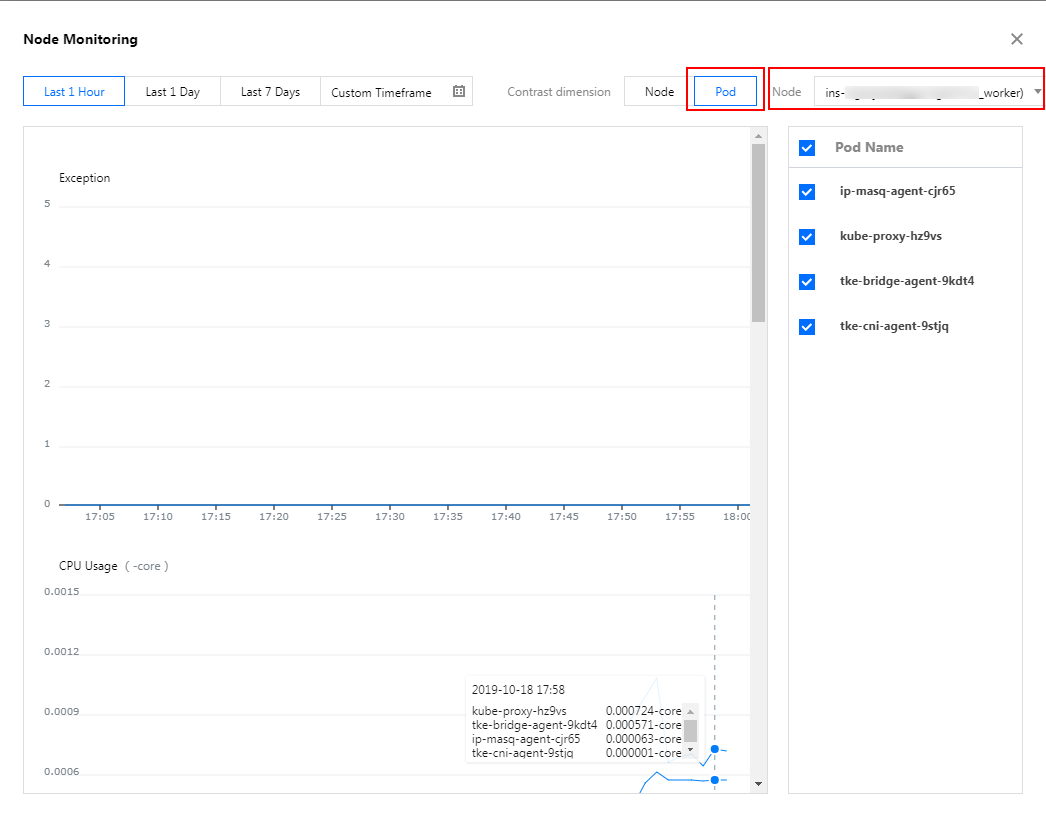

      2. Click Pod and select Node as the node you want to view. This will allow you to view a plot of the monitored metrics for the pods on that node. See the figure below:
    • Viewing Pod Metrics from the Node Details Page
      1. Select the ID/name of the node you want to view to go to the node management page.

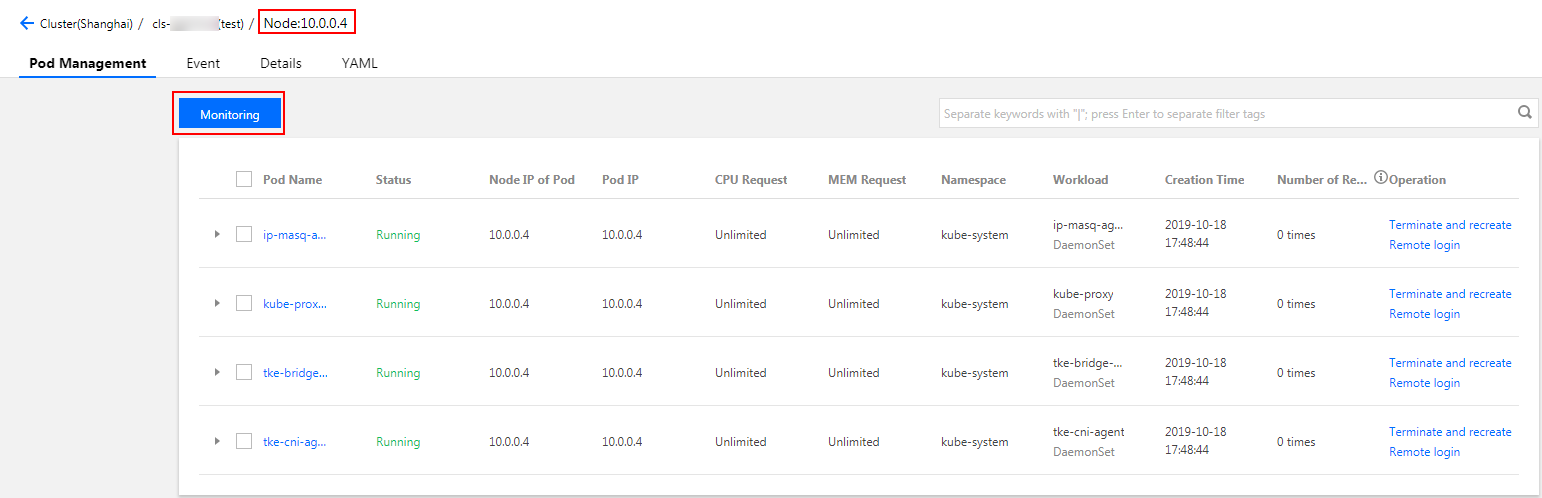

      2. Select the Pod Management tab and click Monitoring to view a plot of the monitored metrics for the pods on that node. See the figure below:

Viewing Workload Metrics

  1. Select the ID/name of the cluster you want to view to go to the cluster management page.
  2. Select Workload > Any Workload Type. For example, select Deployment to go to the deployment management page.
  3. Click Monitoring to view the workload monitoring information. See the figure below:

Viewing Metrics of Pods in a Workload

  1. Select the ID/name of the cluster you want to view to go to the cluster management page.
  2. Select Workload > Any Workload Type. For example, select Deployment to go to the deployment management page.
  3. Select the name of the workload you want to view to go to the workload management page.

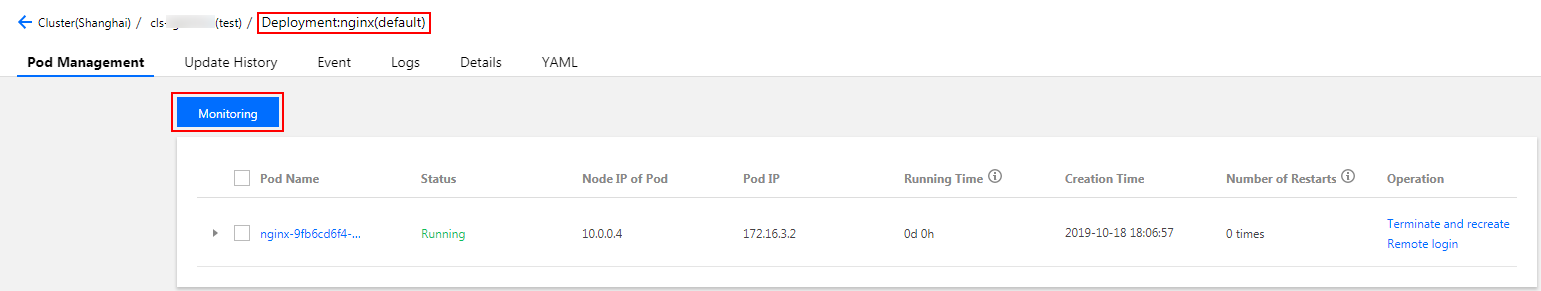

  4. Select the Pod Management tab and click Monitoring to view a plot of the monitored metrics for the pods in that workload. See the figure below:

Viewing Metrics of Containers in a Pod

  1. Refer to step 1 to step 3 of Viewing Pod Metrics in a Workload to go to the workload details page.
  2. Select the Pod Management tab and click Monitoring to go to the Pod Monitoring page.
  3. Click Container and select Pod as the pod you want to view. This will allow you to view a plot of the monitored metrics for the containers in that pod. See the figure below:
