PersistentEvent

Last updated: 2020-11-25 11:52:44

    Overview

    Add-on description

    Kubernetes Events contains information on the operations of Kubernetes clusters and the scheduling of various resources, which can help OPS personnel observe daily changes in resources and locate problems. TKE supports event persistence for all clusters. After this feature is enabled, cluster events will be exported to the configured storage in real time. TKE also supports the searching of event flows by using PAAS services provided by Tencent Cloud or by using open-source software tools.

    Kubernetes Objects Deployed in a Cluster

    Kubernetes Object Name Type Default Resource Consumption Namespaces
    tke-persistent-event deployment 0.2-core CPU and 100-MB memory kube-system

    Use Cases

    Kubernetes Events are records generated for resource lifecycle, resource scheduling, and exception alerts. These events give insight into what is happening inside the cluster. For example, they can shed light on a decision made by a scheduler or analyze why certain pods are evicted from a node.

    Kubernetes only retains Kubernetes Events for one hour by default. PersistentEvent provides a feature that can store Kubernetes Events persistently and allows you to store cluster events to your personal storage.

    Limits

    • Installing PersistentEvent consumes cluster resources of 0.2-core CPU and 100-MB memory.
    • Supports clusters with Kubernetes version 1.8 and later.

    Usage

    Installing and configuring the storage location

    1. Log in to the TKE console and select Cluster in the left sidebar.
    2. At the top of the "Cluster Management" page, select the ID of the target cluster under its region to go to the cluster details page.
    3. In the left sidebar, click Add-On Management to go to the "Add-On List" page.
    4. On the "Add-On List" page, click Create. On the "Create an Add-On" page that appears, select PersistentEvent, configure the event persistence storage location, and click Finish to complete installation.
      Main parameters are described as follows:
      • Storage Location: you can choose to store events to Elasticsearch or CLS.
      • Parameter details:
        • To store events to Elasticsearch, you need to provide the Elasticsearch address and index.
        • To store events to CLS, you need to provide a CLS instance. If no suitable instance is available, you can create a logset by referring to Creating Logsets.

    Searching for events in the CLS console

    1. Log in to the CLS console and select Logset Management in the left sidebar.
    2. On the top of the Logset Management page, select the region of the logset configured by PersistentEvent.

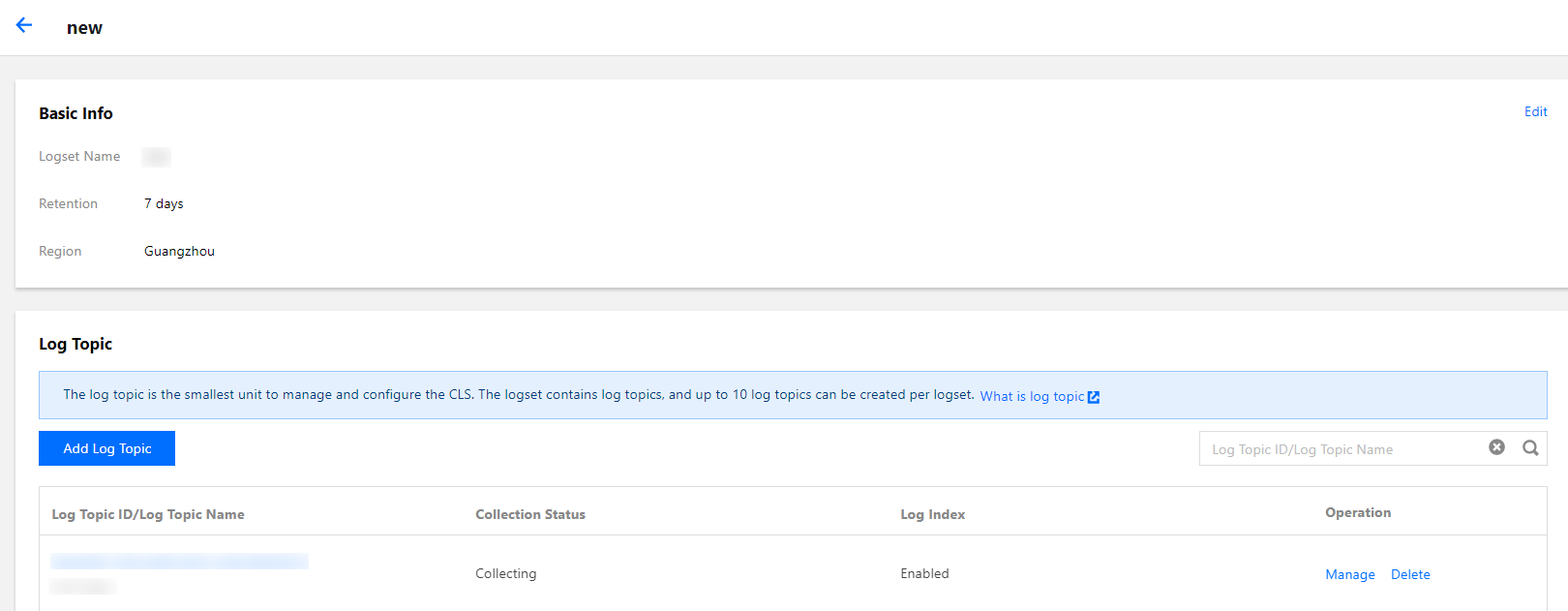

    3. In the logset list, click the name of the logset configured by PersistentEvent to go to the logset details page, as shown in the figure below:
    4. Click Manage for the logset configured by PersistentEvent to go to the Log Topic details page.

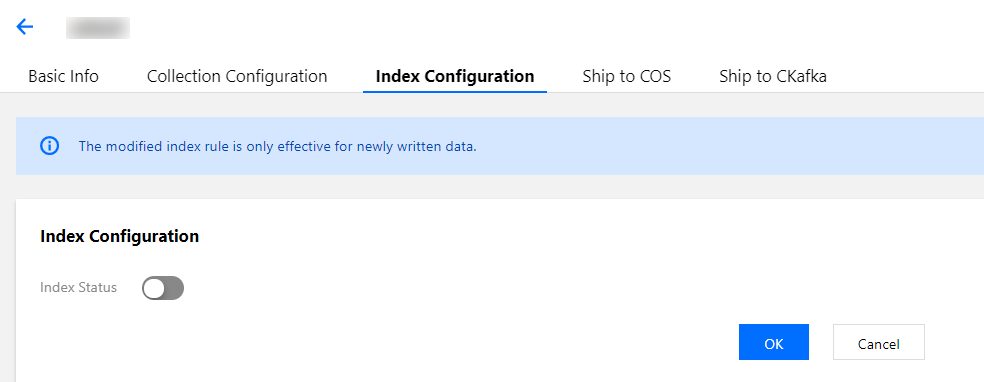

    5. Click the Search Configuration tab page. On this page, enable index configuration and click Save to enable the log indexing feature, as shown in the figure below:

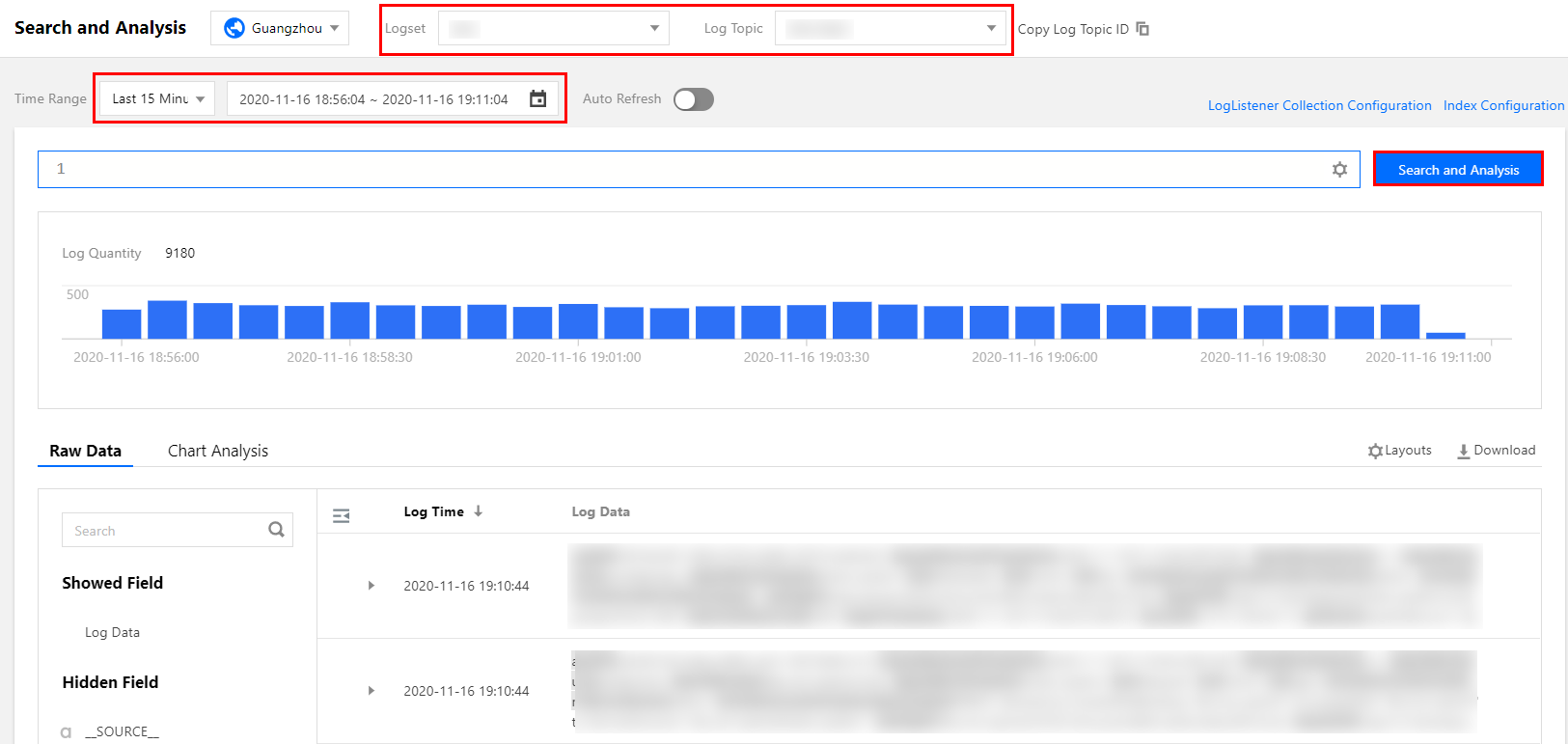

    6. Select Log Index in the left sidebar. Then, select the log service configured by PersistentEvent in the Logset and Log Topic drop-down lists, select the period for which to search for logs, and click Query Analysis to view event data, as shown in the figure below:
