Case of Acceleration Outside Mainland China

Last updated: 2020-04-28 14:50:47

    Test Description

    Test methods

    A third-party network application performance monitoring and speed test method widely used in the industry is adopted, and the test service provider is Bonree.

    Test parameters

    Test time May 24, 2010 00:00–May 30, 2018 20:00
    Client address Countries and regions such as Hong Kong (China), Singapore, and Malaysia
    Origin server address IDC in Virginia, US
    Test link https://****/**/GetPage?PageId=7141974606000205
    Comparison method The same test link is used to compare the direct access to the origin server and ECDN accelerated access by setting host IP and CNAME resolution respectively

    Test Results

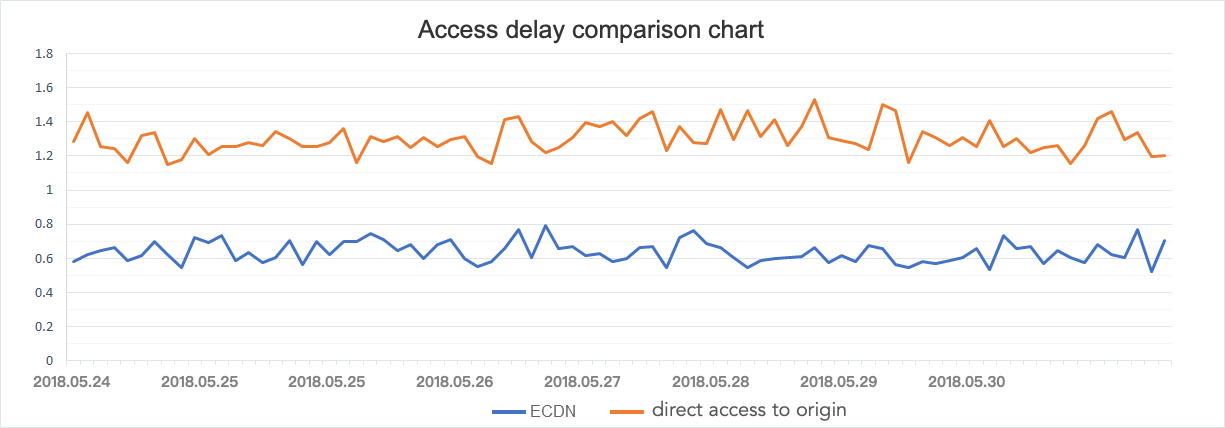

    Performance curve

    Usability curve

    Summary

    1. After ECDN is used, the average access performance of the product is improved by 104.71% **, and the page loading performance is significantly improved;
    2. In cross-border access scenarios, traditional public network access is affected by network packet losses and long delays, and the access stability fluctuates greatly. After ECDN is used, the availability and stability of page access are greatly improved.

    Data summary analysis

    Monitoring Task Performance (Seconds) Availability (%) Monitors
    Average Best Worse Average Best Worse Erroneous Points Monitored Points
    ECDN Accelerated Access 0.637 0.337 1.440 99.93 100.00 98.44 7 10694
    Direct Access to Origin Server 1.304 0.989 2.872 98.37 100.00 93.55 173 10620

    Data details

    Time ECDN Accelerated Access Direct Access to Origin Server
    Performance (Seconds) Availability (%) Monitored Points Performance (Seconds) Availability (%) Monitored Points
    May 24, 2018 01:00 0.583 100.00 128 1.287 98.39 124
    May 24, 2018 03:00 0.622 100.00 136 1.454 100.00 128
    May 24, 2018 05:00 0.648 100.00 120 1.256 100.00 108
    May 24, 2018 07:00 0.664 100.00 132 1.241 98.33 120
    May 24, 2018 09:00 0.586 100.00 120 1.159 96.77 124
    May 24, 2018 11:00 0.614 100.00 132 1.319 97.41 116
    May 24, 2018 13:00 0.696 100.00 120 1.335 98.39 124
    May 24, 2018 15:00 0.621 100.00 116 1.152 97.58 124
    May 24, 2018 17:00 0.547 98.44 128 1.181 98.33 120
    May 24, 2018 19:00 0.723 100.00 140 1.302 95.31 128
    May 24, 2018 21:00 0.693 100.00 128 1.209 99.19 124
    May 24, 2018 23:00 0.734 100.00 124 1.257 99.24 132
    May 25, 2018 01:00 0.589 100.00 136 1.254 98.44 128
    May 25, 2018 03:00 0.636 100.00 144 1.277 100.00 124
    May 25, 2018 05:00 0.578 100.00 128 1.262 99.17 120
    May 25, 2018 07:00 0.606 100.00 116 1.343 100.00 120
    May 25, 2018 09:00 0.706 100.00 120 1.305 100.00 128
    May 25, 2018 11:00 0.563 100.00 136 1.253 99.22 128
    May 25, 2018 13:00 0.701 100.00 124 1.255 99.24 132
    May 25, 2018 15:00 0.624 100.00 128 1.277 97.66 128
    May 25, 2018 17:00 0.698 100.00 136 1.359 96.09 128
    May 25, 2018 19:00 0.697 99.11 112 1.160 96.77 124
    May 25, 2018 21:00 0.744 100.00 124 1.312 96.43 140
    May 25, 2018 23:00 0.711 100.00 136 1.284 100.00 136
    May 26, 2018 01:00 0.643 100.00 132 1.316 99.22 128
    May 26, 2018 03:00 0.683 100.00 128 1.248 100.00 120
    May 26, 2018 05:00 0.596 100.00 136 1.307 100.00 128
    May 26, 2018 07:00 0.678 100.00 128 1.258 97.66 128
    May 26, 2018 09:00 0.709 100.00 132 1.298 100.00 128
    May 26, 2018 11:00 0.601 100.00 132 1.315 99.24 132
    May 26, 2018 13:00 0.553 98.57 140 1.195 97.66 128
    May 26, 2018 15:00 0.583 100.00 128 1.153 97.41 116
    May 26, 2018 17:00 0.658 100.00 132 1.414 98.53 136
    May 26, 2018 19:00 0.768 100.00 136 1.430 96.32 136
    May 26, 2018 21:00 0.603 100.00 132 1.285 98.48 132
    May 26, 2018 23:00 0.792 100.00 124 1.218 97.58 124
    May 27, 2018 01:00 0.659 100.00 132 1.249 98.48 132
    May 27, 2018 03:00 0.667 100.00 140 1.310 99.24 132
    May 27, 2018 05:00 0.617 100.00 132 1.396 97.73 132
    May 27, 2018 07:00 0.627 100.00 132 1.374 98.48 132
    May 27, 2018 09:00 0.580 100.00 124 1.399 100.00 136
    May 27, 2018 11:00 0.600 100.00 140 1.317 100.00 128
    May 27, 2018 13:00 0.661 100.00 132 1.420 96.97 132
    May 27, 2018 15:00 0.668 100.00 136 1.463 100.00 132
    May 27, 2018 17:00 0.544 100.00 124 1.233 93.97 116
    May 27, 2018 19:00 0.722 100.00 132 1.374 97.14 140
    May 27, 2018 21:00 0.764 100.00 116 1.281 93.55 124
    May 27, 2018 23:00 0.686 100.00 128 1.272 93.94 132
    May 28, 2018 01:00 0.666 100.00 120 1.473 97.79 136
    May 28, 2018 03:00 0.603 100.00 132 1.297 100.00 124
    May 28, 2018 05:00 0.549 100.00 124 1.467 99.29 140
    May 28, 2018 07:00 0.589 100.00 124 1.312 100.00 140
    May 28, 2018 09:00 0.601 100.00 132 1.415 100.00 128
    May 28, 2018 11:00 0.602 100.00 140 1.263 99.17 120
    May 28, 2018 13:00 0.613 100.00 128 1.372 100.00 128
    May 28, 2018 15:00 0.663 100.00 122 1.531 100.00 124
    May 28, 2018 17:00 0.576 100.00 124 1.309 98.53 136
    May 28, 2018 19:00 0.614 100.00 136 1.290 95.00 140
    May 28, 2018 21:00 0.583 100.00 132 1.275 95.00 140
    May 28, 2018 23:00 0.674 100.00 120 1.239 99.26 136
    May 29, 2018 01:00 0.657 100.00 132 1.503 99.29 140
    May 29, 2018 03:00 0.565 100.00 136 1.469 100.00 136
    May 29, 2018 05:00 0.544 100.00 132 1.162 100.00 136
    May 29, 2018 07:00 0.579 100.00 136 1.343 100.00 132
    May 29, 2018 09:00 0.567 100.00 120 1.310 98.39 124
    May 29, 2018 11:00 0.585 100.00 132 1.262 100.00 128
    May 29, 2018 13:00 0.606 100.00 136 1.309 97.86 140
    May 29, 2018 15:00 0.655 100.00 144 1.253 99.26 136
    May 29, 2018 17:00 0.536 100.00 140 1.408 94.29 140
    May 29, 2018 19:00 0.735 100.00 124 1.255 95.45 132
    May 29, 2018 21:00 0.655 100.00 124 1.305 97.32 112
    May 29, 2018 23:00 0.668 100.00 128 1.222 99.22 128
    May 30, 2018 01:00 0.568 100.00 140 1.252 100.00 136
    May 30, 2018 03:00 0.647 100.00 144 1.262 100.00 136
    May 30, 2018 05:00 0.607 100.00 140 1.156 100.00 124
    May 30, 2018 07:00 0.573 100.00 124 1.263 100.00 132
    May 30, 2018 09:00 0.680 99.24 132 1.417 100.00 136
    May 30, 2018 11:00 0.621 100.00 136 1.461 99.24 132
    May 30, 2018 13:00 0.606 99.26 136 1.296 99.22 128
    May 30, 2018 15:00 0.769 100.00 136 1.335 95.45 132
    May 30, 2018 17:00 0.522 100.00 130 1.199 96.97 132
    May 30, 2018 19:00 0.703 100.00 146 1.204 96.53 144

    Notes

    1. Data in the above case comes from a third-party performance monitoring service provider, and the actual performance is subject to actual end user access results.
    2. The above acceleration effect is for reference only, which is subject to factors such as customer business type and origin server network conditions.
