Step 1. Create and Test blogArticle Function

Last updated: 2018-09-03 15:26:36

PDF

In this section, you will create a function to achieve API response regarding blog articles, and test the function by calling it through the console.

Creating a blogArticle SCF

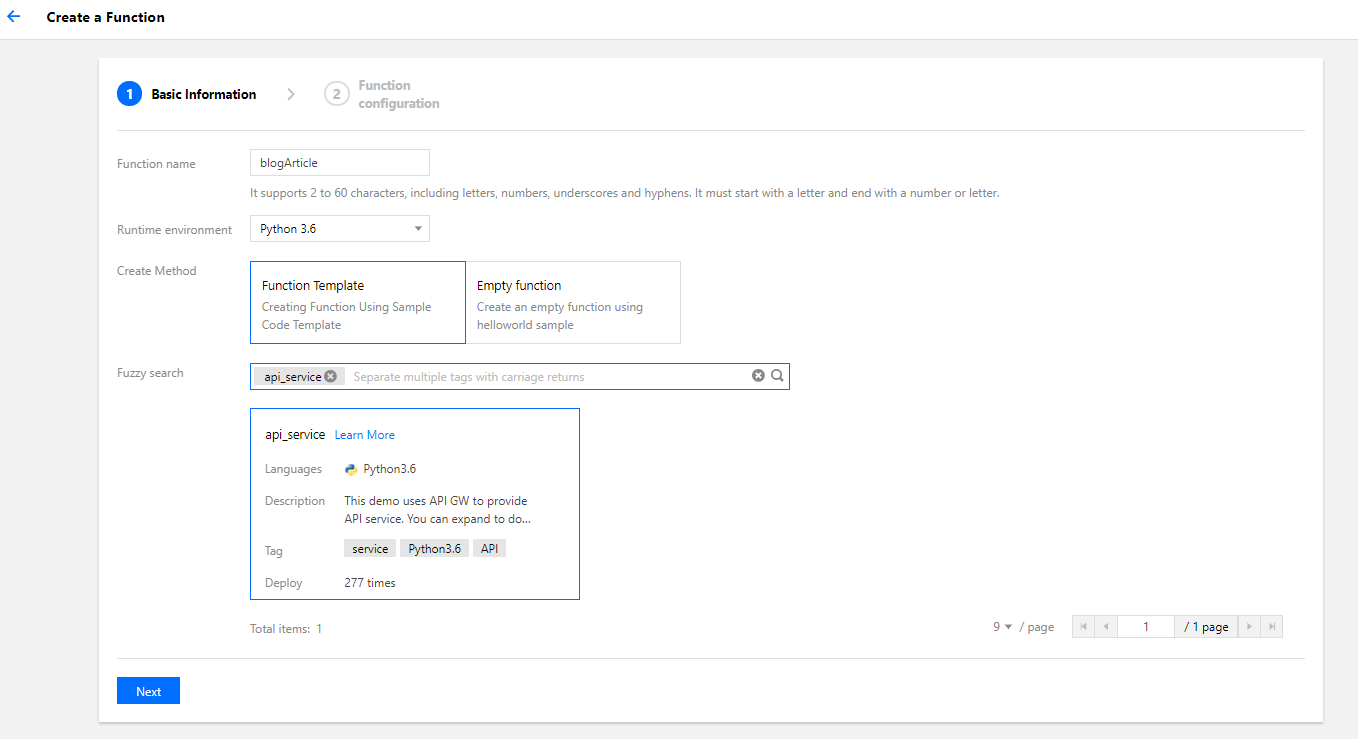

  1. Log in to the Serverless Cloud Function Console. Select Guangzhou from the region list and click Create.

  2. In the Function configuration section, enter blogArticle as the function name, leave all the other configuration options unchanged, and then click Next.

  3. In the Function code section, enter index.main_handler as the execution method and paste the following codes into the code window, and then click Next.

# -*- coding: utf8 -*-
import json

testArticleInfo=[
    {"id":1,"category":"blog","title":"hello world","content":"first blog! hello world!","time":"2017-12-05 13:45"},
    {"id":2,"category":"blog","title":"record info","content":"record work and study!","time":"2017-12-06 08:22"},
    {"id":3,"category":"python","title":"python study","content":"python study for 2.7","time":"2017-12-06 18:32"},
]

def main_handler(event,content):
    if "requestContext" not in event.keys():
        return json.dumps({"errorCode":410,"errorMsg":"event is not come from api gateway"})
    if event["requestContext"]["path"] != "/article/{articleId}" and event["requestContext"]["path"] != "/article":
        return json.dumps({"errorCode":411,"errorMsg":"request is not from setting api path"})
    if event["requestContext"]["path"] == "/article" and event["requestContext"]["httpMethod"] == "GET": #Obtain the article list
        retList = []
        for article in testArticleInfo:
            retItem = {}
            retItem["id"] = article["id"]
            retItem["category"] = article["category"]
            retItem["title"] = article["title"]
            retItem["time"] = article["time"]
            retList.append(retItem)
        return json.dumps(retList)
    if event["requestContext"]["path"] == "/article/{articleId}" and event["requestContext"]["httpMethod"] == "GET": #Obtain the article content
        articleId = int(event["pathParameters"]["articleId"])
        for article in testArticleInfo:
            if article["id"] == articleId:
                return json.dumps(article)
        return json.dumps({"errorCode":412,"errorMsg":"article is not found"})
    return json.dumps({"errorCode":413,"errorMsg":"request is not correctly execute"})
  1. In the Triggering method section, you do not need to add any trigger method because the API gateway trigger is configured in the API gateway. Click Complete.

Note

The data structure of articles can be saved and simulated using the variable testArticleInfo. Usually, data structures are read from databases or files.

Testing the blogArticle SCF

When a function is created, it is generally tested through the console or API, to ensure the function output meets the expectation, and then you can bind it to a trigger for practical application.

  1. In the details page of the function you just created, click Test.

  2. Select API Gateway Test Template from the test templates. Modify it as follows to test the API for obtaining the article list.

{
  "requestContext": {
    "serviceName": "testsvc",
    "path": "/article",
    "httpMethod": "GET",
    "requestId": "c6af9ac6-7b61-11e6-9a41-93e8deadbeef",
    "identity": {
      "secretId": "abdcdxxxxxxxsdfs"
    },
    "sourceIp": "10.0.2.14",
    "stage": "prod"
  },
  "headers": {
    "Accept-Language": "en-US,en,cn",
    "Accept": "text/html,application/xml,application/json",
    "Host": "service-3ei3tii4-251000691.ap-guangzhou.apigateway.myqloud.com",
    "User-Agent": "User Agent String"
  },
  "pathParameters": {
  },
  "queryStringParameters": {
  },
  "headerParameters":{
    "Refer": "10.0.2.14"
  },
  "path": "/article",
  "httpMethod": "GET"
}

In the code above, the path and httpMethod fields in requestContext, as well as the peripheral path and httpMethod fields are modified as /article (the API path we design) and GET.

  1. Click Run to view the results. The running result should be successful, and the content returned should be the basic information of articles as shown below.
[{"category": "blog", "time": "2017-12-05 13:45", "id": 1, "title": "hello world"}, {"category": "blog", "time": "2017-12-06 08:22", "id": 2, "title": "record info"}, {"category": "python", "time": "2017-12-06 18:32", "id": 3, "title": "python study"}]
  1. Modify the test template as follows to test the API for obtaining article contents.
{
  "requestContext": {
    "serviceName": "testsvc",
    "path": "/article/{articleId}",
    "httpMethod": "GET",
    "requestId": "c6af9ac6-7b61-11e6-9a41-93e8deadbeef",
    "identity": {
      "secretId": "abdcdxxxxxxxsdfs"
    },
    "sourceIp": "10.0.2.14",
    "stage": "prod"
  },
  "headers": {
    "Accept-Language": "en-US,en,cn",
    "Accept": "text/html,application/xml,application/json",
    "Host": "service-3ei3tii4-251000691.ap-guangzhou.apigateway.myqloud.com",
    "User-Agent": "User Agent String"
  },
  "pathParameters": {
    "articleId":"1"
  },
  "queryStringParameters": {
  },
  "headerParameters":{
    "Refer": "10.0.2.14"
  },
  "path": "/article/1",
  "httpMethod": "GET"
}

The path and httpMethod fields in requestContext are modified as /article/{articleId} (the API path we design) and GET. The peripheral path and httpMethod fields are modified as /article/1 (the actual request path) and GET. The pathParameters field should be "articleId":"1", the parameter and the actual value extracted from the API gateway.

  1. Click Run to view the results. The running result should be successful, and the content returned should be the detailed content of articles as shown below.
{"category": "blog", "content": "first blog! hello world!", "time": "2017-12-05 13:45", "id": 1, "title": "hello world"}
