Message Query

Last updated: 2021-03-11 18:01:48

    Overview

    When encountering a consumption exception, you can troubleshoot the problem by querying the message in the CKafka console. This document describes how to query messages in the CKafka console.

    The console supports query by offset and time, which are used in different scenarios:

    • Query by offset: you know the ID of a topic’s partition to which the message is sent and the offset of the message.
    • Query by time: you are not sure about the offset of the message but know when the message is sent.

    Note:

    • The console does not list all the messages after the specified time or offset. You can query at most 20 messages at a time.
    • Refrain from frequent querying as message querying consumes bandwidth too.

    Directions

    Query by offset

    1. Log in to the CKafka console.
    2. Click Instance List in the left navigation pane and then the ID/Name of your instance to enter the instance details page.
    3. On the details page, select Topic Management, find the target topic, and click Message Query in the Operation column.

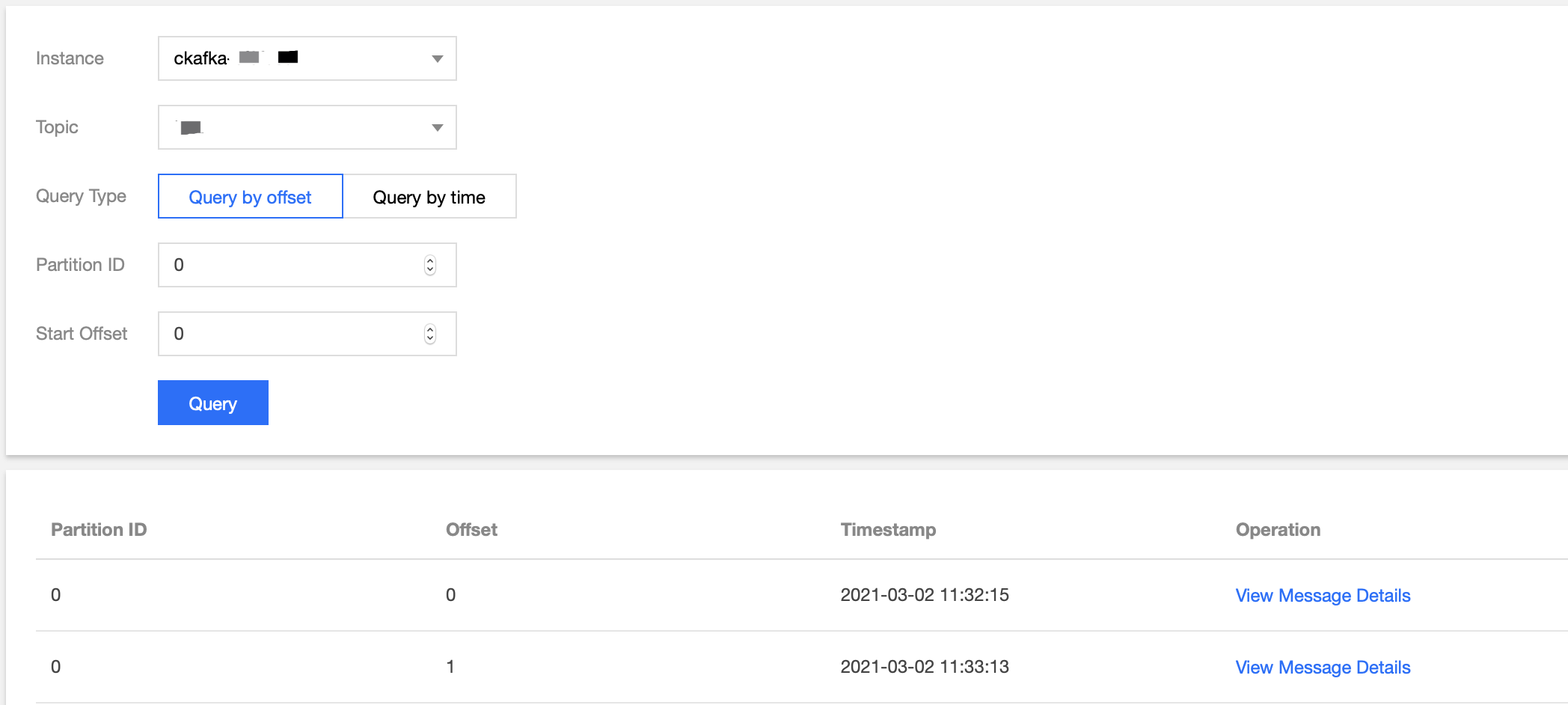

    4. Select Query by offset, enter the partition ID and starting offset, and click *Query to view the message details.
      • Partition ID: topic partition to which the message is sent
      • Offset: consumer offset of the message
      • Timestamp: timestamp in ProducerRecord

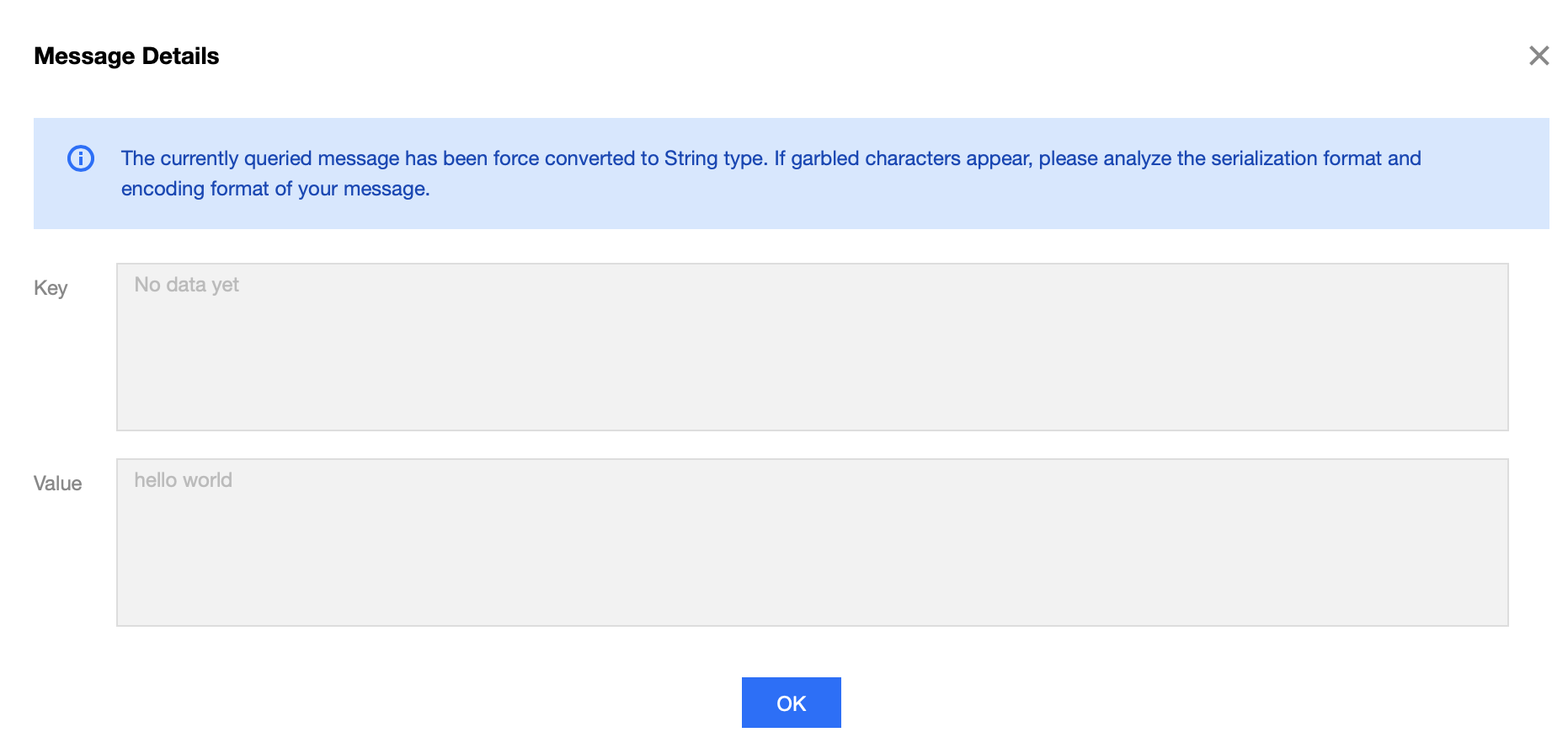

      • Operation: click Message Details to view the key and value of the message.

    Query by time

    1. Log in to the CKafka console.
    2. Click Instance List in the left navigation pane and then the ID/Name of your instance to enter the instance details page.
    3. On the details page, select Topic Management, find the target topic, and click Message Query in the Operation column.
    4. Select Query by time, enter the partition ID and time, and click Query to view the message details.
      • Partition ID: topic partition to which the message is sent
      • Offset: consumer offset of the message
      • Timestamp: timestamp in ProducerRecord
      • Operation: click Message Details to view the key and value of the message.
