Connecting Logstash to CKafka
Logstash is an open-source log processing tool that can be used to collect data from multiple sources, filter the collected data, and store it for various uses.
Logstash is highly flexible and has powerful syntax analysis capabilities. With a variety of plugins, it supports multiple input and output sources. In addition, as a horizontally scalable data pipeline, Logstash works seamlessly with Elasticsearch and Kibana, offering robust functionality in log collection and search.
How Logstash Works
The Logstash data processing can be divided into three stages: inputs → filters → outputs.
1. Inputs: Collect data from multiple sources like file, syslog, redis, and beats.
2. Filters: Modify and filter the collected data. Filters are intermediate processing components in the Logstash data pipeline. They can modify events based on specific conditions. Some commonly used filters are grok, mutate, drop, and clone.
3. Outputs: Transfer the processed data to other destinations. An event can be transferred to multiple outputs, and the event ends when the transfer is completed. Elasticsearch is the most commonly used outputs.
In addition, Logstash supports encoding and decoding data, so you can specify data formats on the input and output ends.
Advantages of Connecting Logstash to Kafka
Asynchronous data processing: It can prevent traffic spikes.
Decoupling: When an exception occurs in Elasticsearch, the upstream work will not be affected.
Note
Logstash consumes resources when filtering data. If you deploy Logstash on a production server, the performance of the server may be affected.
Prerequisites
Download and install Logstash, see Download Logstash.
Download and install JDK 8, see Download JDK 8.
Directions
Step 1: Preparations

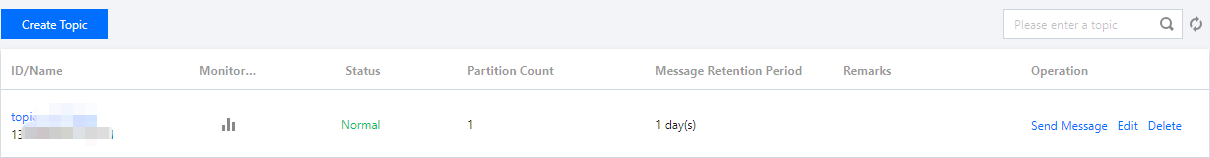

1. On the Elastic Topic list page of the console, create a Topic.

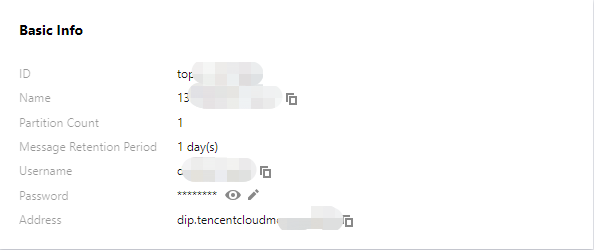

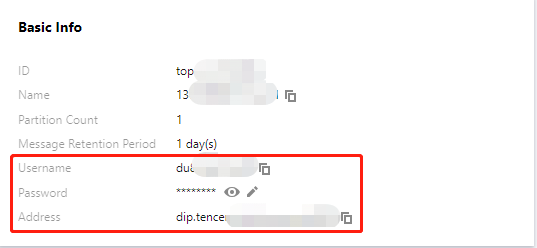

2. Click the ID of the Topic to enter the Basic Information page, and obtain username, password, and address information.

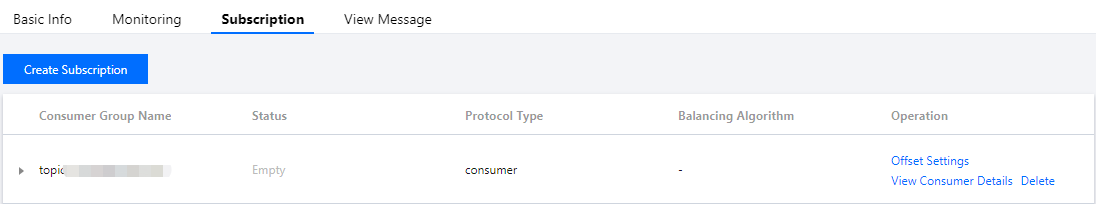

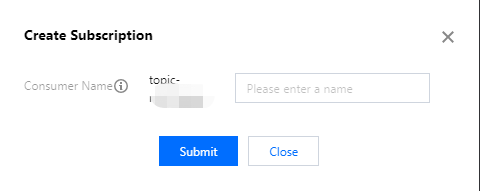

3. On the Subscription Relationship tab, create a subscription relationship (consumption group).
Step 2: Connecting to CKafka
Note
You can click the tabs below to view the specific steps for connecting CKafka as inputs or outputs.
1. Run
bin/logstash-plugin list to check if the supported plugins include logstash-input-kafka.
2. In the .bin/ directory, create the configuration file named input.conf.
Here, standard output serves as the data destination and Kafka serves as the data source. The kafka-client-jaas.conf file is used for configuring SASL-PLAINTEXT username and password.
input {kafka {bootstrap_servers => "xx.xx.xx.xx:xxxx" // Ckafka connection addressgroup_id => "logstash_group" // CKafka group IDtopics => ["logstash_test"] // CKafka topic nameconsumer_threads => 3 // Number of consumption threads, which is generally the same as the number of CKafka partitions.auto_offset_reset => "earliest"security_protocol => "SASL_PLAINTEXT"sasl_mechanism => "PLAIN"jaas_path => "xx/xx/kafka-client-jaas.conf"}}output {stdout{codec=>rubydebug}}
The content of kafka-client-jaas.conf is as follows:
KafkaClient {org.apache.kafka.common.security.plain.PlainLoginModule requiredusername="username"password="password";};
3. Run the following command to start Logstash and begin message consumption:
./logstash -f input.conf

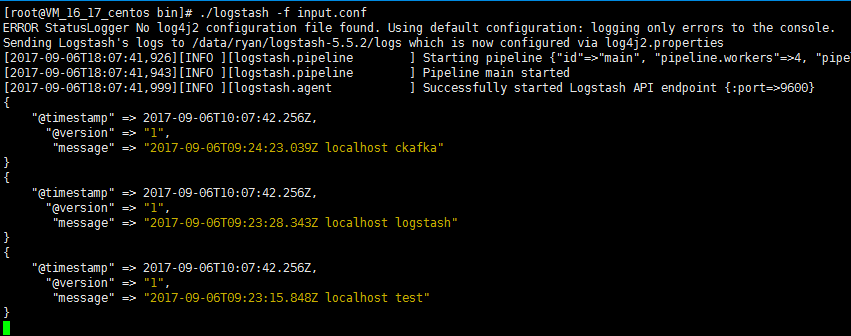

The returned result is as follows:
1. Run
bin/logstash-plugin list to check if the supported plugins include logstash-output-kafka.
2. Write a configuration file output.conf in the .bin/ directory.
Here, standard input serves as the data source and Kafka serves as the data destination. The kafka-client-jaas.conf file is used for configuring SASL-PLAINTEXT username and password.
input {stdin{}}output {kafka {bootstrap_servers => "xx.xx.xx.xx:xxxx" // Ckafka connection addresstopic_id => "logstash_test" // CKafka topic namesecurity_protocol => "SASL_PLAINTEXT"sasl_mechanism => "PLAIN"jaas_path => "xx/xx/kafka-client-jaas.conf"}}
The content of kafka-client-jaas.conf is as follows:
KafkaClient {org.apache.kafka.common.security.plain.PlainLoginModule requiredusername="username"password="password";};

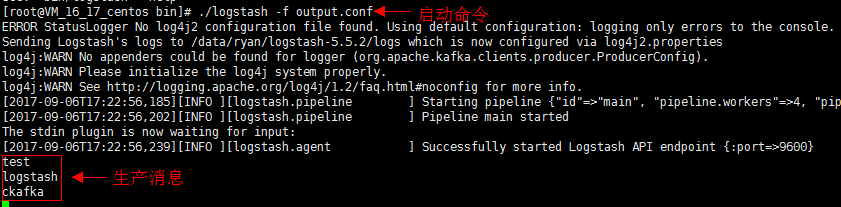

3. Run the following command to start Logstash and send messages to the created Topic.
./logstash -f output.conf
4. Start the CKafka consumer and verify the production data in the previous step.
Parameter | Description |
bootstrapServers | The connection address. It can be obtained from the basic information page of an elastic Topic in the console.  |
username | The username. It can be obtained from the basic information page of an elastic Topic in the console. |
password | The user password. It can be obtained from the basic information page of an elastic Topic in the console. |
topic_id | The topic name. It can be obtained from the basic information page of an elastic Topic in the console. |
group.id | The consumption group name. It can be obtained from the subscription relationship list of an elastic Topic in the console.  |
