Video Conferencing (iOS)

Last updated: 2022-01-05 12:19:05

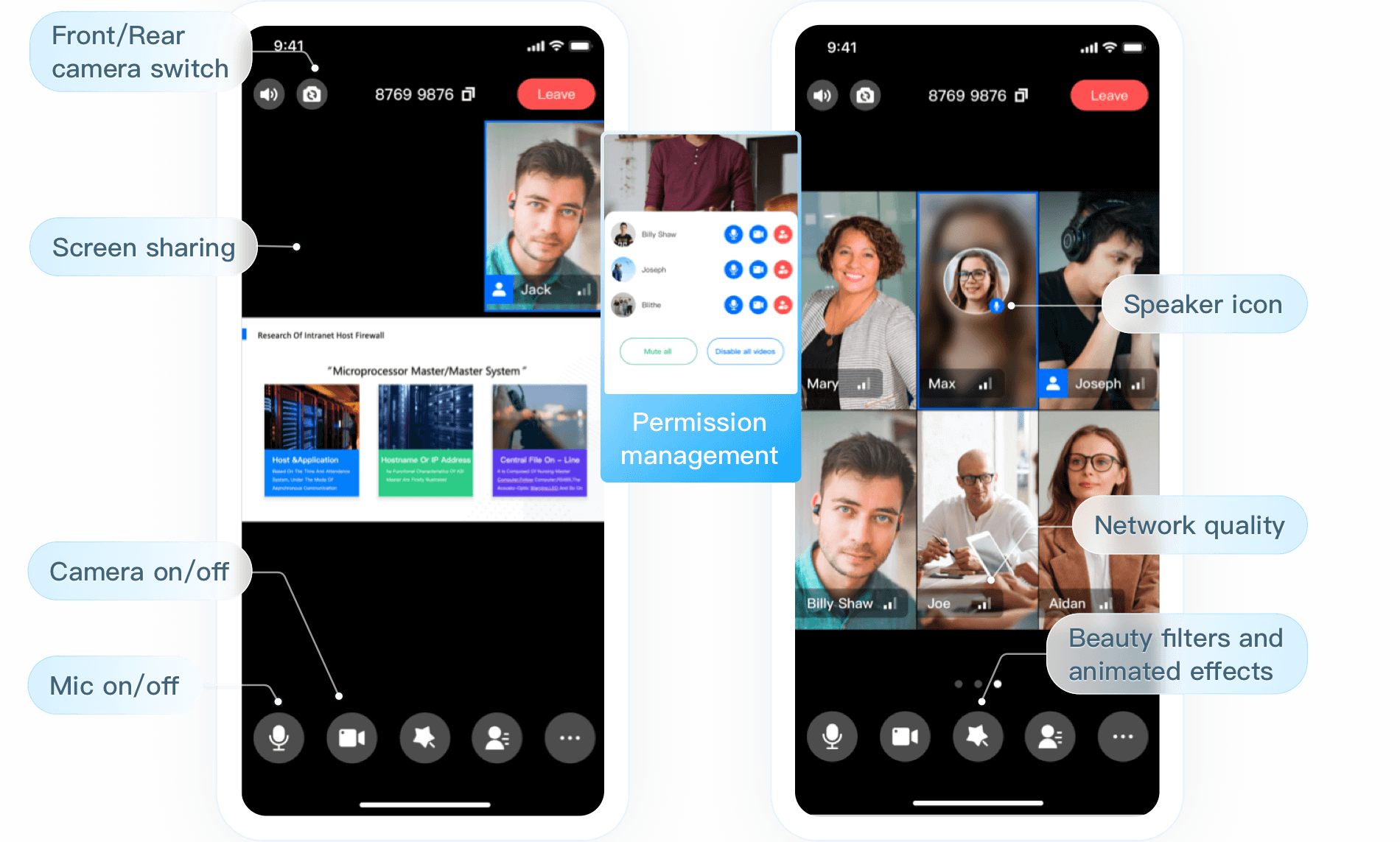

    Demo UI

    You can download and install the demo app we provide to try out TRTC’s video conferencing features, including screen sharing, beauty filters, and low-latency conferencing.

    To quickly enable the video conferencing feature, you can modify the demo app we provide and adapt it to your needs. You can also use the TUIMeeting component and customize your own UI.

    Using the Demo App’s UI

    Step 1. Create an application

    1. Log in to the TRTC console and select Development Assistance > Demo Quick Run.
    2. Enter an application name such as TestMeetingRoom and click Create.
    3. Click Next.

    Note:

    This feature uses two basic PaaS services of Tencent Cloud, namely TRTC and IM. When you activate TRTC, IM will be activated automatically. IM is a value-added service. See Pricing for its billing details.

    Step 2. Download the app source code

    Clone or download the TUIMeeting source code.

    Step 3. Configure app project files

    1. In the Modify Configuration step, select the development platform in line with the source package downloaded.

    2. Find and open TUIMeeting/Debug/GenerateTestUserSig.swift.

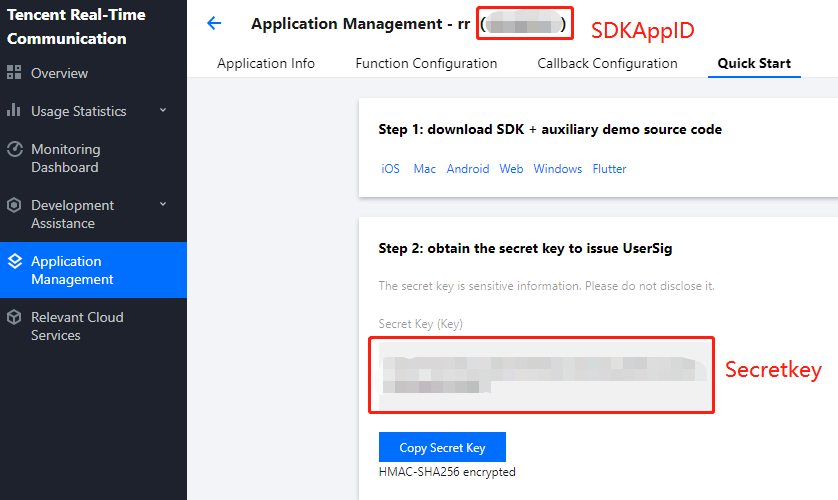

    3. Set the following parameters in GenerateTestUserSig.swift:

      • SDKAPPID: `0` by default. Set it to the actual `SDKAppID`.
      • SECRETKEY: left empty by default. Set it to the actual key.
    4. Click Next to complete the creation.

    5. After compilation, click Return to Overview Page.

    Note:

    • The method for generating UserSig described in this document involves configuring SECRETKEY in client code. In this method, SECRETKEY may be easily decompiled and reversed, and if your key is disclosed, attackers can steal your Tencent Cloud traffic. Therefore, this method is suitable only for the local execution and debugging of the demo app.
    • The correct UserSig distribution method is to integrate the calculation code of UserSig into your server and provide an application-oriented API. When UserSig is needed, your application can send a request to the business server for a dynamic UserSig. For more information, see How do I calculate UserSig on the server?.

    Step 4. Run the project

    Open the source code project TUIMeeting/TUIMeetingApp.xcworkspace with Xcode (version 11.0 or above) and click Run.

    Step 5. Modify the project source code

    The Source folder in the source code contains two subfolders: ui and model. The ui subfolder contains UI code. The table below lists the files (folders) and the UI views they represent. You can refer to it when making UI changes.

    File or Folder Description
    TRTCMeetingNewViewController.swift Implementation code for the conference creation view. This is a public CocoaPods class.
    SegmentVC Implementation code for the settings view
    TRTCBroadcastExtensionLauncher.swift Implementation code for the screen recording popup window. This is a private CocoaPods class.
    TRTCMeetingMainViewController.swift Implementation code for the room view. This is a private CocoaPods class.
    TRTCMeetingMemberViewController.swift Implementation code for the participant list view. This is a private CocoaPods class.
    TRTCMeetingMoreViewController.swift Implementation code for the settings view. This is a public CocoaPods class.

    Tryout

    Note:

    You need at least two devices to try out the demo app.

    User A

    1. Enter a username (which must be unique) and log in.
    2. Enter the conference ID and tap Join.
    3. Type a subject for the conference and tap Let’s go.

    User B

    1. Enter a username (which must be unique) and log in.
    2. Enter the ID of the conference created by user A and tap Join.

    Customizing UI

    The Source folder in the source code contains two subfolders: ui and model. The model subfolder contains the reusable open-source component TRTCMeeting. You can find the component's APIs in TRTCMeeting.h and use them to customize your own UI.

    Step 1. Integrate the SDKs

    The video conferencing component TUIMeeting depends on the TRTC SDK and IM SDK. Follow the steps below to integrate the two SDKs into your project.

    Method 1: adding dependencies via CocoaPods

    pod 'TXIMSDK_iOS'
    pod 'TXLiteAVSDK_TRTC'
    Note:

    You can view the latest version numbers of the two SDKs by visiting their GitHub pages at TRTC and IM.

    Method 2: adding dependencies through local files
    If your access to the CocoaPods repository is slow, you can download the ZIP files of the SDKs and manually integrate them into your project as instructed in the documents below.

    SDK Download Page Integration Guide
    TRTC SDK Download Integration document
    IM SDK Download Integration document

    Step 2. Configure permission requests

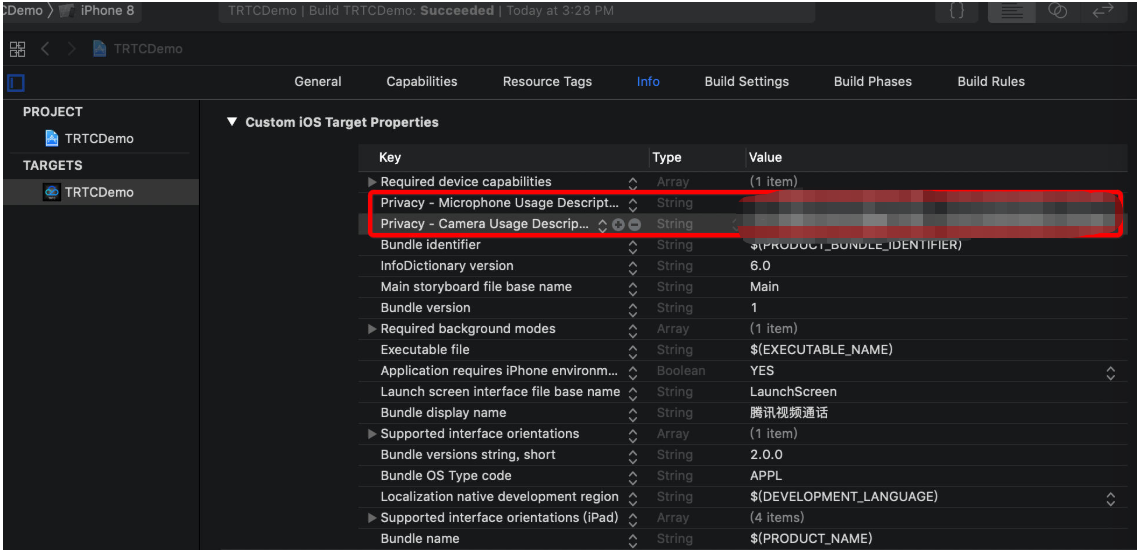

    Configure camera and mic permission requests by adding Privacy > Camera Usage Description and Privacy > Microphone Usage Description in info.plist.

    Step 3. Import the TUIMeeting component

    To import the component through CocoaPods, follow the steps below:

    1. Copy the Source, Resources, TCBeautyKit, and TXAppBasic folders and the TUIMeeting.podspec file under the demo project directory to your project directory.
    2. Add the following dependencies in your Podfile file and run the pod install command.
      pod 'TXAppBasic', :path => "TXAppBasic/"
      pod 'TCBeautyKit', :path => "TCBeautyKit/"
      pod 'TXLiteAVSDK_TRTC'
      pod 'TUIMeeting', :path => "./", :subspecs => ["TRTC"]


    Step 4. Create an instance and log in

    1. Call the sharedInstance API to create an instance of the TRTCMeeting component.
    2. Call the setDelegate API to register event callbacks of the component.
    3. Call the login API to log in to the component, and set the key parameters as described below.
      Parameter Description
      SDKAppID You can view `SDKAppID` in the TRTC console.
      userId ID of the current user, which is a string that can contain letters (a-z and A-Z), digits (0-9), hyphens (-), and underscores (_)
      userSig Tencent Cloud's proprietary security signature. To obtain one, see UserSig.
      callback Login callback. The code is `0` if login is successful.
    let userID = ProfileManager.shared().curUserID()
    let userSig = GenerateTestUserSig.genTestUserSig(userID)
    TRTCMeeting.sharedInstance().login(SDKAPPID, userId: userID, userSig: userSig, callback: { code, message in
      if code == 0 {
          //Login successful
      }
    })


    Step 5. Create a conference as an anchor

    1. After performing step 4 to log in, call setSelfProfile to set your username and profile photo as an anchor.
    2. Call setDelegate and then createMeeting to create a conference room.
    3. Call startCameraPreview to capture video and startMicrophone to capture audio.
    4. To use beauty filters, you can add beauty filter buttons to the UI and set beauty filters through getBeautyManager.
      Note:

      Only the Enterprise Edition SDK supports face changing and stickers.

    // 1. Set your username and profile photo as an anchor
    trtcMeeting.setSelfProfile(name: "A", avatarURL: "faceUrl", callback: nil)
    // 2. Create a room
    trtcMeeting.createMeeting(roomId) { (code, msg) in
    if code == 0 {
     // Room created successfully
    let localPreviewView=getRenderView(userId: selfUserId)!
    TRTCMeeting.sharedInstance().startCameraPreview(true, view: localPreviewView)
    TRTCMeeting.sharedInstance().startMicrophone();

    // Use default beauty filter parameters
    beautyPannel.resetAndApplyValues()
    return;
    }
    }


    Step 6. Join a conference as a participant

    1. After performing step 4 to log in, call setSelfProfile to set your username and profile photo as a participant.
    2. Call enterMeeting, passing in the conference room ID to enter the room.
    3. Call startCameraPreview to capture video and startMicrophone to capture audio.
    4. If another participant turns the camera on, you will receive the onUserVideoAvailable callback. Then, you can call startRemoteView, passing in the userId to play the participant’s video.

    // 1. Set your username and profile photo as a participant
    trtcMeeting.setSelfProfile(name: "A", avatarURL: "faceUrl", callback: nil)
    // 2. Implement the `enterMeeting` API
    trtcMeeting.enterMeeting(roomId) { (code, msg) in
     if code == 0{
       trtcMeeting.startCameraPreview(true, view: localPreviewView)
       trtcMeeting.startMicrophone()
     } else {
        self.view.makeToast("Failed to join the conference:" + msg!)
     }
    }

    let renderView = getRenderView(userId: userId)
    if available && renderView != nil {
     // After receiving the callback, call `startRemoteView`, passing in the `userId` to play the participant’s stream
     TRTCMeeting.sharedInstance().startRemoteView(userId, view: renderView!) { (code, message) in
      debugPrint("startRemoteView" + "\(code)" + message!)
     }
    } else {
    TRTCMeeting.sharedInstance().stopRemoteView(userId) { (code, message) in
      debugPrint("stopRemoteView" + "\(code)" + message!)
     }
    }
    // Refresh the view
    renderView?.refreshVideo(isVideoAvailable: available)


    Step 7. Share the screen

    1. Call startScreenCapture, passing in encoding parameters and the floating window during screen recording to start screen sharing. For more information, please see startScreenCapture:streamType:encParam:().
    2. Other participants in the room will receive the onUserVideoAvailable callback.
    Note:

    Screen sharing and camera capturing are mutually exclusive. Before enabling screen sharing, you need to call stopCameraPreview to disable camera capturing.

    // 1. Click the button to enable screen sharing.
    if #available(iOS 12.0, *) {
    // Camera capturing must be disabled before screen recording.
    self.setLocalVideo(isVideoAvailable: false)

    // Start screen sharing.
    let params = TRTCVideoEncParam()
    params.videoResolution = TRTCVideoResolution._1280_720
    params.videoFps = 10
    params.videoBitrate = 1800
    TRTCMeeting.sharedInstance().startScreenCapture(params)
    TRTCBroadcastExtensionLauncher.launch()
    } else {
    self.view.makeToast("The system version is below 12.0. Please upgrade.")
    }


    Step 8. Implement text chat and muting notifications

    • Call sendRoomTextMsg to send common text messages. All users in the room will receive the onRecvRoomTextMsg callback.
      IM has its default content moderation rules. Text messages that contain restricted terms will not be forwarded by the cloud.

      // Sender: send text messages
      TRTCMeeting.sharedInstance().sendRoomTextMsg("Hello Word!") { (code, message) in
      debugPrint("send result: ", code)
      }
      // Recipient: listen for text messages
      func onRecvRoomTextMsg(_ message: String?, userInfo: TRTCMeetingUserInfo) {
      debugPrint("Received a message \(String(describing: message)) from: \(String(describing: userInfo.userId))")
      }

    • Call sendRoomCustomMsg to send custom (signaling) messages. All users in the room will receive the onRecvRoomCustomMsg callback.
      Custom messages are often used to transfer custom signals, such as muting notifications and notifications about other meeting controls.

      // Sender: customize CMD to distinguish a muting notification
      // E.g., use "CMD_MUTE_AUDIO" to indicate muting notifications
      TRTCMeeting.sharedInstance().sendRoomCustomMsg("CMD_MUTE_AUDIO", message: "1") { (code, message) in
      debugPrint("send result: ", code)
      }
      // Recipient: listen for custom messages
      func onRecvRoomCustomMsg(_ cmd: String?, message: String?, userInfo: TRTCMeetingUserInfo) {
      if cmd == "CMD_MUTE_AUDIO" {
       debugPrint("Received a muting notification: \(String(describing: message)) from: \(String(describing: userInfo.userId))")
       TRTCMeeting.sharedInstance().muteLocalAudio(message == "1")
      }
      }
