Pre-stream Setup | Co-Host Interaction | Audience Interaction | Live Room Management |
![]() | ![]() | ![]() | ![]() |

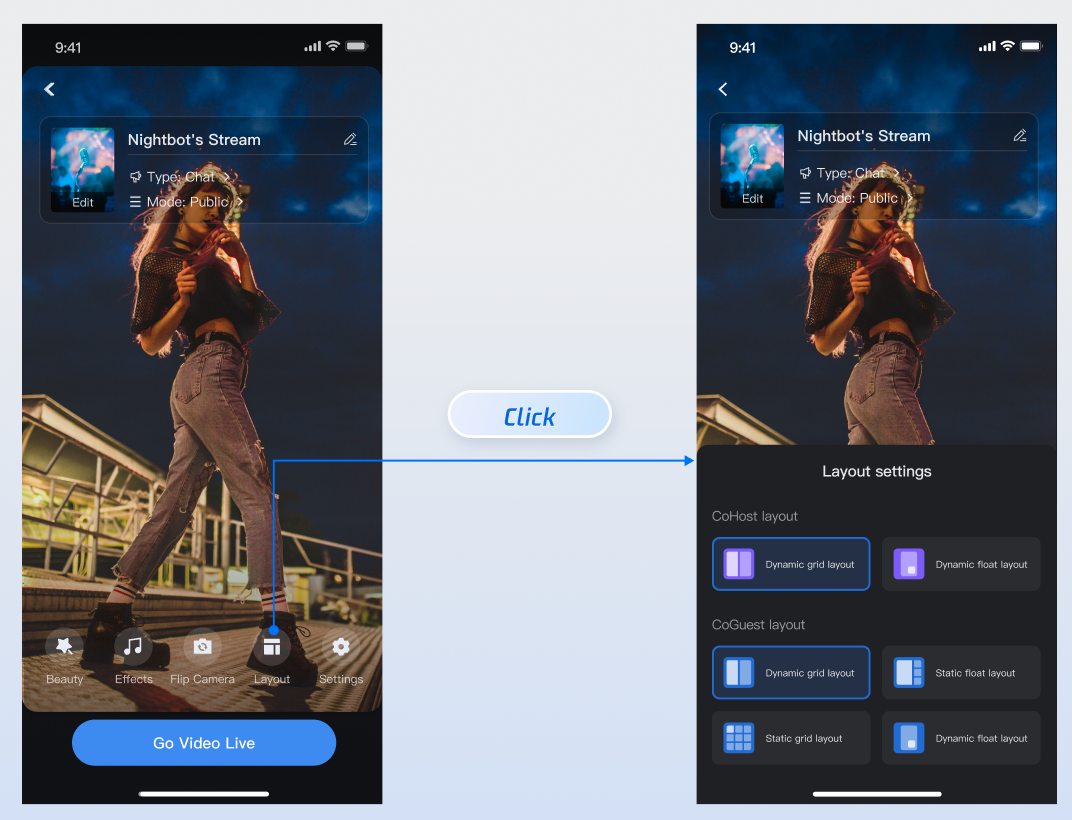

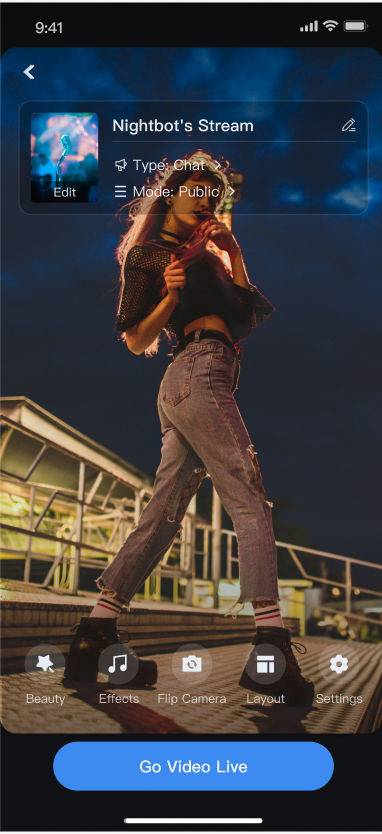

TUILiveKit trial version or activate the paid version.AnchorPrepareView component provides built-in camera preview, audio and layout settings, and other configuration options. Instantiate and display AnchorPrepareView as shown below:import android.os.Bundleimport androidx.appcompat.app.AppCompatActivityimport com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareViewimport com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareViewListenerclass AnchorActivity : AppCompatActivity() {private val TAG = "AnchorActivity"lateinit var anchorPrepareView: AnchorPrepareViewprivate val anchorPrepareViewListener = object : AnchorPrepareViewListener {override fun onClickStartButton() {// Click the "Start Live Stream" button on the preview screen to trigger}override fun onClickBackButton() {// Triggered by clicking the back button in the preview interfacefinishAndRemoveTask()}}override fun onCreate(savedInstanceState: Bundle?) {super.onCreate(savedInstanceState)// 1. Create and initialize AnchorPrepareViewanchorPrepareView = AnchorPrepareView(this)anchorPrepareView.init("live_1236666", null)anchorPrepareView.addAnchorPrepareViewListener(anchorPrepareViewListener)// 2. Add AnchorPrepareView to the UIsetContentView(anchorPrepareView)}}

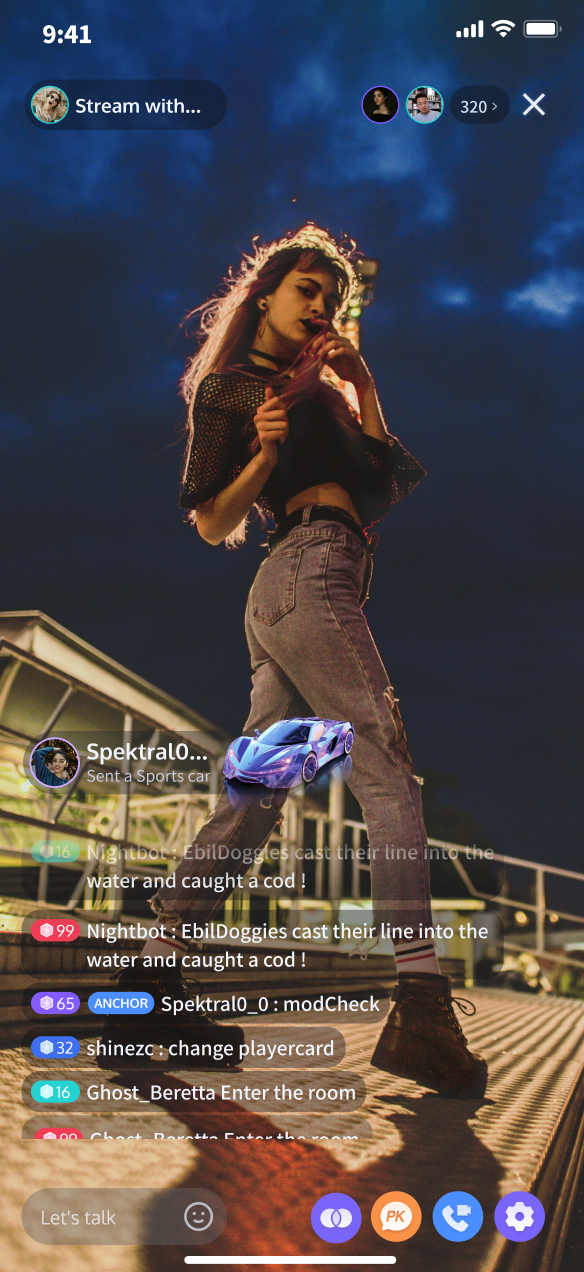

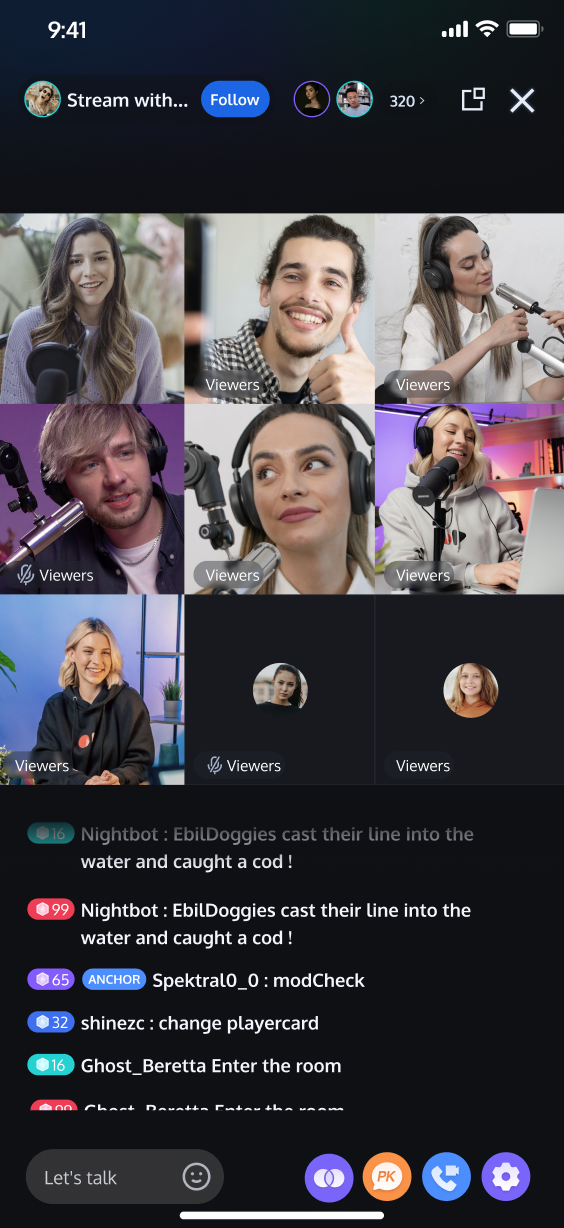

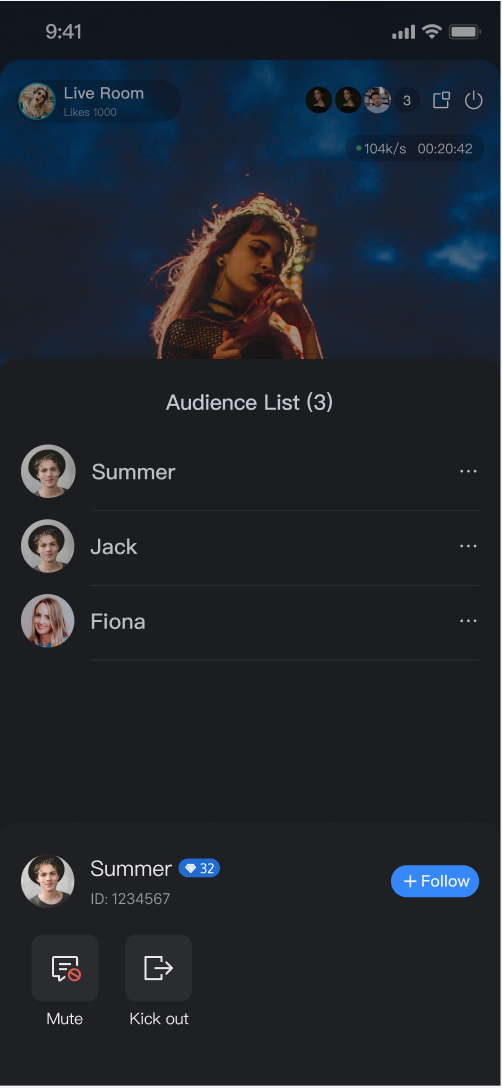

AnchorView component includes audio/video streaming, audience co-hosting, live interaction, and live room management. Instantiate and display AnchorView as shown below:import android.os.Bundleimport androidx.appcompat.app.AppCompatActivityimport com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareViewimport com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareViewListenerimport com.trtc.uikit.livekit.features.anchorprepare.LiveStreamPrivacyStatusimport com.trtc.uikit.livekit.features.anchorview.AnchorStateimport com.trtc.uikit.livekit.features.anchorview.AnchorViewimport com.trtc.uikit.livekit.features.anchorview.AnchorViewListenerimport com.trtc.uikit.livekit.features.anchorview.RoomBehaviorimport io.trtc.tuikit.atomicxcore.api.live.LiveInfoimport io.trtc.tuikit.atomicxcore.api.live.SeatLayoutTemplateclass AnchorActivity : AppCompatActivity() {private val TAG = "AnchorActivity"lateinit var anchorPrepareView: AnchorPrepareViewprivate val anchorPrepareViewListener = object : AnchorPrepareViewListener {override fun onClickStartButton() {// Complete the switch from the preparation page to the streamer's live broadcast page.initAnchorView()}override fun onClickBackButton() {finishAndRemoveTask()}}override fun onCreate(savedInstanceState: Bundle?) {super.onCreate(savedInstanceState)// 1. Create and initialize AnchorPrepareViewanchorPrepareView = AnchorPrepareView(this)anchorPrepareView.init("live_1236666", null)anchorPrepareView.addAnchorPrepareViewListener(anchorPrepareViewListener)// 2. Add AnchorPrepareView to the UIsetContentView(anchorPrepareView)}val anchorViewListener = object : AnchorViewListener {override fun onEndLiving(state: AnchorState) {finishAndRemoveTask()}override fun onClickFloatWindow() {}}fun initAnchorView() {// 1. Create AnchorViewval anchorView = AnchorView(this)// 2. Initialize AnchorView, where liveInfo is the live stream information and anchorPrepareView is your preparation page before starting your broadcast.val liveInfo = LiveInfo()liveInfo.liveID = "live_1236666"liveInfo.liveName = anchorPrepareView.getState()?.roomName?.value ?: ""liveInfo.isPublicVisible = anchorPrepareView.getState()?.liveMode?.value == LiveStreamPrivacyStatus.PUBLICliveInfo.coverURL = anchorPrepareView.getState()?.coverURL?.value ?: ""liveInfo.seatTemplate = SeatLayoutTemplate.VideoDynamicGrid9Seats// Entering a room:// RoomBehavior.CREATE_ROOM: The streamer creates a room// RoomBehavior.ENTER_ROOM: The streamer enters a live stream room created by the server-side REST APIanchorView.init(liveInfo, anchorPrepareView.getCoreView(), RoomBehavior.CREATE_ROOM, null)anchorView.addAnchorViewListener(anchorViewListener)// 3. Add AnchorView to the pagesetContentView(anchorView)}}

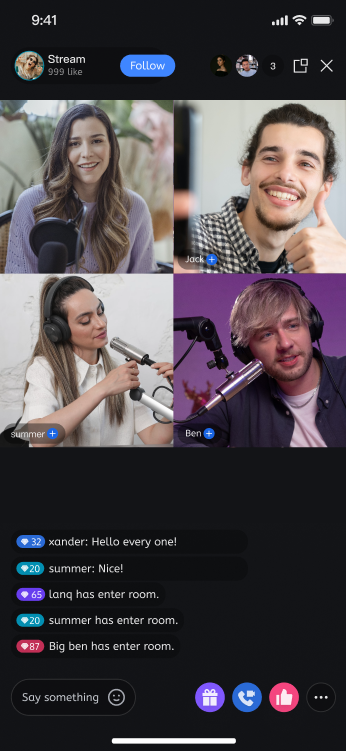

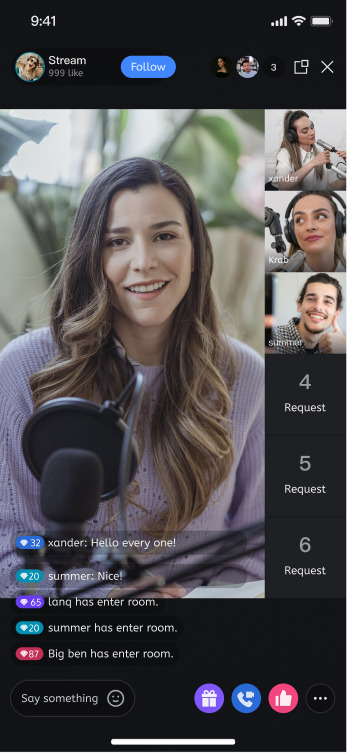

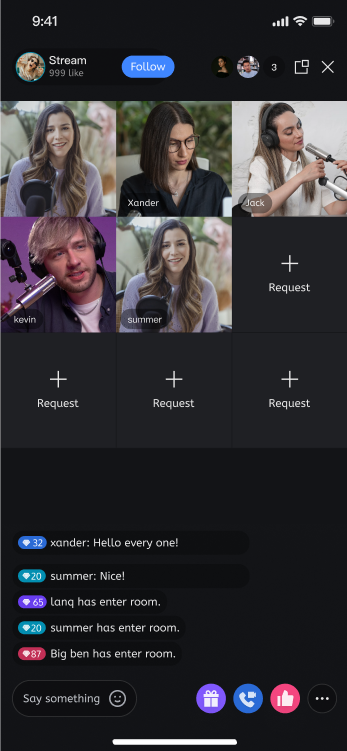

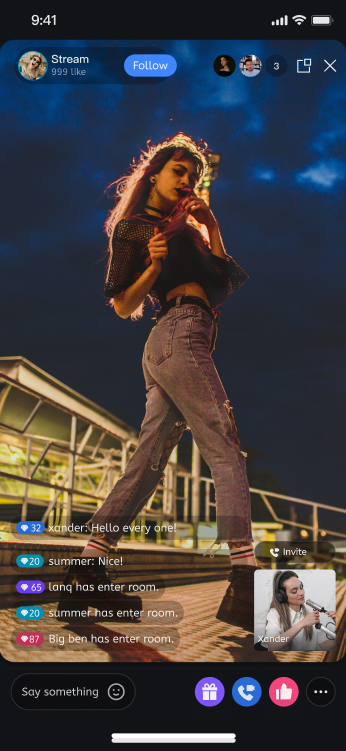

Layout Type | Dynamic Grid Layout | Floating Window Layout | Fixed Grid Layout | Fixed Floating Window Layout |
Template ID | VideoDynamicGrid9Seats | VideoDynamicFloat7Seats | VideoFixedGrid9Seats | VideoFixedFloat7Seats |
Description | Default layout. Grid size adjusts dynamically based on the number of co-hosts. | Co-hosts are displayed as floating windows. | Fixed number of co-hosts, each guest occupies a dedicated grid slot. | Fixed number of co-hosts, guests shown in fixed floating windows. |
Preview | ![]() | ![]() | ![]() | ![]() |
prepareView instance created in Step 3 to control the visibility of the operation area or individual features on the preparation page.import android.os.Bundleimport androidx.appcompat.app.AppCompatActivityimport com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareViewclass AnchorActivity : AppCompatActivity() {lateinit var anchorPrepareView: AnchorPrepareViewoverride fun onCreate(savedInstanceState: Bundle?) {super.onCreate(savedInstanceState)anchorPrepareView = AnchorPrepareView(this)anchorPrepareView.init("live_1235858", null)// 1. Customize the feature area - for example: hide the entire feature menuanchorPrepareView.disableFeatureMenu(true)setContentView(anchorPrepareView)}}
API | Description |
disableFeatureMenu(true) | Hide the entire feature menu |
disableMenuBeautyButton(true) | Hide the beauty filter button |
disableMenuAudioEffectButton(true) | Hide the audio effect button |
disableMenuSwitchCameraButton(true) | Hide the camera switch button |

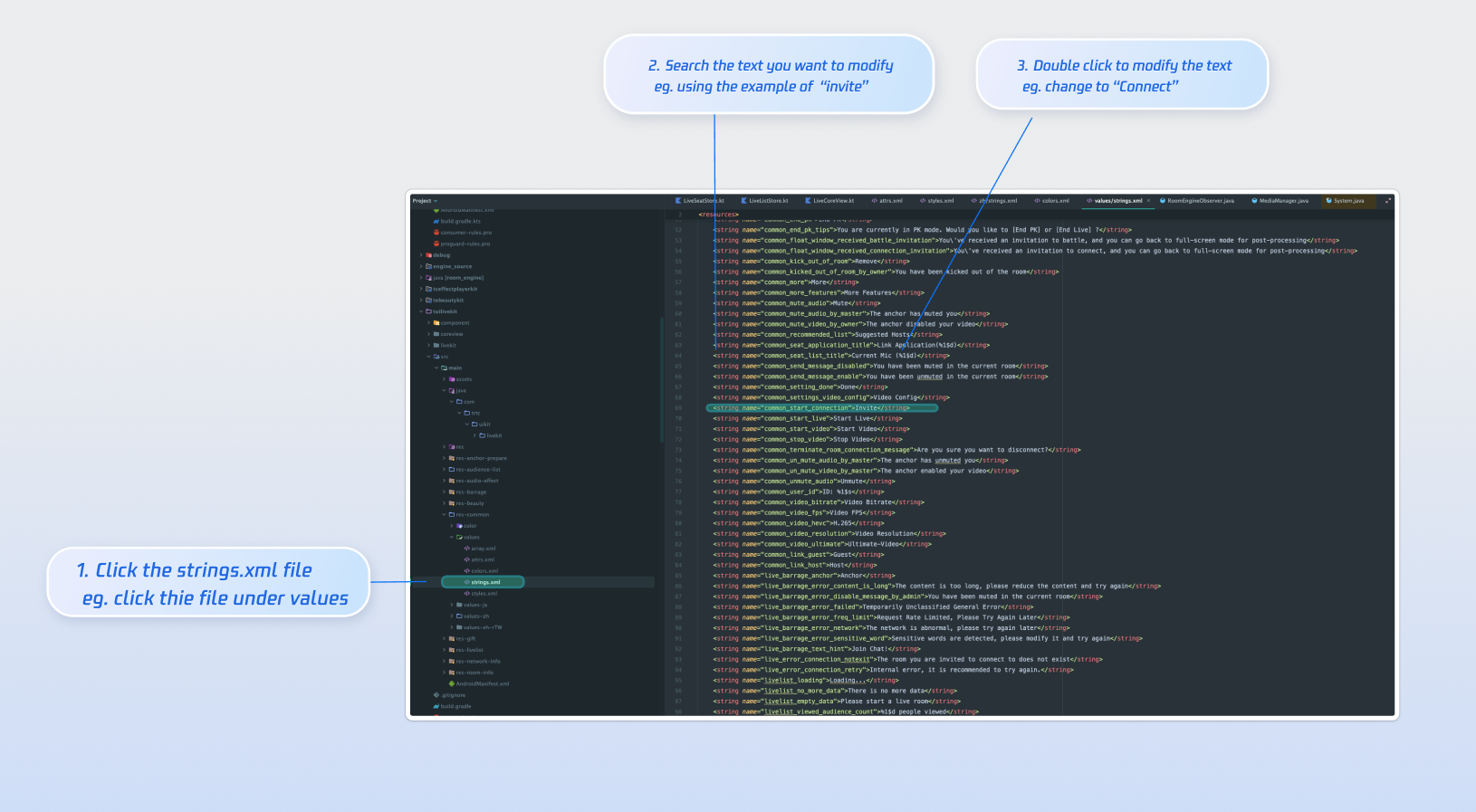

AnchorView and add custom business modules.AnchorView.XML resource files to manage UI text. Modify any required text directly in the XML files.

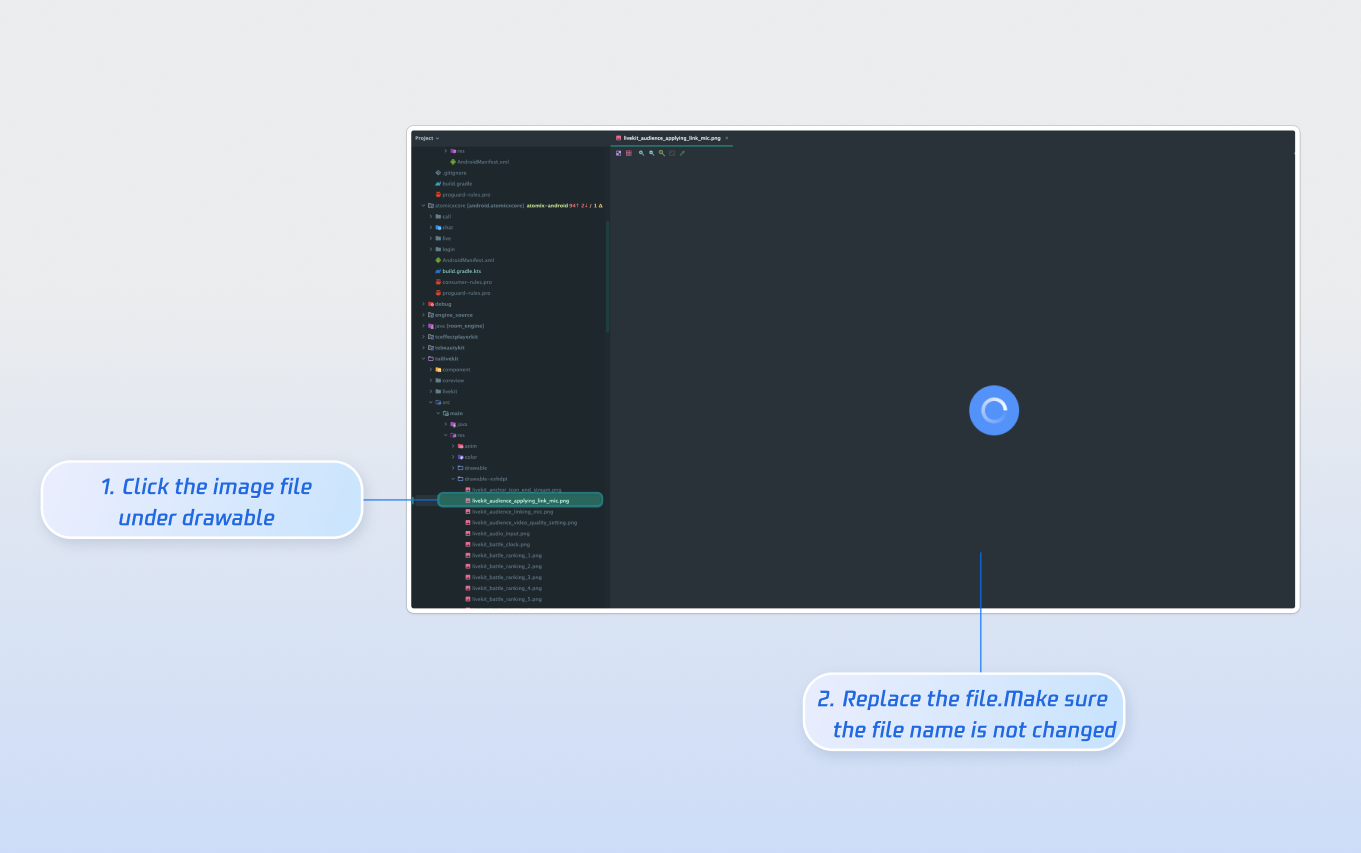

drawable resource folder. To update interface icons, replace the resource files with your custom icons—ensure file names remain unchanged.
Feature | Description | Integration Guide |
Audience Viewing | Allows audience members to join the host’s live room to watch the stream. Supports audience co-hosting, live room info, online audience list, live comments, and more. | |
Live Stream List | Displays the live stream list page and features, including the stream list and room details. | |
Gift System | Supports custom gift asset configuration, billing integration, PK mode interaction, and more. |
