LogListener service logs are used to record the operation, collection, and monitoring activities of LogListener, and you can configure visualized graphs to display such log data.
Default configuration
Default Configuration Item
Description
Log Topic
When the LogListener service logs feature is enabled for machine groups in a certain region for the first time, a cls_service_logging logset is automatically created in this region. The current and future LogListener service logs generated by all machine groups with this feature enabled in this region are saved to the following 3 log topics:
loglistener_status: the heartbeat status logs for the corresponding LogListener.
loglistener_alarm: logs corresponding to LogListener's monitoring by collection metric/error type .
loglistener_business: logs corresponding to LogListener's collection operations, with each log corresponds to one request.
Log Storage Duration
The default storage duration is 7 days, and the value cannot be modified.
Index
By default, the key-value index feature is enabled for all collected log data. The index configurations cannot be modified.
Dashboard
Default generation CLS Log Collection Status Monitoring Preset Dashboard.
Note:
LogListener service logs are only about collection and monitoring activities of LogListener, and do not support writing into other kinds of data.
Log data generated by this feature does not incur costs.
cls_service_logging is a unified logset for LogListener service logs.
Prerequisites
Currently, the service logs feature can be enabled only for Linux machine groups, and service logs can be reported only when the machine group is associated with a collection configuration. If a machine group is not associated with any collection configuration, no service logs will be reported.
Use Cases
Viewing LogListener status
When the LogListener service logs are enabled, you can view LogListener running status and collection statistics. You can view the number of active LogListeners, LogListener status distribution and other statistical metrics on the service_log_dashboard dashboard.
Log collection monitoring configuration
After enabling the Loglistener service log function, you can configure monitoring metrics of collection end by metric/error type, such as:
MEM, CPU, collection speed, collection latency, or other metrics.
The number of parsing errors of LogListener.
File-level monitoring
With the LogListener service logs are enabled, you can view the monitoring logs of files and directories. For example:
All collection statistics files of one IP
The amount of logs collected under a certain path on a certain IP, such as app1 application logs located in /var/log/app1/. You can get the statistics of logs collected under this path.
The collection statistics of a topic.
Prerequisites
Machine groups support collecting monitoring service logs only in LogListener version 2.5.4 or later. You can upgrade to the latest version.

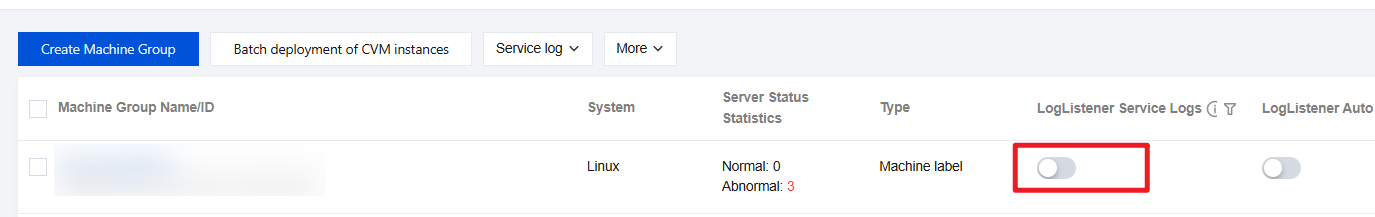

2. In the left sidebar, click Machine Group Management to view the machine group list.
3. Select the target machine group, and click
to disable the LogListener service logs.
Note:
After this feature is disabled, the log data saved in the logset cls_service_logging will not be deleted automatically. You can manually delete the logset where the service logs are saved.
Dashboard of Service Logs
After you enable LogListener service logs, CLS automatically generates a preconfigured dashboard for monitoring log collection status, which displays LogListener collection statistics.
CLS Log Collection Status Monitoring Dashboard
You can find the dashboard named CLS log collection monitoring dashboard under the Preset dashboard tag on the Dashboard page in the CLS console.
Click the dashboard name to view LogListener collection statistics, including metrics such as LogListener status display, LogListener parsing failure rate, and LogListener sending success rate.
Log Field Description
LogListener Status Logs (loglistener_status)
The parameters of the log topic loglistener_status are detailed as follows:
Parameter
Description
InstanceId
The unique identifier of LogListener. You can view its specific value in the etc/loglistener.conf file under the LogListener installation directory, or in the machine group details.
IP
Machine group IP
Label
An array of machine IDs
Version
Version number
MemoryUsed
Memory utilization of LogListener
MemMax
Memory utilization threshold on this machine set by the Agent
CpuUsage
LogListener CPU utilization
Status
LogListener running status. The value description is as follows:
1: Heartbeat normal.
10: Authentication failed.
11: Log topic does not exist.
13: Log upload request frequency exceeded.
20: CPU utilization exceeded the limit.
21: Number of target collection files exceeded the limit.
22: Number of target collection directories exceeded the limit.
23: Memory usage exceeded the limit.
TotalSendLogSize
Size of logs sent
SendSuccessLogSize
Size of successfully sent logs
SendFailureLogSize
Size of sending-failed logs
SendTimeoutLogSize
Size of logs with sending timed out
TotalParseLogCount
Total number of logs parsed
ParseFailureLogCount
Number of parsing-failed logs
TotalSendLogCount
Number of logs sent
SendSuccessLogCount
Number of successful sent logs
SendFailureLogCount
Number of sending-failed logs
SendTimeoutLogCount
Number of logs with sending timed out
TotalSendReqs
Total number of requests sent
SendSuccessReqs
Number of successful sent requests
SendFailureReqs
The number of sending-failed requests
SendTimeoutReqs
Number of requests with sending timed out
TotalFinishRsps
Total number of RSP files received
TotalSuccessFromStart
Total number of successfully sent requests since LogListener was enabled
AvgReqSize
Average request packet size
SendAvgCost
Average sending time
AvailConnNum
Number of available connections
QueueSize
The size of queued requests
LogListener Alarm Logs (loglistener_alarm)
The parameters of the log topic loglistener_alarm are detailed as follows:
Monitoring Metric
Description
InstanceId
LogListener unique identifier
Label
An array of machine IDs
IP
Machine group IP
Version
LogListener version
AlarmType.count
Statistics of alarm types
AlarmType.example
Sample alarm type
AlarmType:
alarm type
type ID
Description
UnknownError
0
Initializing the alarm type.
UnknownError
1
Failed to parse.
CredInvalid
2
Failed to verify.
SendFailure
3
Failed to send.
RunException
4
Abnormal LogListener running.
MemLimited
5
Reached the memory utilization threshold.
FileProcException
6
Exceptions occurred in file processing.
FilePosGetError
7
Failed to get the file publishing info.
HostIpException
8
Exceptions occurred in the server IP thread.
StatException
9
Failed to get the process info.
UpdateException
10
Exceptions occurred in the CLS modification feature.
The parameters of the log topic loglistener_business are detailed as follows:
Parameter
Description
InstanceId
LogListener unique identifier
Label
An array of machine IDs
IP
Machine group IP
Version
LogListener version
TopicId
The target topic of the collected file
FileName
File path name
RealPath
Actual file path
FileInode
File node
FileSize
File size
LastReadTime
The most recent read time of the file
ParseFailLines
Number of parsing-failed logs within a time window
ParseFailSize
Size of parsing-failed logs within a time window
ParseSuccessLines
Number of logs successful parsed within a time window
ParseSuccessSize
Size of logs successful parsed within a time window
ReadOffset
Offset of file reading in bytes
TruncateSize
Size of truncated log files within a time window
ReadAvgDelay
Average time delay for reads within a time window
TimeFormatFailuresLines
Number of timestamp matching errors within a time window
SendSuccessSize
Size of logs successful sent within a time window
SendSuccessCount
Number of logs successful sent within a time window
SendFailureSize
Size of sending-failed logs within a time window
SendFailureCount
Number of sending-failed logs within a time window
SendTimeoutSize
Size of logs with sending timed out within a time window
SendTimeoutCount
Number of logs with sending timed out within a time window
DroppedLogSize
Size of dropped logs within a time window
DroppedLogCount
Number of dropped logs in a time window
ProcessBlock
Whether the current file has triggered collection blocking in a statistical period (collection blocking will be triggered if the sliding window of a file has not moved for 10 minutes)
