Integration Overview (iOS)

Download
Mode fokus
Ukuran font
Terakhir diperbarui: 2026-06-15 15:14:31
This document provides an integration guide for the core features of AtomicXCore, enabling developers to rapidly build essential capabilities for large-scale webinars, company-wide meetings, or online education sessions with Atomicx. You have complete flexibility to customize the UI, allowing you to focus on business logic and user experience optimization.
What’s the difference between a standard conference and a webinar?
Standard Conference: Ideal for small to medium collaborative environments. All participants have equal audio/video privileges, with interactive features such as screen sharing and member management.
Webinar: Designed for large-scale live presentations, supports unlimited concurrent audience entry. Audience members can use the "Raise Hand" feature to request guest access and participate in discussions. The system is optimized for high-concurrency chat, supporting tens of thousands of participants and professional presentation needs.

Feature Overview

Host
Guest
Audience

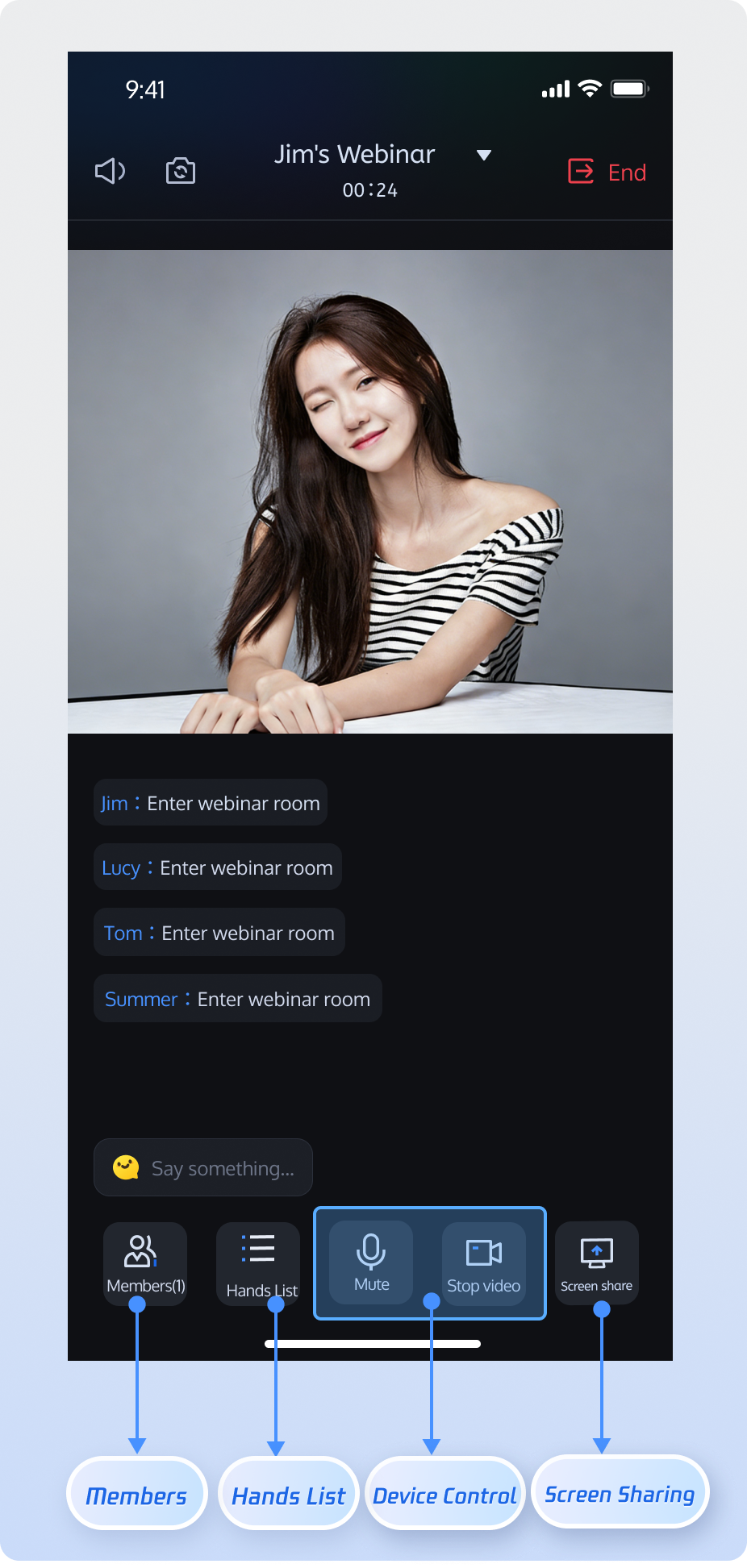

Host can start high-definition audio/video streaming, share screens, and manage participants.

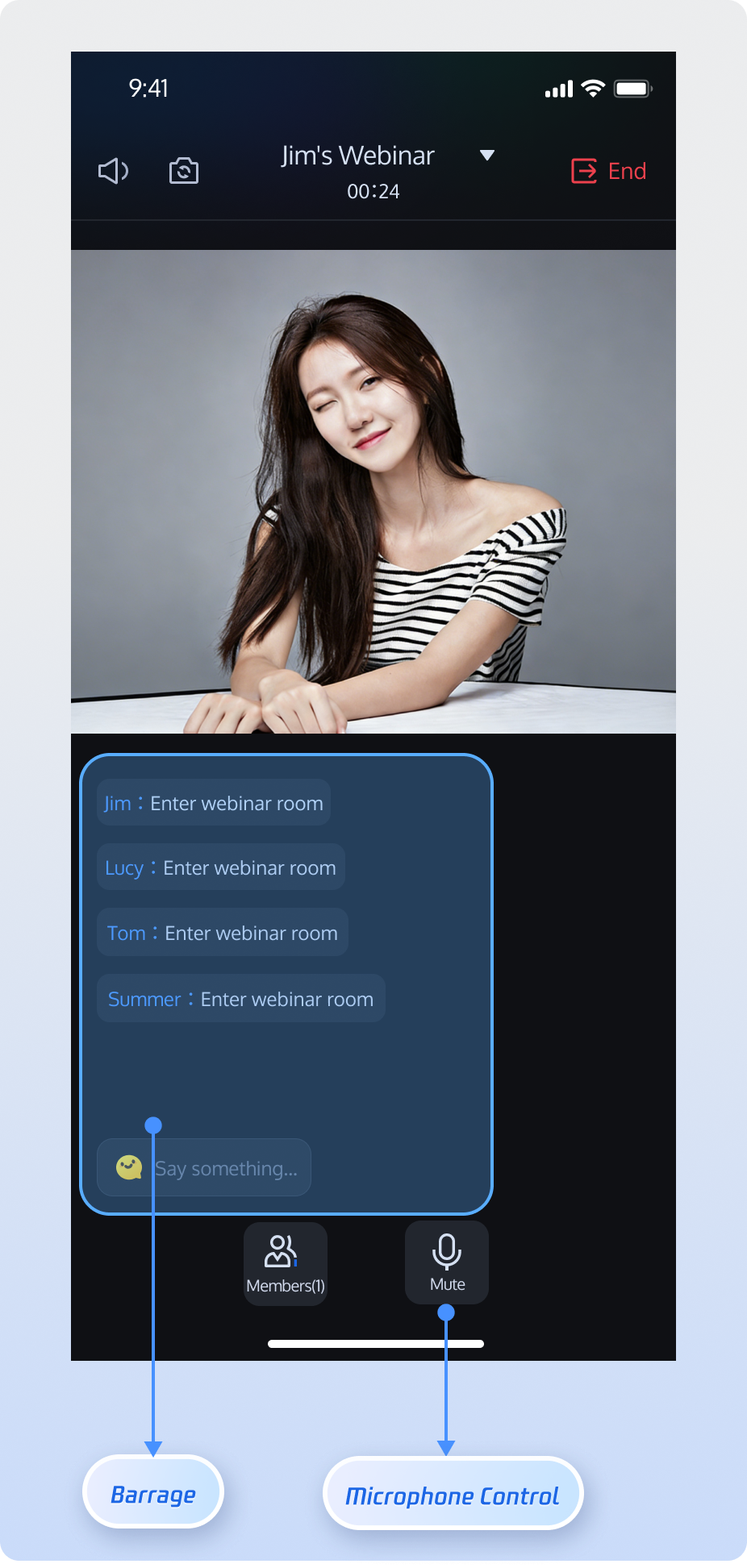

Guest can enable their microphone for real-time voice discussions and sharing.

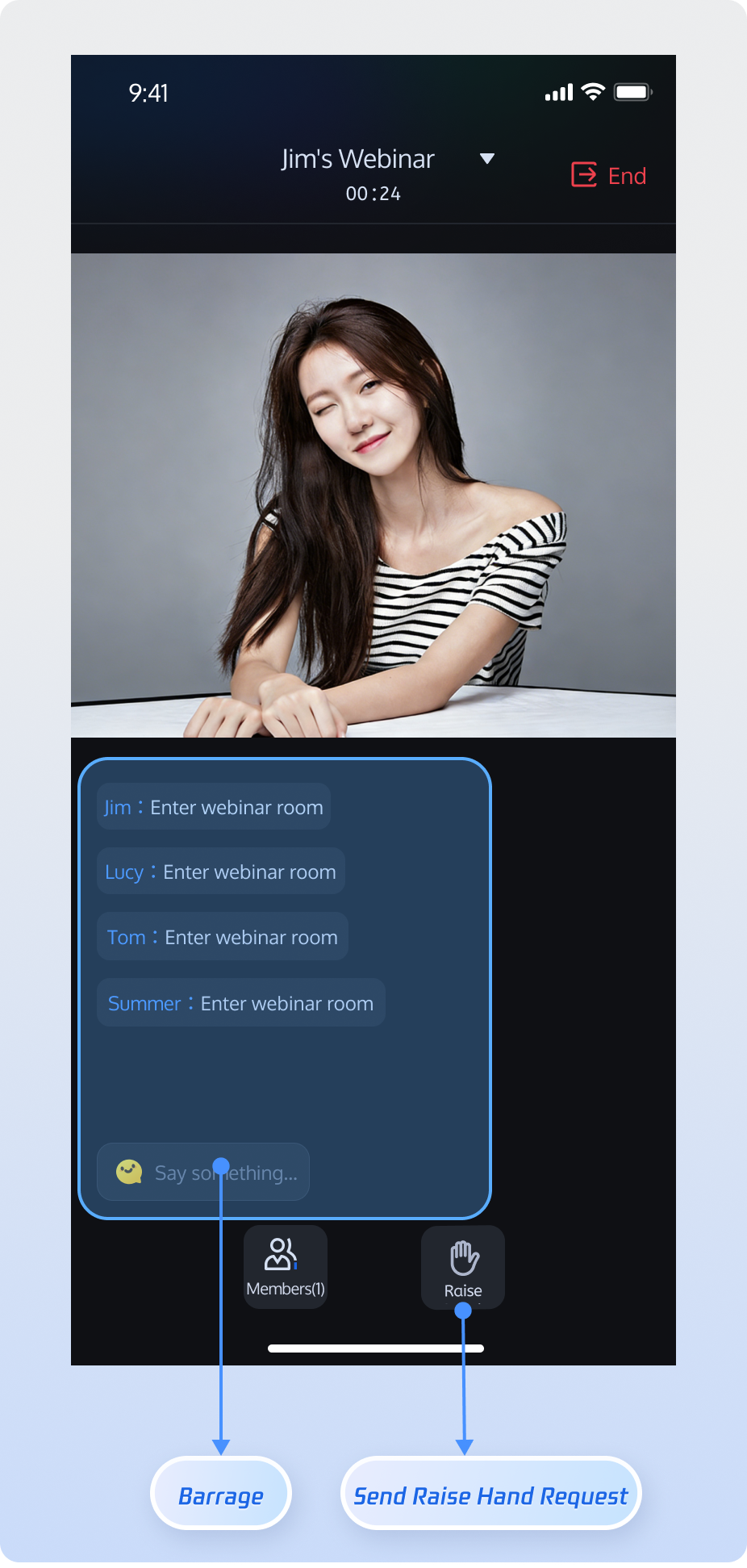

Supports unlimited concurrent audience entry, ultra-low latency viewing, and high-frequency chat. Audience can use "Raise Hand" to request guest access.










Core Features

AtomicXCore provides all the capabilities you need to build a professional webinar solution:
Dual-role system: Room members are classified as Guest (can speak via audio/video) and Audience (view-only). The host can dynamically invite audience members to participate or remove guests from the stage.
Screen sharing: Host can share their screen with all participants in real time to assist presentations and facilitate communication.
Member and permission management: Includes guest list, audience list, admin controls, mute/video-off, and other moderation tools.
Large-scale message interaction: Optimized message throttling for rooms with tens of thousands of participants, ensuring stable real-time chat and live comments.
Core modules of AtomicXCore include:
RoomStore: Handles room management tasks, including create, join, and lifecycle operations.
RoomParticipantStore: Manages room participants, including admin settings, guest/audience management, removing participants, device control, and more.

Preparation

Step 1: Activate the Service

Refer to Activate the Service to claim the TUILiveKit trial version or activate the official TUILiveKit version.
Note:
Webinar functionality is built on live streaming capabilities. Make sure you have claimed the TUILiveKit trial version or activated the official TUILiveKit version for full functionality.

Step 2: Environment Requirements

Xcode: Requires Xcode 15 or later.
iOS: Supports devices running iOS 14.0 or later.
CocoaPods: CocoaPods must be installed. If not, see CocoaPods Official Installation Guide, or follow these steps:
Install CocoaPods via gem: Run sudo gem install cocoapods in your terminal.
Tip:
You may be prompted to enter your administrator password during sudo gem install cocoapods. Enter your password as instructed

Step 3: Integrate AtomicXCore SDK

1. Add Pod Dependency:
If you already have a Podfile
If you do not have a Podfile
Add pod 'AtomicXCore' to your project's Podfile:
target 'YourProjectTarget' do
# Other existing Pod dependencies...
# Add pod 'AtomicXCore' dependency
pod 'AtomicXCore'
end
Navigate to your .xcodeproj directory using cd, then run pod init to create a Podfile. Add pod 'AtomicXCore' as follows:
# If your project directory is /Users/yourusername/Projects/YourProject

# 1. cd to your .xcodeproj directory
cd /Users/yourusername/Projects/YourProject

# 2. Run pod init. After this command, a Podfile will be generated in your project directory.
pod init

# 3. Add pod 'AtomicXCore' dependency to the generated Podfile
target 'YourProjectTarget' do
# Add pod 'AtomicXCore' dependency
pod 'AtomicXCore'
end
2. Install Components:
In the terminal, cd to the directory containing your Podfile, then run:
pod install

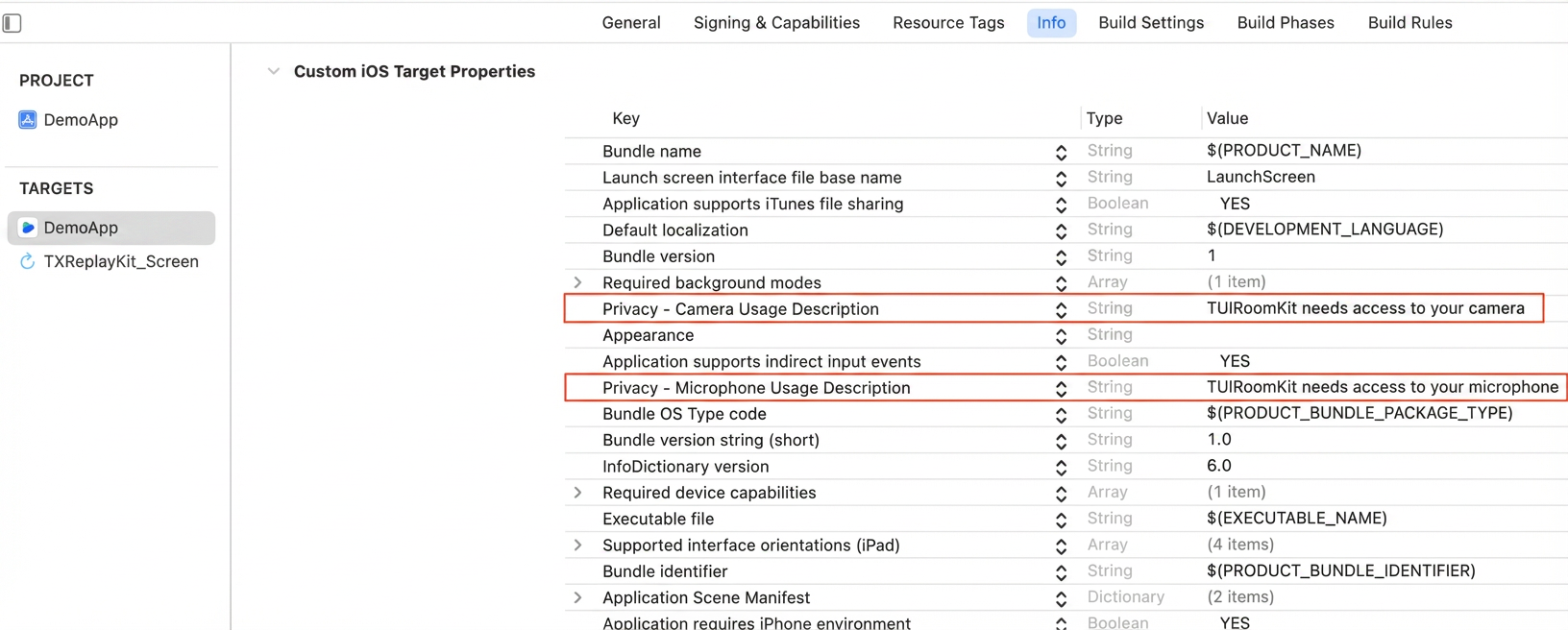

3. Configure App Permissions: Add camera and microphone usage descriptions to your app's Info.plist file.
<key>NSCameraUsageDescription</key>
<string>TUIRoomKit requires access to your camera</string>
<key>NSMicrophoneUsageDescription</key>
<string>TUIRoomKit requires access to your microphone</string>




Step 4: Implement Login Logic

Call LoginStore.shared.login in your project to complete login. This is required before using any features of AtomicXCore.
Important:
Call LoginStore.shared.login only after your application's own user account login succeeds to ensure proper login flow.
import AtomicXCore

func login() {
LoginStore.shared.login(sdkAppID: 1400000001, // Replace with your project's sdkAppID
userID: "test_001", // Replace with your project's userID
userSig: "xxxxxxxxxxx") { result in // Replace with your project's userSig
switch result {
case .success(let info):
debugPrint("login success")
case .failure(let error):
debugPrint("login failed code:\\(error.code), message:\\(error.message)")
}
}
}
Login API Parameter Description:
Parameter
Type
Description
sdkAppID
Int
userID
String
Unique ID for the current user. Use only English letters, numbers, hyphens, and underscores. Avoid simple IDs like 1 or 123 to prevent multi-device login conflicts.
userSig
String
Authentication token for Tencent Cloud.
For development, generate with GenerateTestUserSig.genTestSig or the UserSig Helper Tool.
For production, always generate UserSig server-side to protect your SecretKey. See Server-side UserSig Generation and How to Calculate and Use UserSig.

Setting Up a Webinar Room

Step 1: Create and Join a Webinar Room

Follow the steps below to set up a webinar room quickly.



Tip:
For sample code on creating and joining a room as host, see the TUIRoomKit open-source project, specifically RoomMainViewController.swift and RoomMainView.swift.

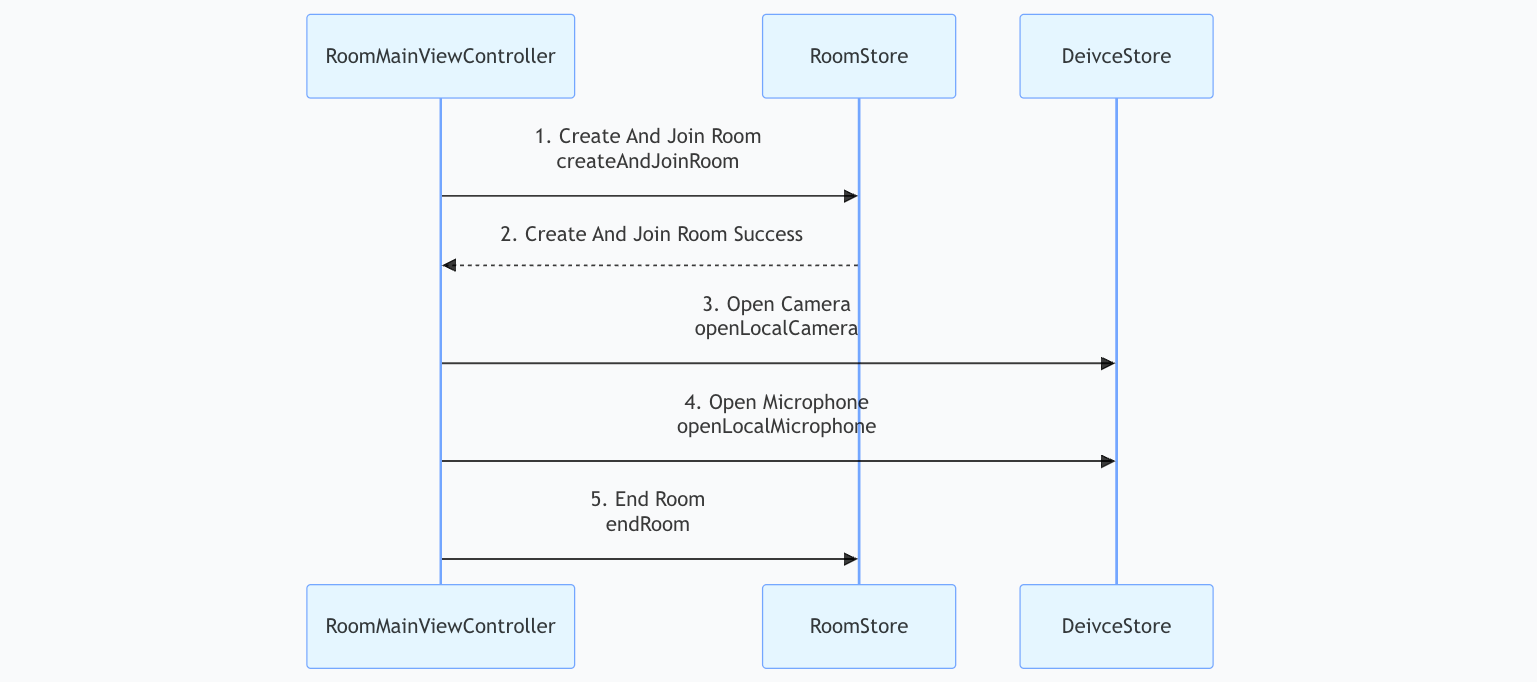

1. Create and Join Room

Implementation Steps:
1.1 Configure room parameters: Initialize CreateRoomOptions to set the room name and configuration.
1.2 Create and join room: Call RoomStore.createAndJoinRoom to perform the operation.
Sample Code:
import UIKit
import AtomicXCore

// RoomMainViewController represents the main room view controller
class RoomMainViewController: UIViewController {
private var roomID = "webinar_123456"

// Automatically create and join the room on initialization
public init() {
super.init(nibName: nil, bundle: nil)
createAndJoinRoom(roomID: roomID, roomType: .webinar)
}

required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}

private func createAndJoinRoom(roomID: String, roomType: RoomType) {
// 1. Configure room parameters
var options = CreateRoomOptions()
options.roomName = "My Webinar" // Display name for the room
options.password = "" // Room entry password (leave empty if not needed)

// 2. Set initial room permissions
options.isAllCameraDisabled = false
options.isAllMessageDisabled = false
options.isAllMicrophoneDisabled = false
options.isAllScreenShareDisabled = false

// 3. Create and join the room
RoomStore.shared.createAndJoinRoom(roomID: roomID, roomType: roomType, options: options) { [weak self] result in
guard let self = self else { return }
switch result {
case .success():
print("Successfully created and joined webinar room")
case .failure(let error):
print("Failed to create and join webinar room [Error Code: \\(error.code)]: \\(error.message)")
}
}
}
}
createAndJoinRoom API Parameter Details:
Parameter Name
Type
Required
Description
roomID
String
Yes
Unique room identifier.
0-48 bytes.
Use numbers, English letters, underscores (_), hyphens (-). Avoid spaces and Chinese characters.
roomType
RoomType
Yes
Room type:
standard: Standard room.
webinar: Large webinar room.
Use webinar for webinar scenarios.
options
CreateRoomOptions
Yes
Room configuration object.
See CreateRoomOptions Struct documentation.
completion
CompletionClosure
No
Completion callback. Returns error code and message if creation fails.

CreateRoomOptions Struct:

Parameter Name
Type
Required
Description
roomName
String
No
Room name (optional, defaults to empty).
0-60 bytes.
Supports English/Chinese, numbers, special characters.
password
String
No
Room password (empty means no password).
0-32 bytes.
Use 4-8 digit numbers for easy input. Avoid plain-text sensitive data. Passwords not supported for webinars; leave empty.
isAllMicrophoneDisabled
Bool
No
Disable microphones for all. Only host/admin can open mic. Guests are muted by default.
true: Disabled.
false: Enabled (default).
isAllCameraDisabled
Bool
No
Disable cameras for all. Only host/admin can open camera. Guests are video-off by default.
true: Disabled.
false: Enabled (default).
isAllScreenShareDisabled
Bool
No
Disable screen sharing for all. Only host/admin can share screen.
true: Disabled.
false: Enabled (default).
isAllMessageDisabled
Bool
No
Disable chat for all (mute). Members cannot send messages.
true: Disabled.
false: Enabled (default).

2. Host/Guest Media Device Capture

In webinar scenarios, permissions depend on role:
Host: Can capture and stream audio/video, start screen sharing.
Guest: Can capture and stream audio for real-time discussion.
Audience: View-only; cannot capture media.
After entering the room, call DeviceStore.openLocalCamera and DeviceStore.openLocalMicrophone to enable local capture. Use startScreenShare to begin screen sharing (camera must be off when screen sharing starts).
import UIKit
import AtomicXCore

// RoomMainViewController represents the main room view controller
class RoomMainViewController: UIViewController {
private let roomID: String
private static let kAppGroup = "group.com.RPLiveStreamRelease"

public init(roomID: String) {
self.roomID = roomID
super.init(nibName: nil, bundle: nil)
openDevices()
}

required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}

private func openDevices() {
// 1. Enable front camera
DeviceStore.shared.openLocalCamera(isFront: true, completion: nil)
// 2. Enable microphone
DeviceStore.shared.openLocalMicrophone(completion: nil)
// 3. Start screen sharing (camera must be off for screen sharing)
// DeviceStore.shared.startScreenShare(appGroup: Self.kAppGroup)
}
}
Note:
In webinar mode, mobile devices support only one upstream video stream. When the camera is enabled, screen sharing must be disabled, and vice versa.
openLocalCamera API Parameter Details:
Parameter Name
Type
Required
Description
isFront
Bool
Yes
Use front camera:
true: Enable front camera.
false: Enable rear camera .
completion
CompletionClosure
No
Completion callback. Returns error code and message if enabling fails.

3. End Room

To end the room, the host calls RoomStore.endRoom. All participants will receive a room end event.
import UIKit
import AtomicXCore

// RoomMainViewController represents the main room view controller
class RoomMainViewController: UIViewController {
private let roomID: String

public init(roomID: String) {
self.roomID = roomID
super.init(nibName: nil, bundle: nil)
endRoom()
}

required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}

private func endRoom() {
// endRoom permanently terminates the room.
// Only the host (Owner) can perform this operation. All members are removed and audio/video is forcibly stopped.
RoomStore.shared.endRoom { [weak self] result in
guard let self = self else { return }
switch result {
case .success():
print("Room ended successfully")
case .failure(let error):
print("Failed to end room [Error Code: \\(error.code)]: \\(error.message)")
}
}
}
}

Step 2: Join a Webinar Room

1. Join Room

To join a room, call RoomStore.joinRoom.
import UIKit
import AtomicXCore

// RoomMainViewController represents the main room view controller
class RoomMainViewController: UIViewController {
private let roomID = "webinar_123456"

public init() {
super.init(nibName: nil, bundle: nil)
joinRoom(roomID: roomID, roomType: .webinar)
}

required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}

private func joinRoom(roomID: String, roomType: RoomType) {
// 1. Prepare join parameters
let targetRoomID = roomID // Room ID to join
let roomPassword = "" // Room password; pass empty string or nil if not set

// 2. Call RoomStore joinRoom API
// Checks room existence, user ban, and password correctness
RoomStore.shared.joinRoom(roomID: targetRoomID, roomType: roomType, password: roomPassword) { [weak self] result in
guard let self = self else { return }
switch result {
case .success():
print("Joined room successfully")
case .failure(let error):
print("Failed to join room [Error Code: \\(error.code)]: \\(error.message)")
}
}
}
}
joinRoom API Parameter Details:
Parameter Name
Type
Required
Description
roomID
String
Yes
Unique room identifier.
0-48 bytes.
Use numbers, English letters, underscores (_), hyphens (-). Avoid spaces and Chinese characters.
roomType
RoomType
Yes
Room type:
standard: Standard room.
webinar: Large webinar room.
Use webinar for webinar scenarios.
password
String
No
Room password (empty means no password).
0-32 bytes.
Use 4-8 digits for mobile input. Avoid plain-text sensitive data. Passwords not supported for webinars; leave empty.
completion
CompletionClosure
No
Completion callback. Returns error code and message if join fails.

2. Leave Room

To leave a room, call RoomStore.leaveRoom.
import UIKit
import AtomicXCore

// RoomMainViewController represents the main room view controller
class RoomMainViewController: UIViewController {
private let roomID: String

public init(roomID: String) {
self.roomID = roomID
super.init(nibName: nil, bundle: nil)
leaveRoom()
}

required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}

private func leaveRoom() {
// leaveRoom is for regular members or hosts to exit the room.
// If the host leaves, only they exit; the room remains active.
// Stops audio/video streaming and notifies the server to remove the user
RoomStore.shared.leaveRoom { [weak self] result in
guard let self = self else { return }
switch result {
case .success():
print("Left room successfully")
case .failure(let error):
print("Failed to leave room [Error Code: \\(error.code)]: \\(error.message)")
}
}
}
}

Step 3: Bind Video View

The RoomView component encapsulates webinar streaming logic. Simply render RoomView in your page to enable audio/video capabilities for the webinar room. Video rendering uses TUIRoomKit components.
RoomView built-in capabilities:
Host: Supports video and screen sharing.
Guest: Automatically plays host's real-time audio/video stream.
Audience: Automatically pulls and plays ultra-low latency live streams, delivering a seamless viewing experience at scale.
Tip:
RoomView is the component for rendering room video streams. For full implementation, refer to RoomView.swift in the TUIRoomKit open-source project.
import UIKit
import Combine
import AtomicXCore
import TUIRoomKit

// RoomMainViewController represents the main room view controller
class RoomMainViewController: UIViewController {

private var roomID: String
private var roomType: RoomType

private lazy var roomView: RoomView = {
let roomView = RoomView(roomID: roomID, roomType: roomType)
return roomView
}()

init(roomID: String, roomType: RoomType) {
self.roomID = roomID
self.roomType = roomType
super.init()
view.addSubview(roomView)

roomView.snp.makeConstraints { make in
make.edges.equalToSuperview()
}
}

required init?(coder: NSCoder) { fatalError() }
}

Step 4: Manage Guest/Audience Roles

As host or admin, call RoomParticipantStore.promoteAudienceToParticipant to promote an audience member to guest.
Call RoomParticipantStore.demoteParticipantToAudience to demote a guest back to audience.
import Combine
import AtomicXCore

func promoteAudienceToParticipant(userID: String) {
// Prerequisite: Must have entered the room.
// Create RoomParticipantStore instance using roomID

var participantStore: RoomParticipantStore = RoomParticipantStore.create(roomID: "webinar_123456")

// Promote audience to guest (host/admin only)
participantStore.promoteAudienceToParticipant(userID: userID) { result in
switch result {
case .success():
print("Promoted to guest successfully")
case .failure(let err):
print("Failed to promote to guest Error Code: \\(err.code), Error Message: \\(err.message)")
}
}
}

func demoteParticipantToAudience(userID: String) {
// Prerequisite: Must have entered the room.
// Create RoomParticipantStore instance using roomID
var participantStore: RoomParticipantStore = RoomParticipantStore.create(roomID: "webinar_123456")

// Demote guest to audience (host/admin only)
participantStore.demoteParticipantToAudience(userID: userID) { result in
switch result {
case .success():
print("Demoted guest to audience successfully")
case .failure(let err):
print("Failed to demote guest to audience Error Code: \\(err.code), Error Message: \\(err.message)")
}
}
}

Step 5: Listen to Room Events

After entering the room, call RoomStore.addRoomListener to subscribe to room events via roomEventPublisher.
import UIKit
import Combine
import AtomicXCore

// RoomMainViewController represents the main room view controller
class RoomMainViewController: UIViewController {
private let roomID: String

// Store Combine subscriptions to prevent listener loss
private var cancellableSet = Set<AnyCancellable>()

public init(roomID: String) {
self.roomID = roomID
super.init(nibName: nil, bundle: nil)
// Start event listening on initialization
subscribeRoomEvents()
}

required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}

private func subscribeRoomEvents() {
// Access RoomStore's roomEventPublisher
// Publishes events throughout the room lifecycle (call, dissolve, reminders, etc.)
RoomStore.shared.roomEventPublisher
.receive(on: RunLoop.main) // Ensure UI updates on main thread
.sink { [weak self] event in
guard let self = self else { return }

// Business logic based on event type
switch event {
case .onRoomEnded(let roomInfo):
print("The current room has ended")
// ... handle other RoomEvent events ...
default: break
}
}
.store(in: &cancellableSet) // Store subscription
}
}

API Documentation

Store/Component
Description
API Documentation
RoomStore
Room lifecycle management: create/join, join, leave, end room, update/get room info, subscribe to room events (dissolution, updates)
RoomParticipantStore
Room member management: set admin, transfer host, get guest list, get audience list, remove from room, guest device control
DeviceStore
Audio/video device status and device operation APIs
LoginStore
AtomicXCore login: login and retrieve login user information

FAQ

rsync fails to copy third-party library resources due to insufficient permissions?

When integrating SnapKit in Xcode, you may see an error like:
rsync(xxxx):1:1: SnapKit.framework/SnapKit_Privacy.bundle/: mkpathat: Operation not permitted

Cause

Xcode's script sandboxing restricts write permissions for the rsync script during the build process, preventing copying of SnapKit_Privacy.bundle inside the framework.

Solution Steps

1. Disable user script sandboxing. In your Xcode project, go to Build Settings, search for User Script Sandboxing (or ENABLE_USER_SCRIPT_SANDBOXING), and set it from YES to NO.
2. Clean and rebuild the project: use Product → Clean Build Folder to clear cache, then recompile and run.

Contact Us

For integration or usage questions and feedback, contact info_rtc@tencent.com.

Bantuan dan Dukungan

Apakah halaman ini membantu?

masukan
