Anchor Core View (iOS)

다운로드
포커스 모드
폰트 크기
마지막 업데이트 시간: 2026-06-02 11:56:00
AnchorView is the primary UI component for the host side. Use this component to quickly build a basic live streaming interface with extensive APIs and high flexibility. This guide walks you through customizing interface elements from simple button tweaks to full view replacements.

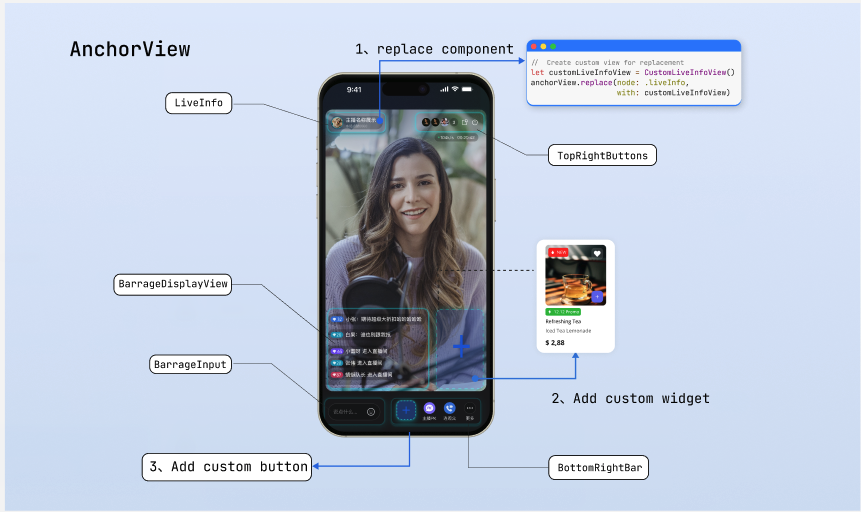

Page Structure Diagram


Prerequisites

Before customizing the live streaming page, complete the main workflow setup as described in Host Live Streaming.

Feature Overview

AnchorView provides the following core customization interfaces and properties:
Method/Property
Description
topRightItems
Configure the set of buttons in the top-right corner of the live room. Freely add custom buttons or adjust the layout of built-in buttons.
bottomItems
Configure the set of buttons at the bottom of the live room. Freely add custom buttons or adjust the layout of built-in buttons.
replace(node:with:)
Replace the default component at a specified position (such as the top info area or bottom operation bar) with a fully custom view.
overlayView
Widget layer for adding global business UI that floats above the video screen.
perform(action:)
Trigger built-in logic directly from custom views, such as displaying the default audience list or co-host management panel.

Quick Start

The following example builds a show-style host dashboard:
Add a beauty filter button to the bottom bar.
Replace the live info node with a business-specific style.
Add a "Popularity Ranking" floating widget.
import UIKit
import AtomicX

let anchorView: AnchorView

func setupUI() {
// Step 1: Create the beauty filter button and set button order
let beautyButton = UIButton(type: .system)
beautyButton.setTitle("beauty", for: .normal)
// Order: co-host, PK, custom beauty button, more
anchorView.bottomItems = [.coHost, .battle, .custom(beautyButton), .more]

// Step 2: Replace the LiveInfo view style
let customLiveInfoView = CustomLiveInfoView()
anchorView.replace(node: .liveInfo, with: customLiveInfoView)

// Step 3: Add the "Popularity Ranking" floating widget
let rankWidget = RankWidgetView()
// Add widget to the overlay layer
anchorView.overlayView.addSubview(rankWidget)
// Position below the top-left corner
rankWidget.snp.makeConstraints { make in
make.top.equalToSuperview().offset(120)
make.leading.equalToSuperview().offset(12)
make.width.equalTo(70)
make.height.equalTo(30)
}
}

Adjusting Bottom Operation Buttons

The bottom toolbar is the main area for host interactions. By default, it displays "Host PK", "Co-host with Audience", and "More" buttons from left to right. You can add custom buttons with .custom(UIView), or flexibly add/remove built-in features and adjust button order using the bottomItems property.


Implementation Steps

Step 1: Prepare custom button views. Create custom button view objects as needed.
Step 2: Update the bottom button array. Assemble an array of AnchorBottomItem enums and assign it to the component property.
import UIKit
import AtomicX

let anchorView: AnchorView

// Example: Keep only the co-host feature in the bottom toolbar and add a product list trigger button
func adjustBottomBar() {
// Step 1: Prepare custom button view
let goodsButton = UIButton(type: .custom)
goodsButton.setImage(UIImage(named: "shop_cart"), for: .normal)
// Step 2: Update the bottom button array
anchorView.bottomItems = [
.coHost,
.custom(goodsButton)
]
}

Adjusting Top Operation Buttons

The top area typically displays key room information and controls. By default, it shows "Audience Count", "Floating Window", and "Close" buttons from left to right. Use the topRightItems property to add or simplify control buttons in the top-right corner.


Implementation Steps

Step 1: Prepare custom button views. Create custom button view objects as needed.
Step 2: Update the top button array. Assign selected enum items or custom views to the topRightItems property.
import UIKit
import AtomicX

let anchorView: AnchorView

// Example: Keep audience count and close room buttons in the top-right corner, and add a "Report" button
func adjustTopRightBar() {
// Step 1: Prepare custom button view
let reportButton = UIButton(type: .custom)
reportButton.setImage(UIImage(named: "report_btn"), for: .normal)

// Step 2: Update the top button array in display order
anchorView.topRightItems = [.audienceCount, .custom(reportButton), .close]
}

Replacing Specific Interface Area Views

If button adjustments can't meet your layout requirements (for example, replacing the live comments input box in the bottom-left corner with another button), use the replace interface to fully swap out the view in a specified area.
Internally, the component defines five UI areas that support custom replacement via the AnchorNode enum. See the "Page Structure Diagram" above for reference:
AnchorNode
Description
liveInfo
Top-left area displaying host and room information.
topRightButtons
Top-right area for system control buttons.
networkInfo
Network status indicator area.
bottomRightBar
Bottom-right area for business operation bar.
barrageInput
Bottom-left area for triggering the live comments input box.
Note:
The replace method fully replaces the specified node. If you replace both topRightButtons and bottomRightBar, their corresponding Items properties become invalid. For simple button adjustments, use the Items properties described earlier. Use replace only when you need to redesign the layout of an area.

Layout Rules

The replace interface inserts your custom view into the specified slot. The framework controls the position; you don't need to set it. The view's size is determined by itself. Declare the size using one of the following methods:

Method 1: Use internal constraint chain (Recommended)

Ensure child view constraints form a complete chain so the parent view expands automatically.
class MyInfoView: UIView {
init() {
super.init(frame: .zero)
let label = UILabel()
label.text = "Live now"
addSubview(label)
label.snp.makeConstraints { make in
make.edges.equalToSuperview().inset(12) // Child view expands parent view
}
}
required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}
}

Method 2: Override intrinsicContentSize

Override this property to specify a fixed size for the view.
class MyInfoView: UIView {
override var intrinsicContentSize: CGSize {
CGSize(width: 200, height: 44)
}
}

Implementation Steps

Step 1: Create a custom view object.
Step 2: Call the replace interface on the AnchorView component, passing the node enum to replace and the custom view.
let anchorView: AnchorView

// Example: Replace the default area with a custom live info view
func replaceLiveInfoNode() {
// Step 1: Initialize a custom view with proper layout rules
let customInfoView = MyInfoView()
customInfoView.backgroundColor = .darkGray

// Step 2: Call replace to update the specific node
anchorView.replace(node: .liveInfo, with: customInfoView)
}

Binding Events and Triggering Logic

When you use custom views to replace default buttons or nodes, you need to handle their interaction events. In the event handler, you can run your own business logic or use the perform method to trigger TUILiveKit's built-in logic.

Implementation Steps

Step 1: Bind events to the custom view. Use addTarget or gesture recognizers to add tap events.
Step 2: Trigger built-in logic or run business code. In the event callback, call perform with the AnchorAction enum, or execute other business logic.
import UIKit
import AtomicX

class YourAnchorViewController {
var anchorView: AnchorView?

// Example: Bind a tap event to a custom live info view and reuse the SDK's built-in host info panel
func setupCustomLiveInfoNode() {
// Step 1: Initialize custom view and bind gesture event
let customLiveInfoView = MyInfoView() // Custom live info view
customLiveInfoView.backgroundColor = .darkGray

// Enable user interaction and add tap gesture
customLiveInfoView.isUserInteractionEnabled = true
let tapGesture = UITapGestureRecognizer(target: self, action: #selector(handleLiveInfoClick))
customLiveInfoView.addGestureRecognizer(tapGesture)

// Replace the live info node with the custom view
anchorView?.replace(node: .liveInfo, with: customLiveInfoView)
}

// Step 2: Trigger built-in logic or business code
@objc func handleLiveInfoClick() {
// UI node view is custom, but tap logic reuses the built-in host info popup
anchorView?.perform(.showLiveInfo)
// Or pop up your own host info dialog
}
}

Deep Customization of Business Popups

If the built-in panels triggered by perform don't meet your business needs, you can fully take over this logic and build custom panels using data from the Core SDK.

Core Approach

Use the AtomicXCore data interface to access room, user, and status data. Build custom views and bind interactions as needed. After creating your custom controller, use the AtomicPopover component to present it, so your panel benefits from the same gesture handling and animations as the SDK's built-in panels.

Implementation Steps

Step 1: Build a custom business view. Create a standalone UIView and use the AtomicXCore interface inside it to fetch or listen to business data for UI updates.
Step 2: Configure popup container parameters. Instantiate the popup configuration object and specify position, height, and animation type.
Step 3: Present the custom view. Pass your custom view as the contentView to the AtomicPopover container and present it.
import UIKit
import AtomicX
import AtomicXCore // Use core data interface for business development

// Step 1: Build custom audience list view
class CustomAudienceListView: UIView {
override init(frame: CGRect) {
super.init(frame: frame)
self.backgroundColor = .white
setupUI()
bindLiveData()
}
required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}
private func setupUI() {
// Add custom UI controls, such as audience avatars, user levels, etc.
}
private func bindLiveData() {
// Use AtomicXCore to get current room status or user data
// Refresh custom UI after obtaining core data
}
}

// Example: Slide up a custom panel from the bottom, occupying half the screen height
func presentBusinessPanel(from parentViewController: UIViewController) {
// Step 2: Configure popup container parameters
let config = AtomicPopover.AtomicPopoverConfig(
position: .bottom,
height: .ratio(0.5),
animation: .slideFromBottom
)
// Step 3: Present custom view
let audienceListView = CustomAudienceListView()
let popover = AtomicPopover(contentView: audienceListView, configuration: config)
parentViewController.present(popover, animated: true)
}
Refer to the following documentation for implementing custom feature panels using the AtomicXCore interface:
Feature Description
Reference Documentation
Audience co-host management panel: co-host application/invite/accept/reject, co-host member permission control (microphone/camera), status synchronization.
Host cross-room co-host panel: manage host co-hosting interactions, initiate/accept/reject co-hosting.
Audience list: count audience number, listen for audience join/leave events.
Audio effects panel: voice changer (child voice/male voice), reverb (KTV, etc.), monitor adjustment, real-time effect switching.

Adding Custom Floating Widgets

Live streaming often requires floating activity icons or interactive stickers above the video screen. These views should be added to the overlayView layer, as they sit above the video and are independent of the base layout.
In practice, floating widgets are usually entry points for activity panels. Combine them with AtomicPopover: bind a tap event to the widget, and pop up a custom business dialog when clicked.

Implementation Steps

Step 1: Create the widget view and enable interaction. Instantiate the floating control and set its size and position.
Step 2: Bind tap event. Add a gesture recognizer to the widget to respond to host tap actions.
Step 3: Add to overlay layer and link popup. Add the widget to overlayView, and in the tap callback, call your custom popup logic.
import UIKit
import TUILiveKit

class LiveRoomController: UIViewController {
var anchorView: AnchorView?

// Example: Display a red packet widget floating at the top-left corner, and pop up the custom business panel when clicked
func addRedPacketWidget() {
// Step 1: Create widget view and enable interaction
let redPacketWidget = UIImageView(image: UIImage(named: "red_packet_icon"))
redPacketWidget.frame = CGRect(x: 15, y: 120, width: 60, height: 60)
redPacketWidget.isUserInteractionEnabled = true
// Step 2: Bind tap event
let tapGesture = UITapGestureRecognizer(target: self, action: #selector(handleRedPacketClick))
redPacketWidget.addGestureRecognizer(tapGesture)
// Step 3: Add to overlay layer
anchorView?.overlayView.addSubview(redPacketWidget)
}
@objc func handleRedPacketClick() {
// Call the presentBusinessPanel method to pop up your custom business view
// presentBusinessPanel(from: self)
}
}

FAQs

Why is the custom button I added not responding to clicks?

If a custom view added via .custom() or replace doesn't respond to clicks, check the following:
Troubleshooting Suggestions:
View size and internal constraints (most common issue): If you pass in a custom container view (such as replacing bottomRightBar), ensure that child controls form a complete constraint chain to expand the parent view, or override the main view's intrinsicContentSize. If the parent view's actual size is 0, even visible buttons won't receive click events—they fall outside the parent view's bounds.
Interaction properties: Check the isUserInteractionEnabled property. For UIImageView or generic UIView containers, this defaults to false. Set it to true manually.
Event binding and target: Confirm you've correctly added a UITapGestureRecognizer or used addTarget.

How to dynamically hide or show buttons?

You may need to adjust the bottom or top toolbars dynamically based on the host's level or room status (for example, hiding the co-host button during PK phase).
Implementation: The bottomItems and topRightItems properties of AnchorView support reactive updates. Assemble a new button array and assign it to the property—the SDK automatically refreshes the view. No need to manually call reloadData or similar methods.

Size issues after replacing views?

Child controls inside the main view must form a complete constraint chain or override intrinsicContentSize. See "Custom View Layout Rules" above for details.
