最終更新日: 2025-05-08 15:59:15
この文章では、TUICallKit コンポーネントを素早く導入する方法を紹介します。10 分以内で以下の重要なステップを完了し、最終的に完全な UI インターフェイスを備えたビデオ通話機能を取得します。




環境準備

React version 18+.
Node.js version 16+.
Modern browser, supporting WebRTC APIs.

ステップ 1:サービスをアクティブ化する

サービスをアクティブ化するを参照し、SDKAppID、SDKSecretKey を取得してください。これらは TUICallKit コンポーネントを初期化する 際に必須パラメータ**として使用されます。

ステップ 2:TUICallKit コンポーネントをダウンロードする

1. @tencentcloud/call-uikit-react コンポーネントをダウンロードします。
npm install @tencentcloud/call-uikit-react
2. debug ディレクトリをプロジェクトディレクトリsrc/debugにコピーします。これは、ローカルで userSig を生成するときに必要です。
MacOS
Windows
cp -r node_modules/@tencentcloud/call-uikit-react/debug ./src
xcopy node_modules@tencentcloud\\\\call-uikit-react\\\\debug .\\\\src\\\\debug /i /e

ステップ 3:TUICallKit コンポーネントを初期化する

/src/App.tsx ファイルにサンプルコードを導入することができます。
1. call-uikit 関連の API オブジェクトを導入します。
import { useState } from 'react';
import { TUICallKit, TUICallKitServer, TUICallType } from "@tencentcloud/call-uikit-react";
import \\* as GenerateTestUserSig from "./debug/GenerateTestUserSig-es"; // Refer to Step 3
2. <TUICallKit />を導入します。このコンポーネントには、通話中の完全な UI インタラクションが含まれています。
return (
\\<>
<span> caller's ID: </span>
\\<input type="text" placeholder='input caller userID' value={callerUserID} onChange={(event) => setCallerUserID(event.target.value)} />
<button onClick={init}> step1. init </button> <br />
<span> callee's ID: </span>
\\<input type="text" placeholder='input callee userID' value={calleeUserID} onChange={(event) => setCalleeUserID(event.target.value)} />
<button onClick={call}> step2. call </button>
{/\\* 【1】Import the TUICallKit component: Call interface UI \\*/}
<TUICallKit />
\\</>
);
3. TUICallKitServer.init API ログインコンポーネントを呼び出すには、コードに **SDKAppID、SDKSecretKey**の 2 つのパラメータを記入力する必要があります。
const SDKAppID = 0; // TODO: Replace with your SDKAppID (Notice: SDKAppID is of type number)
const SDKSecretKey = ''; // TODO: Replace with your SDKSecretKey
const \\[callerUserID, setCallerUserID\\] = useState('');
const \\[calleeUserID, setCalleeUserID\\] = useState('');
//【2】Initialize the TUICallKit component
const init = async () => {
const { userSig } = GenerateTestUserSig.genTestUserSig({
userID: callerUserID,
SDKAppID,
SecretKey: SDKSecretKey,
});
await TUICallKitServer.init({
userID: callerUserID,
userSig,
SDKAppID,
});
alert('TUICallKit init succeed');
}
//【3】Make a 1v1 video call
const call = async () => {
await TUICallKitServer.call({
userID: calleeUserID.value,
type: TUICallType.VIDEO_CALL,
});
};
パラメータ
タイプ
説明
userID
String
ユーザーの一意の識別子。ユーザーが定義するものであり、大文字と小文字の英字(a-z A-Z)、数字(0~9)、アンダースコアとハイフンのみを含めることができます。
SDKAppID
Number
Tencent RTC コンソール で音声・動画アプリケーションの一意の識別子を作成します。
SDKSecretKey
String
Tencent RTC コンソール で音声・動画アプリケーションの SDKSecretKey を作成します。
userSig
String
ユーザーのログイン認証を行い、ユーザーが真実であることを確認し、悪意のある攻撃者による CVM へのアクセスを阻止するためのセキュリティ保護サイン。
userSig の説明:
開発環境:ローカルで Demo をクイックスタートしたり、デバッグ・開発したりしている場合は、debug ファイル内の genTestUserSig関数(ステップ 3.2を参照)を使用して userSig を生成することができます。この方法の SDKSecretKey は逆コンパイル・逆クラックされやすく、キーが漏洩すると、攻撃者はお客様の Tencent Cloud トラフィックを盗むことができます。
本番環境:プロジェクトを立ち上げる場合は、サーバー側で UserSig を生成する方法を使用してください。

ステップ 4:最初の電話をかける

1. TUICallKitServer.call API を呼び出して電話をかけます。
//【3】Make a 1v1 video call
const call = async () => {
await TUICallKitServer.call({
userID: calleeUserID,
type: TUICallType.VIDEO_CALL,
});
};
2. プロジェクトを実行します。
警告:
ローカル環境では localhost プロトコルでアクセスし、パブリックネットワークでは HTTPS プロトコルでアクセスしてください。詳しくは ネットワークアクセスプロトコルの説明を参照してください。

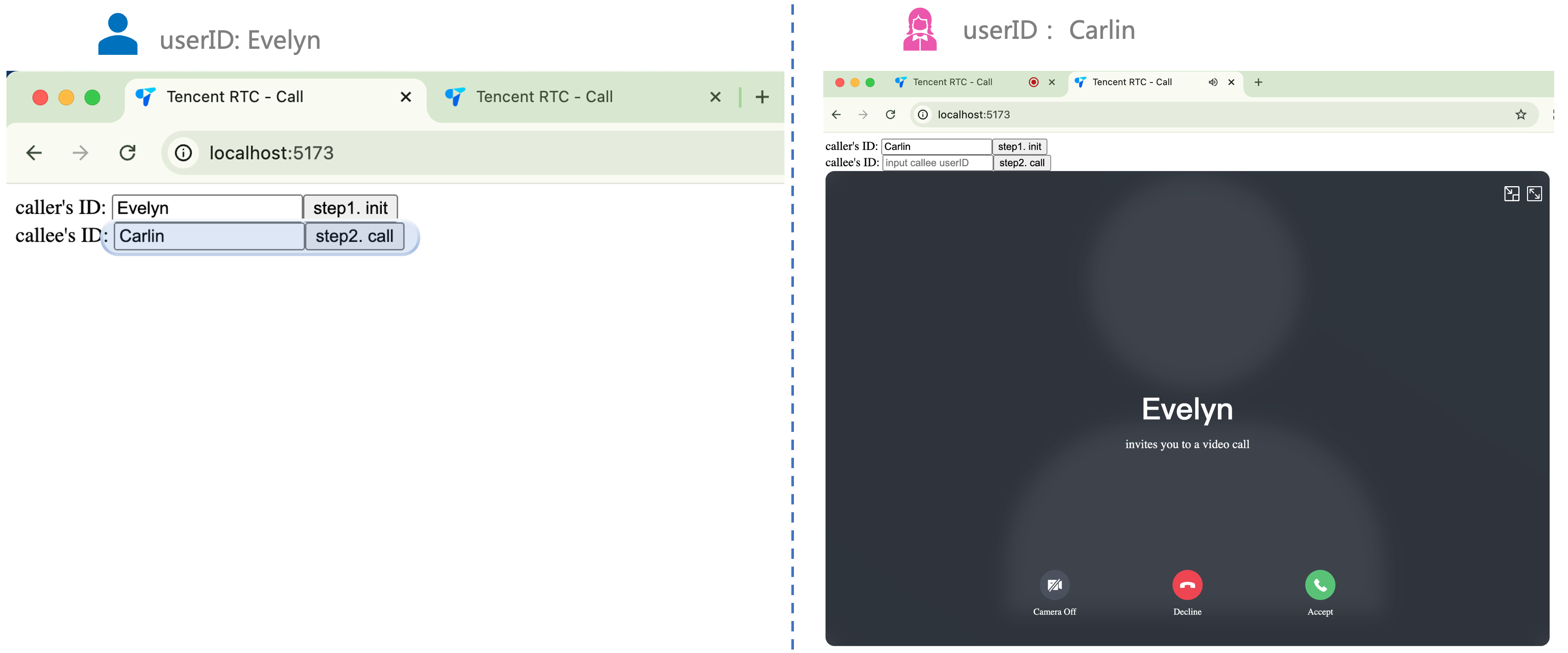

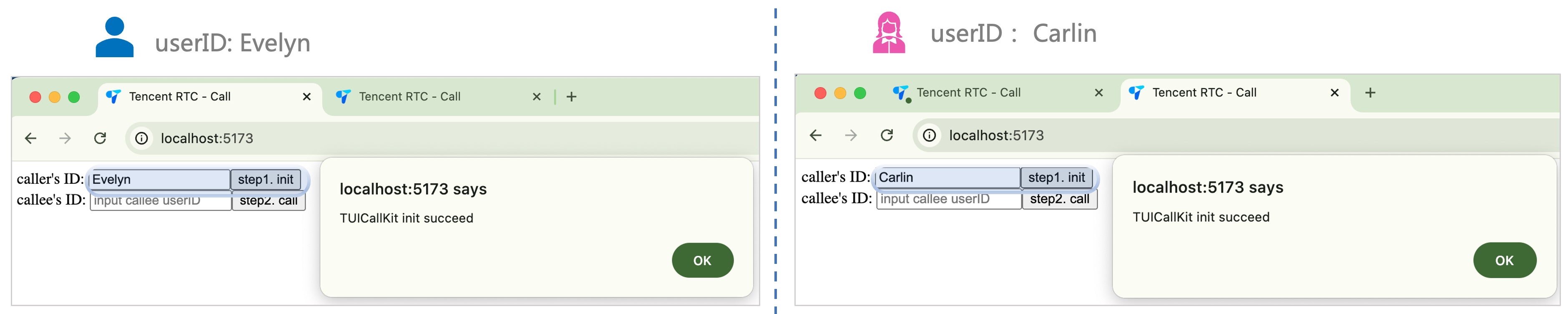

3. 2 つのブラウザページを開き、異なるuserID(お客様が定義する)を入力します step1. init をクリックしてログインします(発呼側と着呼側)。

4. 両方の userID が正常にログインしたら、**step2. call ** をクリックして電話をかけます。通話に問題がある場合は、よくある質問を参照してください。


その他の特性

よくある質問

アクセスと使用に問題がある場合は よくある質問を参照してください。
ご要望やご意見がございましたら、info_rtc@tencent.com までお問い合わせください。
