If you use a CCN-based direct connect gateway in the Direct Connect network architecture, you can view the IDC routes and CCN routes to the direct connect gateway on the console.

Limits

• The route table feature of the direct connect gateway is currently in canary release. To try it out, please submit a ticket.
• This feature is unavailable in Taiwan (China) and Canada regions.

Prerequisites

• You have created a CCN-based direct connect gateway as instructed in Creating Direct Connect Gateway.
• You have applied for a dedicated tunnel as instructed in Applying for a Tunnel and associated with the direct connect gateway.
• You have added IDC IP ranges to the direct connect gateway as instructed in Adding IDC IP Ranges to the Direct Connect Gateway.

Directions

1. Log in to the Direct Connect Gateway console.

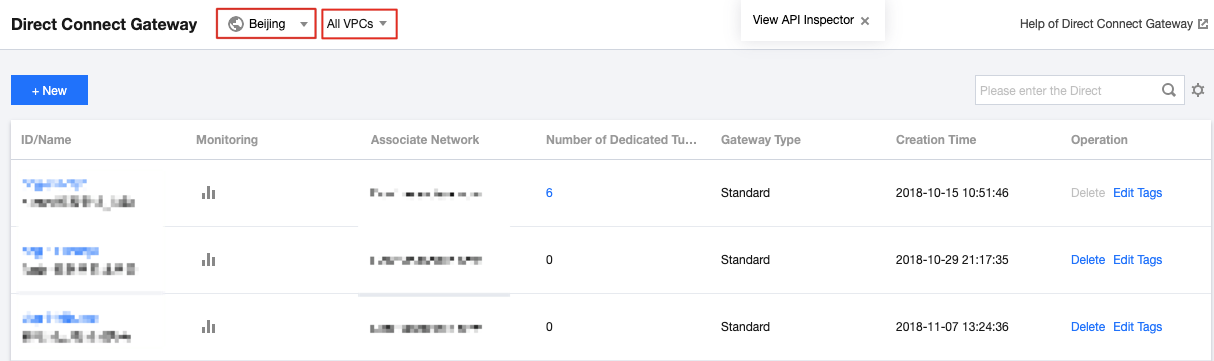

2. Select a region and VPC at the top of the Direct Connect Gateway page. Click the ID/Name of the target direct connect gateway to enter its details page.

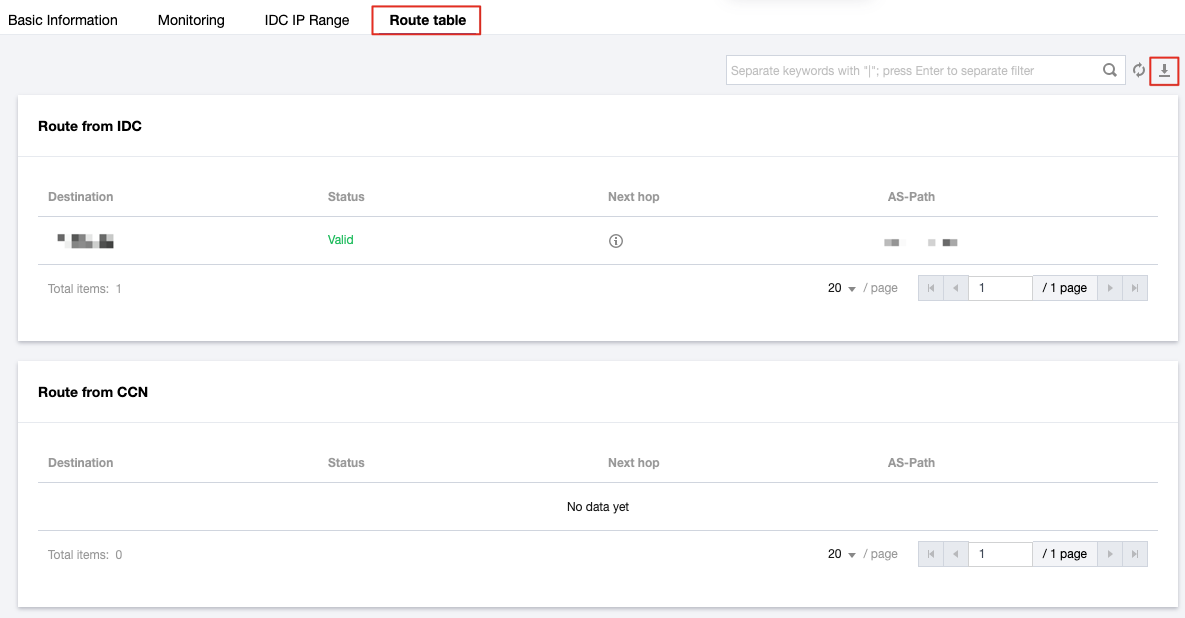

3. Select the Route Table tab and view the IDC routes and CCN routes to the direct connect gateway. Click to download the route table information.
