This document guides you through building a basic live streaming app with host broadcasting and audience viewing capabilities using the core component LiveCoreView from the AtomicXCore SDK.
Core Features
LiveCoreView is a lightweight View component purpose-built for live streaming scenarios. It serves as the foundation of your live streaming implementation, encapsulating all complex streaming technologies—including stream publishing and playback, co-hosting, and audio/video rendering. Use LiveCoreView as the "canvas" for your live video, enabling you to focus on developing your custom UI and interactions.

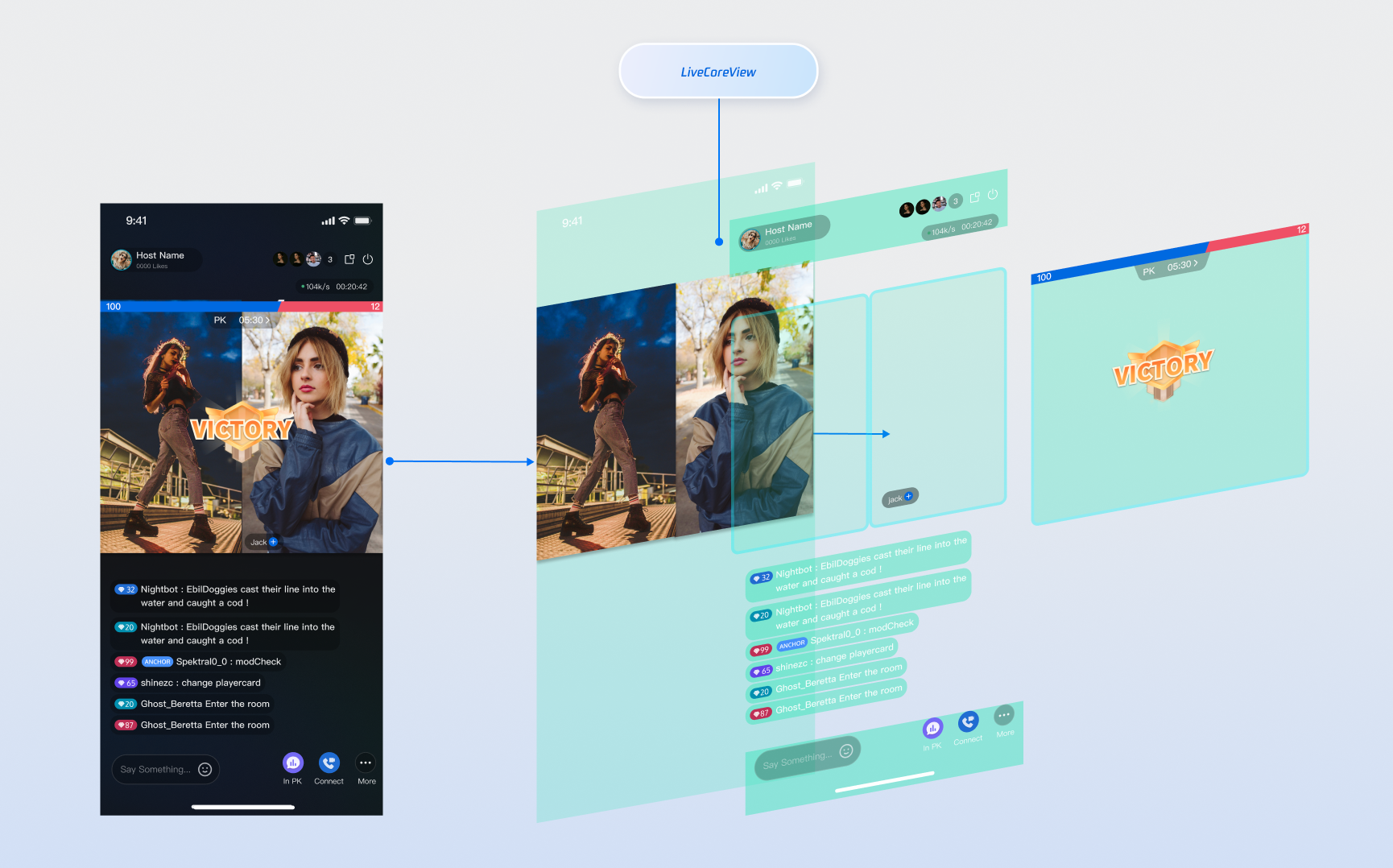

The following view hierarchy diagram illustrates the position and role of LiveCoreView within the live streaming interface:
﻿
Core Concepts
Core Concept
Core Responsibility
Key API / Property
LiveCoreView
Handles publishing, playing, and rendering audio/video streams. Provides adapter interfaces for integrating custom UI components (e.g., user info, PK progress bar).
viewType:
CoreViewType.PUSH_VIEW (host publishing view)
CoreViewType.PLAY_VIEW (audience playback view)
setLiveId(): Binds the live room ID for this view.
setVideoViewAdapter(): Adapter for custom video display UI slots.
LiveListStore
Manages the complete live room lifecycle (create, join, leave), synchronizes state, and listens for passive events (e.g., live ended, kicked out).
createLive(): Start live stream as host.
endLive(): End live stream as host.
joinLive(): Audience joins live room.
leaveLive(): Leave live room.
LiveInfo
Defines room parameters before going live, such as room ID, seat layout mode, max co-hosts, etc.
liveID: Unique room identifier.
﻿seatTemplate: Layout template.
Preparation
Step 1: Activate the Service

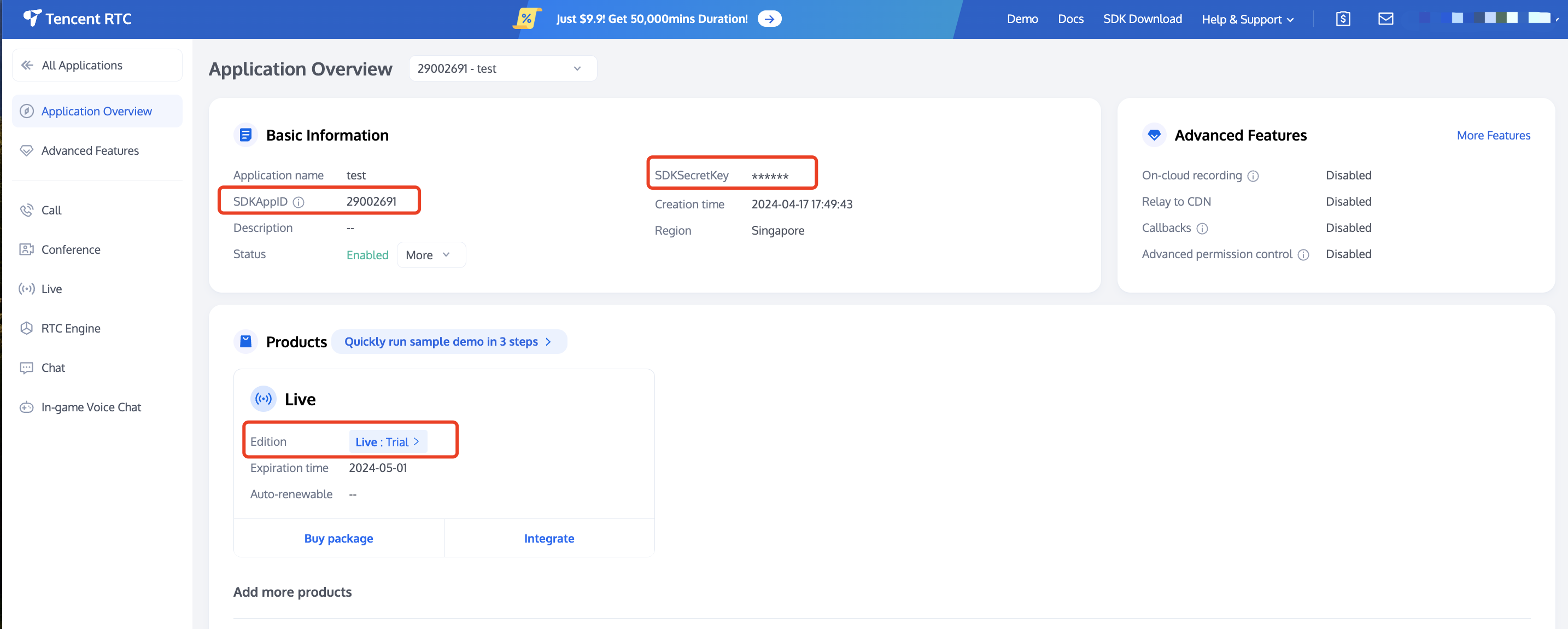

See Activate Service to obtain either the trial or paid version of the SDK.Then, go to the Console for application management, and get the following:
SDKAppID: Application identifier (required). Tencent Cloud uses SDKAppId for billing and details.
SDKSecretKey: Application secret key, used to initialize the configuration file with secret information.
﻿
Step 2: Import AtomicXCore into Your Project
Install the component: Add the dependency implementation 'com.tencent.atomicx:atomicxcore:latest' to your build.gradle file, then perform a Gradle Sync.
build.gradle.kts
build.gradle
implementation("io.trtc.uikit:atomicx-core:4.0.0.110")
api("com.tencent.imsdk:imsdk-plus:8.9.7511")
implementation 'io.trtc.uikit:atomicx-core:4.0.0.110'
api "com.tencent.imsdk:imsdk-plus:8.9.7511"
Step 3: Implement Login Logic
Call LoginStore.shared.login in your project to complete login. This is required before you can use any functionality in AtomicXCore.
Note：
We recommend calling LoginStore.shared.login after your app's own user authentication is successful to ensure clear and consistent login logic.
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.login.LoginStore
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import android.util.Log
﻿
class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
﻿
        LoginStore.shared.login(
            this,              // context
            1400000001,        // Replace with your SDKAppID
            "test_001",        // Replace with your UserID
            "xxxxxxxxxxx",     // Replace with your UserSig
            object : CompletionHandler {
                override fun onSuccess() {
                    // Handle login success
                    Log.d("Login", "login success")
                }
﻿
                override fun onFailure(code: Int, desc: String) {
                    // Handle login failure
                    Log.e("Login", "login failed, code: $code, error: $desc")
                }
            }
        )
    }
}
Login API Parameter Description
Parameter
Type
Description
SDKAppID
Int
Get this from TRTC console > Application management.
UserID
String
The unique ID for the current user. Must contain only English letters, numbers, hyphens, and underscores.
userSig
String
A ticket for Tencent Cloud authentication. Please note:
Development Environment: You can use the local GenerateTestUserSig.genTestSig function to generate a UserSig or generate a temporary UserSig via the UserSig Generation Tool.
Production Environment: To prevent key leakage, you must use a server-side method to generate UserSig. For details, see Generating UserSig on the Server.
For more information, see How to Calculate and Use UserSig.
Building a Basic Live Room
Step 1: Implement Host Video Streaming

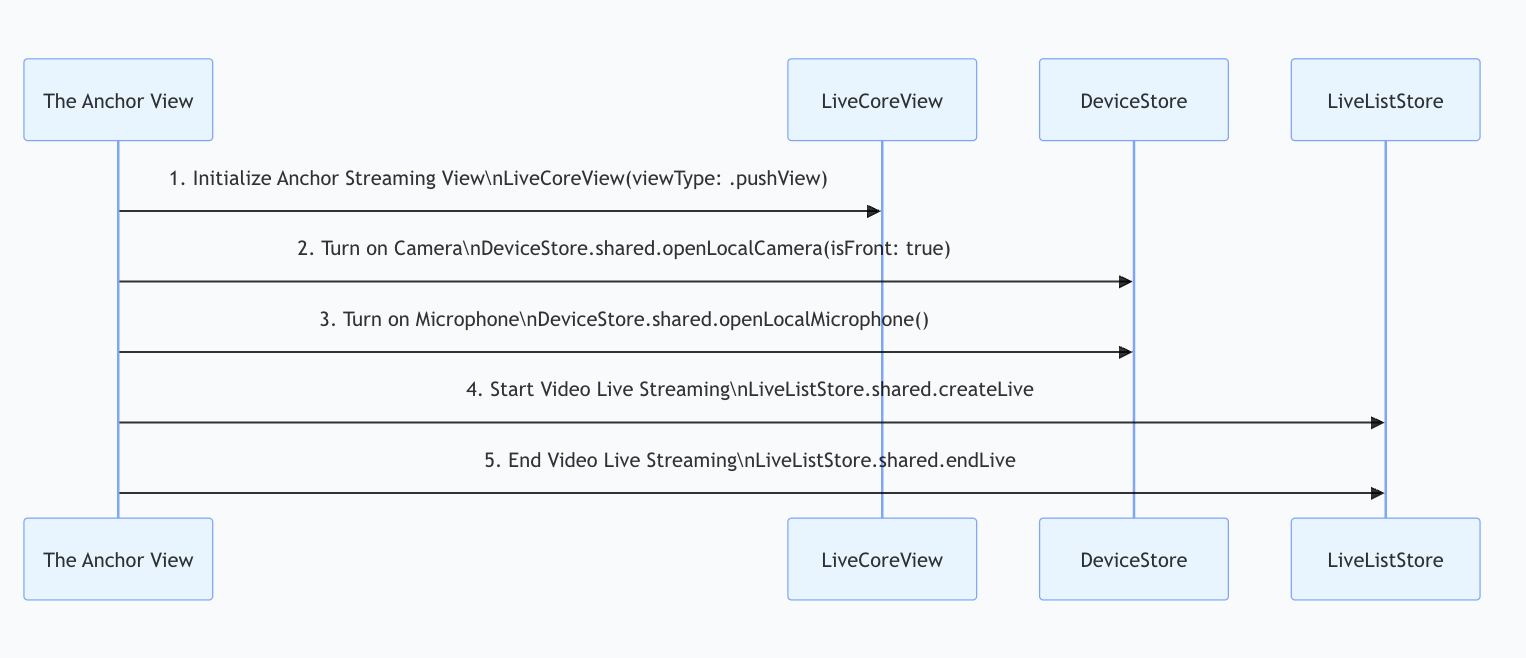

Follow these steps to quickly set up host video streaming:
﻿
Note：
For a complete implementation, refer to VideoLiveAnchorActivity.kt in the open-source TUILiveKit project.
1. Initialize the Broadcaster Streaming View
In your host Activity, create a LiveCoreView instance and set viewType to PUSH_VIEW (publishing view).
import io.trtc.tuikit.atomicxcore.api.view.CoreViewType
import io.trtc.tuikit.atomicxcore.api.view.LiveCoreView
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import androidx.constraintlayout.widget.ConstraintLayout
﻿
class YourAnchorActivity : AppCompatActivity() {
    private lateinit var coreView: LiveCoreView
﻿
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
﻿
        coreView = LiveCoreView(this, viewType = CoreViewType.PUSH_VIEW)
        coreView.setLiveID("test_live_001")
﻿
        setupUI()
    }
﻿
    private fun setupUI() {
        setContentView(R.layout.activity_anchor)
﻿
        val container = findViewById<ConstraintLayout>(R.id.container)
        container.addView(coreView)
﻿
        val params = ConstraintLayout.LayoutParams(
            ConstraintLayout.LayoutParams.MATCH_PARENT,
            ConstraintLayout.LayoutParams.MATCH_PARENT
        )
        params.topMargin = 36
        params.bottomMargin = 96
        coreView.layoutParams = params
    }
}
2. Open Camera and Microphone
Call the openLocalCamera and openLocalMicrophone methods of DeviceStore to enable the camera and microphone. No additional action is required—LiveCoreView will automatically preview the current camera video stream.
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import io.trtc.tuikit.atomicxcore.api.device.DeviceStore
﻿
class YourAnchorActivity : AppCompatActivity() {
    // ... other code ...
﻿
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setupUI()
        openDevices()
    }
﻿
    private fun openDevices() {
        DeviceStore.shared().openLocalCamera(true, completion = null)
        DeviceStore.shared().openLocalMicrophone(completion = null)
    }
}
3. Start Live Streaming
Start the live stream by calling createLive on LiveListStore.
import android.util.Log
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.live.LiveInfo
import io.trtc.tuikit.atomicxcore.api.live.LiveInfoCompletionHandler
import io.trtc.tuikit.atomicxcore.api.live.LiveListStore
﻿
class YourAnchorActivity : AppCompatActivity() {
    // ... other code ...
﻿
    private fun startLive() {
        val liveInfo = LiveInfo().apply {
            liveID = "test_live_001"
            liveName = "test live"
            seatTemplate = SeatLayoutTemplate.VideoDynamicGrid9Seats // Default: dynamic grid layout
        }
        LiveListStore.shared().createLive(liveInfo, object: LiveInfoCompletionHandler {
            override fun onFailure(code: Int, desc: String) {
                Log.e("Live", "startLive error: $desc")
            }
﻿
            override fun onSuccess(liveInfo: LiveInfo) {
                Log.d("Live", "startLive success")
            }
        })
    }
}
LiveInfo Parameter Description:
Parameter Name
Type
Required
Description
liveID
String
Yes
Unique identifier for the live room.
liveName
String
No
Title of the live room.
notice
String
No
Announcement message for the live room.
isMessageDisable
Boolean
No
Disable chat (true = yes, false = no).
isPublicVisible
Boolean
No
Room is publicly visible (true = yes, false = no).
seatMode
﻿TakeSeatMode﻿
No
Seat mode (FREE: free to take seat, APPLY: apply to take seat).
seatTemplate
﻿SeatLayoutTemplate﻿
Yes
Seat layout template.
coverURL
String
No
Cover image URL for the live room.
backgroundURL
String
No
Background image URL for the live room.
categoryList
List
﻿
No
List of category tags for the live room.
activityStatus
Int
No
Live activity status.
isGiftEnabled
Boolean
No
Whether to enable gift functionality (true: yes, false: no).
4. End Live Streaming
When the live stream ends, call the endLive method of LiveListStore. The SDK will handle stopping the stream and destroying the room.
import android.util.Log
import androidx.appcompat.app.AppCompatActivity
import com.tencent.cloud.tuikit.engine.extension.TUILiveListManager
import io.trtc.tuikit.atomicxcore.api.device.DeviceStore
import io.trtc.tuikit.atomicxcore.api.live.LiveListStore
import io.trtc.tuikit.atomicxcore.api.live.StopLiveCompletionHandler
﻿
class YourAnchorActivity : AppCompatActivity() {
    // ... other code ...
﻿
    private fun stopLive() {
        LiveListStore.shared().endLive(object : StopLiveCompletionHandler {
            override fun onSuccess(statisticsData: TUILiveListManager.LiveStatisticsData) {
                Log.d("Live", "endLive success, duration: ${statisticsData.liveDuration}, totalViewers: ${statisticsData.totalViewers}")
            }
﻿
            override fun onFailure(code: Int, desc: String) {
                Log.e("Live", "endLive error: $desc")
            }
        })
    }
﻿
    override fun onDestroy() {
        super.onDestroy()
        stopLive()
        DeviceStore.shared().closeLocalCamera()
        DeviceStore.shared().closeLocalMicrophone()
        Log.d("Live", "YourAnchorActivity onDestroy")
    }
}
Step 2: Implement Audience Join and Watch

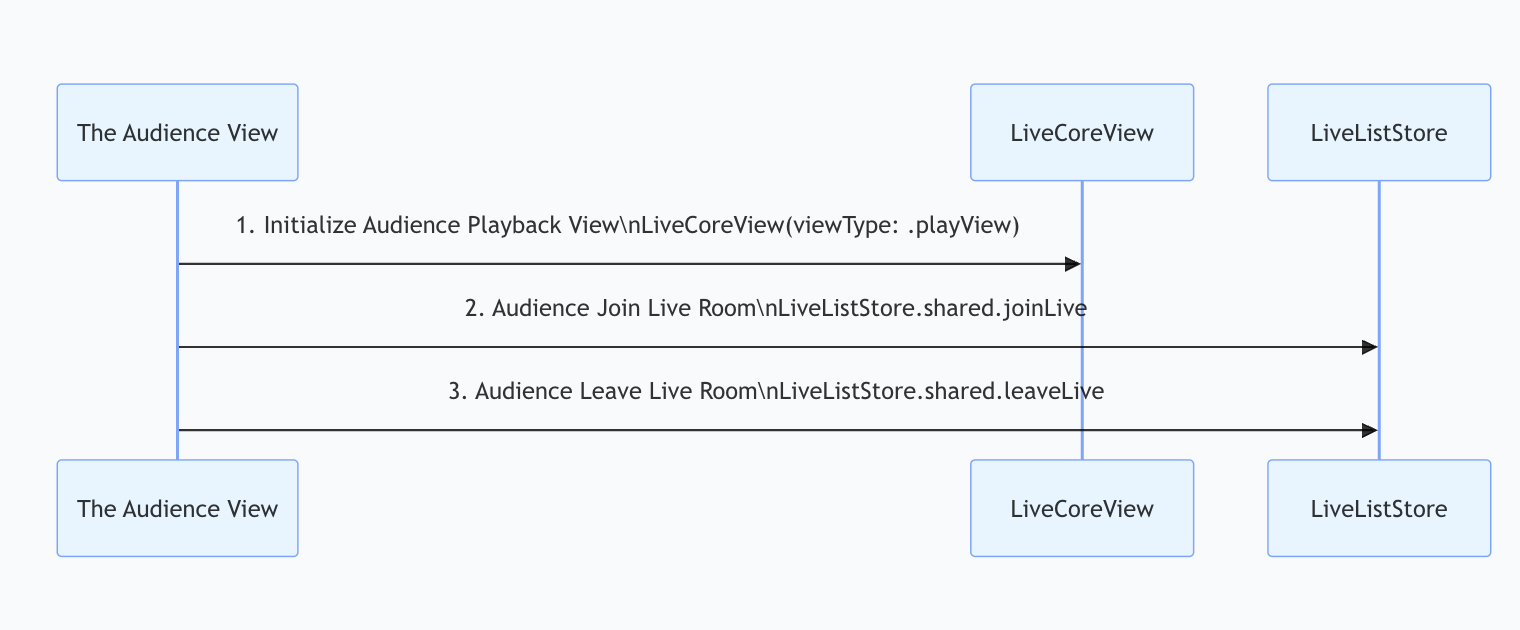

Follow these steps to enable audience viewing:
﻿
Note：
For a complete reference implementation of audience viewing logic, see VideoLiveAudienceActivity.kt in the open-source TUILiveKit project.
1. Add Audience Playback View
In your audience Activity, create a LiveCoreView instance and set viewType to PLAY_VIEW (playback view).
import io.trtc.tuikit.atomicxcore.api.view.CoreViewType
import io.trtc.tuikit.atomicxcore.api.view.LiveCoreView
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import androidx.constraintlayout.widget.ConstraintLayout
﻿
// YourAudienceActivity represents your audience viewing Activity
class YourAudienceActivity : AppCompatActivity() {
﻿
    // 1. Initialize the audience playback view
    private lateinit var coreView: LiveCoreView
﻿
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
﻿
        // 2. Initialize the view
        coreView = LiveCoreView(this, viewType = CoreViewType.PLAY_VIEW)
        coreView.setLiveId("test_live_001")
﻿
        // UI layout
        setupUI()
    }
﻿
    private fun setupUI() {
        setContentView(R.layout.activity_audience)
﻿
        // 3. Add the playback view to your layout
        val container = findViewById<ConstraintLayout>(R.id.container)
        container.addView(coreView)
﻿
        // Set layout parameters
        val params = ConstraintLayout.LayoutParams(
            ConstraintLayout.LayoutParams.MATCH_PARENT,
            ConstraintLayout.LayoutParams.MATCH_PARENT
        )
        params.topMargin = 36
        params.bottomMargin = 96
        coreView.layoutParams = params
    }
}
2. Join the Live Room
Call the joinLive method of LiveListStore to join the live stream. No additional setup is required—LiveCoreView will automatically play the video stream.
import io.trtc.tuikit.atomicxcore.api.live.LiveInfo
import io.trtc.tuikit.atomicxcore.api.live.LiveInfoCompletionHandler
import io.trtc.tuikit.atomicxcore.api.live.LiveListStore
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import android.util.Log
﻿
// YourAudienceActivity represents your audience viewing Activity
class YourAudienceActivity : AppCompatActivity() {
﻿
    // ... other code ...
﻿
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setupUI()
        // 1. Join the live room (liveID must match the host's)
        LiveListStore.shared().joinLive(liveID, object : LiveInfoCompletionHandler {
            override fun onFailure(code: Int, desc: String) {
                Log.e("Live", "joinLive error: $desc")
            }
﻿
            override fun onSuccess(liveInfo: LiveInfo) {
                Log.d("Live", "joinLive success")
            }
        })
    }
}
3. Exit the Live Room
When the audience leaves, call the leaveLive method of LiveListStore. The SDK will automatically stop playback and exit the room.
import io.trtc.tuikit.atomicxcore.api.live.LiveListStore
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import androidx.appcompat.app.AppCompatActivity
import android.util.Log
﻿
// YourAudienceActivity represents your audience viewing Activity
class YourAudienceActivity : AppCompatActivity() {
﻿
    // ... other code ...
﻿
    // Exit the live room
    private fun leaveLive() {
        LiveListStore.shared().leaveLive(object : CompletionHandler {
            override fun onSuccess() {
                Log.d("Live", "leaveLive success")
            }
﻿
            override fun onFailure(code: Int, desc: String) {
                Log.e("Live", "leaveLive error: $desc")
            }
        })
    }
﻿
    // Always call leaveLive when Activity is destroyed
    override fun onDestroy() {
        super.onDestroy()
        leaveLive()
        Log.d("Live", "YourAudienceActivity onDestroy")
    }
}
Step 3: Listen for Live Events
After joining a live room, you should handle passive events such as the host ending the stream or the audience being removed for violations. If you do not listen for these events, the audience UI may remain in an invalid state, impacting user experience.
Implement the LiveListListener interface and register it with LiveListStore:
import io.trtc.tuikit.atomicxcore.api.live.LiveEndedReason
import io.trtc.tuikit.atomicxcore.api.live.LiveKickedOutReason
import io.trtc.tuikit.atomicxcore.api.live.LiveListListener
import io.trtc.tuikit.atomicxcore.api.live.LiveListStore
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import android.util.Log
﻿
// YourAudienceActivity represents your audience viewing Activity
class YourAudienceActivity : AppCompatActivity() {

    // ... (coreView, liveId, setupUI, joinLive, leaveLive, etc.) ...
﻿
    // 2. Define a LiveListListener instance
    private val liveListListener = object : LiveListListener() {
        override fun onLiveEnded(liveID: String, reason: LiveEndedReason, message: String) {
            // Listen for live stream end
            Log.d("Live", "Live ended. liveID: $liveID, reason: $reason, message: $message")
            // Handle exit logic, e.g., finish()
            // finish()
        }
﻿
        override fun onKickedOutOfLive(liveID: String, reason: LiveKickedOutReason, message: String) {
            // Listen for being kicked out of the live room
            Log.d("Live", "Kicked out of live. liveID: $liveID, reason: $reason, message: $message")
            // Handle exit logic
            // finish()
        }
    }
﻿
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setupUI()

        // 3. Register the listener
        LiveListStore.shared().addLiveListListener(liveListListener)
﻿
        // 4. Join the live room
        joinLive()
    }

    // ... joinLive() and leaveLive() methods ...
﻿
    override fun onDestroy() {
        super.onDestroy()
        // 5. Remove the listener to prevent memory leaks
        LiveListStore.shared().removeLiveListListener(liveListListener)
        leaveLive()
        Log.d("Live", "YourAudienceActivity onDestroy")
    }
}
Run and Test
After integrating LiveCoreView, you will have a pure video rendering view with full live streaming capabilities, but without any interactive UI. To add interactive features, see Enriching the Live Streaming Scene.
﻿

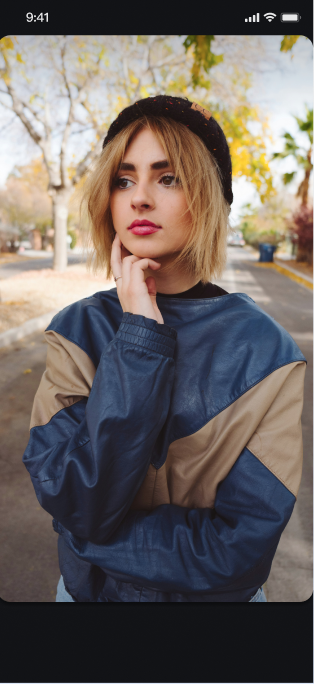

Dynamic Grid Layout

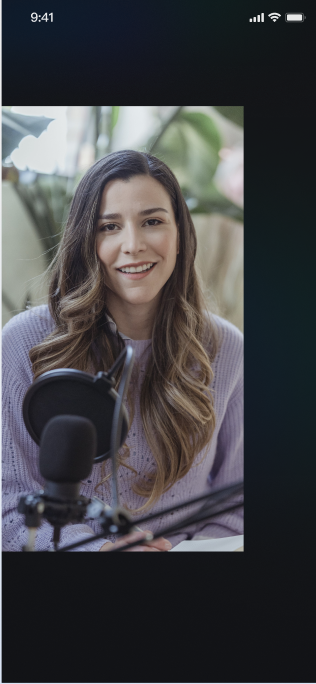

Floating Window Layout

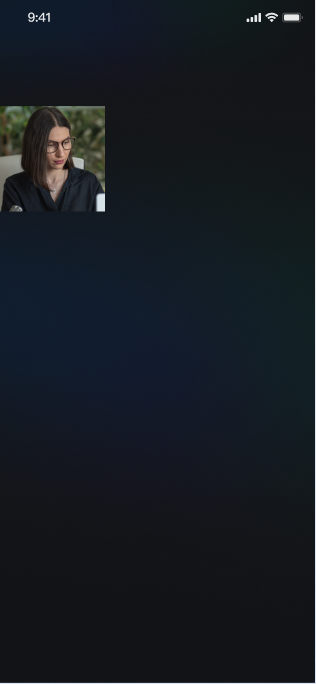

Fixed Grid Layout

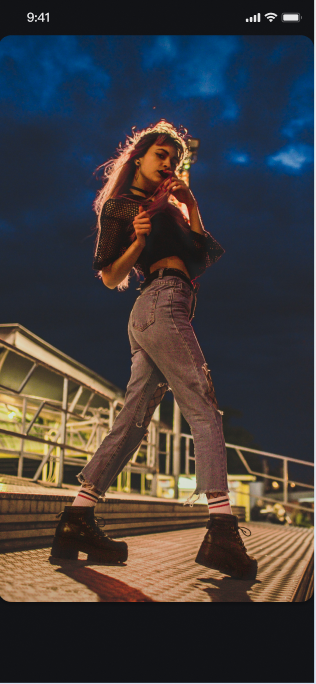

Fixed Window Layout
﻿Template
﻿
VideoDynamicGrid9Seats
VideoDynamicFloat7Seats
VideoFixedGrid9Seats
VideoFixedFloat7Seats
Description
Default layout; grid size adjusts dynamically based on number of co-hosts.
Co-hosts are displayed as floating windows.
Fixed number of co-hosts; each occupies a fixed grid.
Fixed number of co-hosts; guests are displayed as fixed windows.
Example
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
Advanced Features
Synchronizing Custom State in Live Streaming Room
In Live Streaming Room, hosts may need to synchronize custom information with all participants, such as the current room topic or background music. The metaData feature of LiveListStore supports this use case.
Implementation
On the host side, set custom information using the updateLiveMetaData API. AtomicXCore synchronizes these changes in real time to all participants. On the audience side, subscribe to LiveListState.currentLive and listen for changes in metaData. When a relevant key is updated, parse its value and update your business logic.
Example Code
import io.trtc.tuikit.atomicxcore.api.LiveListStore
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import com.google.gson.Gson
import io.trtc.tuikit.atomicxcore.api.MetaDataCompletionHandler
import io.trtc.tuikit.atomicxcore.api.LiveListStore
﻿
// 1. Define a background music model (using data class)
data class MusicModel(
    val musicId: String,
    val musicName: String
)
﻿
// 2. Host side: Add a method to push background music in your Host business logic
fun updateBackgroundMusic(music: MusicModel) {
    val gson = Gson()
    val jsonString = gson.toJson(music) ?: ""
﻿
    // The metaData to be updated
    val metaData = hashMapOf("music_info" to jsonString)
﻿
    // Update metaData
    LiveListStore.shared()
        .updateLiveMetaData(
            metaData,
            object : CompletionHandler {
                override fun onSuccess() {
                    print("Background music ${music.musicName} pushed successfully")
                }
﻿
                override fun onFailure(code: Int, desc: String) {
                    print("Failed to push background music: $desc")
                }
            }
        )
}
﻿
// 3. Audience side: Add a method to listen for background music changes in your Audience business logic
private fun subscribeToDataUpdates() {
    CoroutineScope(Dispatchers.Main).launch {
        LiveListStore.shared()
            .liveState
            .currentLive
            .map { it.metaData }
            .collect {
                val musicInfo = it["music_info"]
                // Refresh business state, e.g., play new background music
            }
    }
}
Enriching the Live Streaming Scene
Once the basic live streaming functionality is in place, refer to the following guides to add interactive features to your live stream:
Feature
Description
Store
Implementation Guide
Enable Audience Audio/Video Co-hosting
Audience can apply to join the host on stage for real-time video interaction.
﻿CoGuestStore﻿
﻿Implementation Guide﻿
Enable Host Cross-room PK
Hosts from different rooms can connect for interaction or PK.
﻿CoHostStore﻿
﻿BattleStore﻿
﻿Implementation Guide﻿
Add Bullet Chat Feature
Audience can send and receive real-time text messages in the live room.
﻿BarrageStore﻿
﻿Implementation Guide﻿
Build a Gift Giving System
Audience can send virtual gifts to the host, increasing engagement and fun.
﻿GiftStore﻿
﻿Implementation Guide﻿
API Documentation
Store/Component
Description
API Reference
LiveCoreView
Core view component for displaying and interacting with live video streams. Handles video rendering and view widgets, supports host streaming, audience co-hosting, host connections, and more.
﻿API Documentation﻿
LiveListStore
Manages the full lifecycle of live rooms: create/join/leave/destroy rooms, query room list, modify live info (name, announcement, etc.), and listen to live status events (e.g., kicked out, ended).
﻿API Documentation﻿
DeviceStore
Controls audio/video devices: microphone (on/off, volume), camera (on/off, switch, quality), screen sharing, and real-time device status monitoring.
﻿API Documentation﻿
CoGuestStore
Manages audience co-hosting: apply/invite/accept/reject co-host requests, member permission control (microphone/camera), and status synchronization.
﻿API Documentation﻿
CoHostStore
Handles host cross-room connections: supports multiple layout templates (dynamic grid, etc.), initiates/accepts/rejects connections, and manages co-host interactions.
﻿API Documentation﻿
BattleStore
Manages host PK battles: initiate PK (set duration/opponent), manage PK status (start/end), synchronize scores, and listen for battle results.
﻿API Documentation﻿
GiftStore
Handles gift interactions: get gift list, send/receive gifts, and listen for gift events (including sender and gift details).
﻿API Documentation﻿
BarrageStore
Supports live chat: send text/custom danmaku, maintain danmaku list, and monitor danmaku status in real time.
﻿API Documentation﻿
LikeStore
Handles like interactions: send likes, listen for like events, and synchronize total like count.
﻿API Documentation﻿
LiveAudienceStore
Manages audience: get real-time audience list (ID/name/avatar), count audience, and listen for join/leave events.
﻿API Documentation﻿
AudioEffectStore
Audio effects: voice change (child/male), reverb (KTV, etc.), ear return adjustment, and real-time effect switching.
﻿API Documentation﻿
BaseBeautyStore
Basic beauty filters: adjust smoothing/whitening/rosiness (0-9), reset beauty status, and synchronize effect parameters.
﻿API Documentation﻿
FAQs
Why is the screen black with no video after the host calls createLive or the audience calls joinLive?
Check setLiveID: Ensure you have set the correct liveID for the LiveCoreView instance before calling start or join methods.
Check device permissions: Ensure the app has system permissions for camera and microphone usage.
Check the host side: Has the host called DeviceStore.shared().openLocalCamera(true)to enable the camera?
Check the network: Ensure the device has a stable network connection.
After the host enables the camera, why is there a local video preview after starting the stream, but a black screen before starting?
Check the host side: Make sure the host streaming view (LiveCoreView) has its viewType set to PUSH_VIEW.
Check the audience side: Make sure the audience playback view (LiveCoreView) has its viewType set to PLAY_VIEW.
What restrictions and rules apply to updateLiveMetaData?
To maintain system stability and efficiency, metaData usage follows these rules:
Permissions: Only hosts and administrators can call updateLiveMetaData. Regular audience members cannot.
Quantity and Size Limits:
Each room supports up to 10 keys.
Each key can be up to 50 bytes; each value up to 2KB.
The total size of all values in a room cannot exceed 16KB.
Conflict Resolution: The update mechanism is "last write wins". If multiple administrators modify the same key in quick succession, the last change takes effect. Avoid concurrent modifications to the same key in your business logic.

Help and Support

Was this page helpful?

You can also Contact sales or Submit a Ticket for help.

Help us improve! Rate your documentation experience in 5 mins.

Feedback

tencent cloud

Tencent Real-Time Communication

Quick Start (Android)

Core Features

Core Concepts

Preparation

Step 1: Activate the Service

Step 2: Import AtomicXCore into Your Project

Step 3: Implement Login Logic

Building a Basic Live Room

Step 1: Implement Host Video Streaming

Step 2: Implement Audience Join and Watch

Step 3: Listen for Live Events

Run and Test

Advanced Features

Synchronizing Custom State in Live Streaming Room

Implementation

Example Code

Enriching the Live Streaming Scene

API Documentation

FAQs

Why is the screen black with no video after the host calls createLive or the audience calls joinLive?

After the host enables the camera, why is there a local video preview after starting the stream, but a black screen before starting?

What restrictions and rules apply to `updateLiveMetaData`?

Help and Support

Core Concept	Core Responsibility	Key API / Property
LiveCoreView	Handles publishing, playing, and rendering audio/video streams. Provides adapter interfaces for integrating custom UI components (e.g., user info, PK progress bar).	`viewType`: `CoreViewType.PUSH_VIEW` (host publishing view) `CoreViewType.PLAY_VIEW` (audience playback view) `setLiveId()`: Binds the live room ID for this view. `setVideoViewAdapter():` Adapter for custom video display UI slots.
LiveListStore	Manages the complete live room lifecycle (create, join, leave), synchronizes state, and listens for passive events (e.g., live ended, kicked out).	`createLive()`: Start live stream as host. `endLive()`: End live stream as host. `joinLive()`: Audience joins live room. `leaveLive()`: Leave live room.
LiveInfo	Defines room parameters before going live, such as room ID, seat layout mode, max co-hosts, etc.	`liveID`: Unique room identifier. seatTemplate: Layout template.

Parameter	Type	Description
SDKAppID	Int	Get this from TRTC console > Application management.
UserID	String	The unique ID for the current user. Must contain only English letters, numbers, hyphens, and underscores.
userSig	String	A ticket for Tencent Cloud authentication. Please note: Development Environment: You can use the local `GenerateTestUserSig.genTestSig` function to generate a UserSig or generate a temporary UserSig via the UserSig Generation Tool. Production Environment: To prevent key leakage, you must use a server-side method to generate UserSig. For details, see Generating UserSig on the Server. For more information, see How to Calculate and Use UserSig.

Parameter Name	Type	Required	Description
`liveID`	`String`	Yes	Unique identifier for the live room.
`liveName`	`String`	No	Title of the live room.
`notice`	`String`	No	Announcement message for the live room.
`isMessageDisable`	`Boolean`	No	Disable chat (true = yes, false = no).
`isPublicVisible`	`Boolean`	No	Room is publicly visible (true = yes, false = no).
`seatMode`	TakeSeatMode	No	Seat mode (FREE: free to take seat, APPLY: apply to take seat).
`seatTemplate`	SeatLayoutTemplate	Yes	Seat layout template.
`coverURL`	`String`	No	Cover image URL for the live room.
`backgroundURL`	`String`	No	Background image URL for the live room.
`categoryList`	`List`	No	List of category tags for the live room.
`activityStatus`	`Int`	No	Live activity status.
`isGiftEnabled`	`Boolean`	No	Whether to enable gift functionality (true: yes, false: no).

	Dynamic Grid Layout	Floating Window Layout	Fixed Grid Layout	Fixed Window Layout
Template	VideoDynamicGrid9Seats	VideoDynamicFloat7Seats	VideoFixedGrid9Seats	VideoFixedFloat7Seats
Description	Default layout; grid size adjusts dynamically based on number of co-hosts.	Co-hosts are displayed as floating windows.	Fixed number of co-hosts; each occupies a fixed grid.	Fixed number of co-hosts; guests are displayed as fixed windows.
Example

Feature	Description	Store	Implementation Guide
Enable Audience Audio/Video Co-hosting	Audience can apply to join the host on stage for real-time video interaction.	CoGuestStore	Implementation Guide
Enable Host Cross-room PK	Hosts from different rooms can connect for interaction or PK.	CoHostStore BattleStore	Implementation Guide
Add Bullet Chat Feature	Audience can send and receive real-time text messages in the live room.	BarrageStore	Implementation Guide
Build a Gift Giving System	Audience can send virtual gifts to the host, increasing engagement and fun.	GiftStore	Implementation Guide

Store/Component	Description	API Reference
LiveCoreView	Core view component for displaying and interacting with live video streams. Handles video rendering and view widgets, supports host streaming, audience co-hosting, host connections, and more.	API Documentation
LiveListStore	Manages the full lifecycle of live rooms: create/join/leave/destroy rooms, query room list, modify live info (name, announcement, etc.), and listen to live status events (e.g., kicked out, ended).	API Documentation
DeviceStore	Controls audio/video devices: microphone (on/off, volume), camera (on/off, switch, quality), screen sharing, and real-time device status monitoring.	API Documentation
CoGuestStore	Manages audience co-hosting: apply/invite/accept/reject co-host requests, member permission control (microphone/camera), and status synchronization.	API Documentation
CoHostStore	Handles host cross-room connections: supports multiple layout templates (dynamic grid, etc.), initiates/accepts/rejects connections, and manages co-host interactions.	API Documentation
BattleStore	Manages host PK battles: initiate PK (set duration/opponent), manage PK status (start/end), synchronize scores, and listen for battle results.	API Documentation
GiftStore	Handles gift interactions: get gift list, send/receive gifts, and listen for gift events (including sender and gift details).	API Documentation
BarrageStore	Supports live chat: send text/custom danmaku, maintain danmaku list, and monitor danmaku status in real time.	API Documentation
LikeStore	Handles like interactions: send likes, listen for like events, and synchronize total like count.	API Documentation
LiveAudienceStore	Manages audience: get real-time audience list (ID/name/avatar), count audience, and listen for join/leave events.	API Documentation
AudioEffectStore	Audio effects: voice change (child/male), reverb (KTV, etc.), ear return adjustment, and real-time effect switching.	API Documentation
BaseBeautyStore	Basic beauty filters: adjust smoothing/whitening/rosiness (0-9), reset beauty status, and synchronize effect parameters.	API Documentation
