Real-Time Session

Last updated: 2022-06-24 16:34:16

    Feature Description

    The real-time session feature focuses on the two key metrics of database proxy node CPU utilization and client connection quantity. It dynamically displays their change trends and continuously collects the data of database sessions, access sources, and active connection quantity.
    Through real-time session, you can quickly identify the CPU utilization of current sessions and efficiently locate logic issues about database session connections that are difficult to detect manually.

    Viewing Real-Time Session Statistics

    1. Log in to the TencentDB for Redis console.
    2. On the left sidebar, select Performance Optimization.

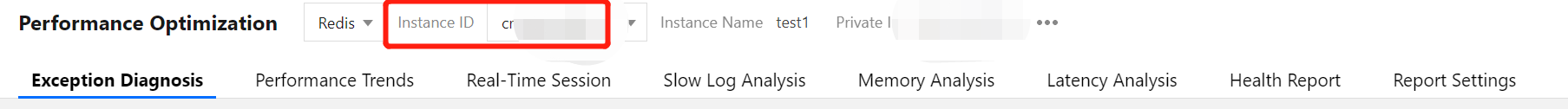

    3. At the top of the Performance Optimization page of DBbrain, select the target instance in the Instance ID drop-down list.
    4. Click the Real-Time Session tab and select the target proxy ID in the drop-down list in the top-left corner of the Performance Monitoring view based on the trend of CPU Utilization or Connections.
      In the top-right corner of the Performance Monitoring view, select the collection granularity of the monitoring data in the drop-down list next to Auto-Refresh, which is 5s by default and can also be set to 15s or 30s.
    5. View the real-time session details.

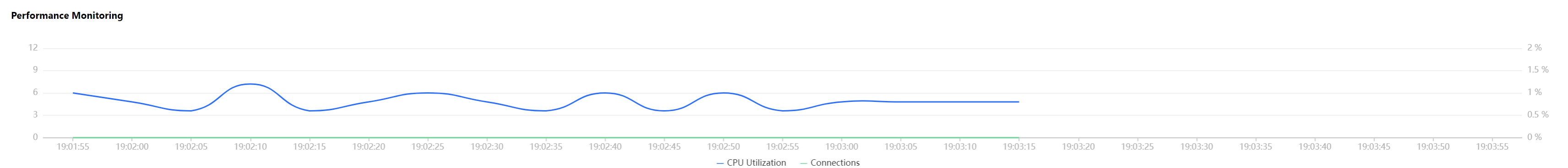

    • In the Performance Monitoring section, you can view the change trends of the current proxy node connections and CPU utilization.
    • In the Session Statistics section, you can view the database's statistics of current access sources, total connections, and active connections.

    One-Click Kill

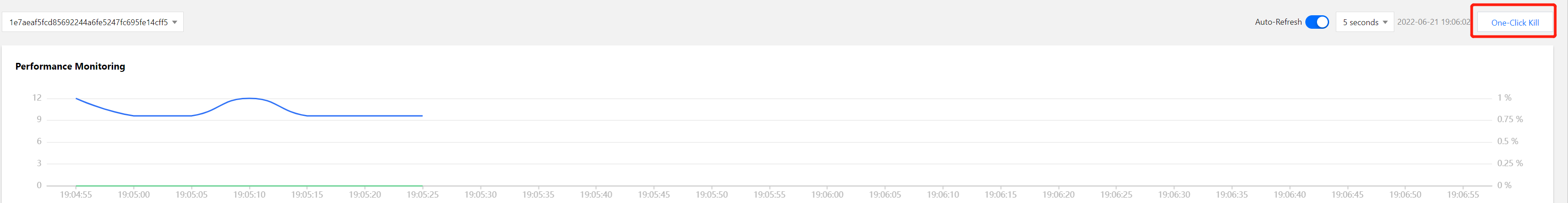

    You can click One-Click Kill to quickly kill all sessions.
