Viewing Monitoring Charts

Last updated: 2020-09-04 15:37:34

    Overview

    This document describes how to view monitoring charts by environment, API, and key, respectively, in the API Gateway console.

    Directions

    Viewing monitoring charts by environment

    1. Log in to the API Gateway console and click Service in the left sidebar to access the service list page.
    2. In the service list, click a service name to access the service details page.
    3. At the top of the service details page, click the Monitoring tab to access the page for viewing monitoring charts.

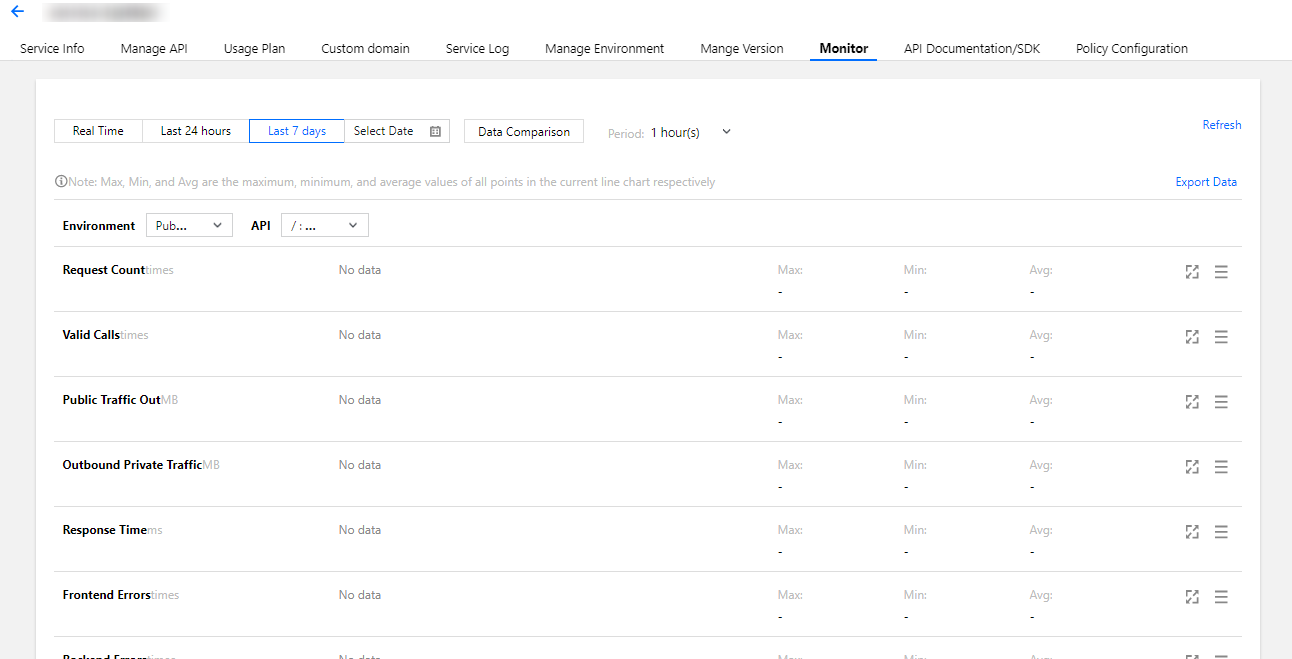

    4. Select an environment from the Environment drop-down list box and select All from the API drop-down list box. Then you can view the statistical monitoring information of all APIs in the corresponding environment, including the number of calls, traffic, response durations, and errors.

    Viewing monitoring charts by API

    1. Log in to the API Gateway console and click Service in the left sidebar to access the service list page.
    2. In the service list, click a service name to access the service details page.
    3. At the top of the service details page, click the Monitoring tab to access the page for viewing monitoring charts.
    4. Select an environment from the Environment drop-down list box and select an API from the API drop-down list box. Then you can view the statistical monitoring information of the API in the environment, including the number of calls, traffic, response durations, and errors.

    Viewing monitoring charts by key

    Prerequisites

    A key pair authentication API has been configured by referring to Key Pair Authentication, and the API or the service where the API resides has been bound to a usage plan.

    Directions

    1. Log in to the API Gateway console and click Service in the left sidebar to access the service list page.
    2. In the service list, click a service name to access the service details page.
    3. At the top of the service details page, click the Manage Environment tab to access the environment management page.
    4. On the environment management page, select an environment and click Enable Key Monitoring.
    5. At the top of the service details page, click the Monitoring tab to access the page for viewing monitoring charts.
    6. Select the environment for which key monitoring is enabled, select the key pair authentication API, and select a key pair. Then you can view the key monitoring information of the API in the environment to obtain the API call information.
