Before using Tencent Cloud API Gateway, you are recommended to read its Product Overview, Use Limits, and Purchase Guide.

In the API Gateway Console, you can quickly perform operations such as creating services, creating/debugging APIs, making releases, and implementing access by following the steps below:

Step 1. Sign up for a Tencent Cloud account

If you already have a Tencent Cloud account, you can ignore this step.

Step 2. Verify your identity

If you have already done so, you can ignore this step.
For more information on how to verify your identity, please see Identify Verification Overview.

Step 3. Log in to API Gateway

Step 4. Create a service

  1. In the API Gateway Console, click Service on the left sidebar to enter the service list page.

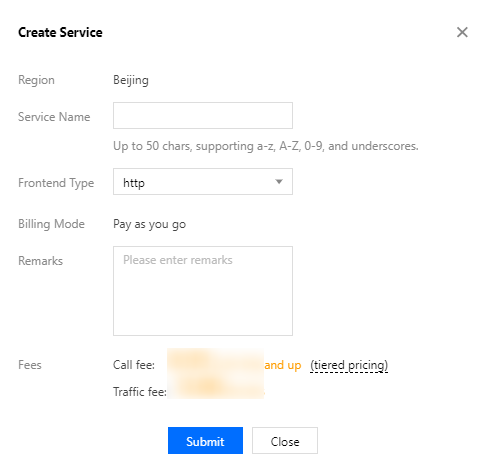

  2. Click Create and enter the service details.
    • Service Name: this is required and can contain up to 50 characters out of a-z, A-Z, 0-9, and _. exampleservice is entered here as an example.
    • Frontend Type: protocol type supported by the service. HTTP is selected here as an example.
    • Remarks: remarks of the service. Testing is entered here as an example.
  3. Click Submit to create the service.

Step 5. Create an API with Mock as the backend type

  1. In the service list, click a service name to enter the service details page.
  2. On the service details page, click Manage API to enter the API list page.
  3. Click General API > Create and enter the frontend configuration information of the API.
    • API Name: name of an API. exampleapi is entered here as an example.
    • Frontend Type: HTTP and WebSocket are supported. HTTP is selected here as an example.
    • Path: access path of the API. / is entered here as an example.
    • Request Method: request method of the API. GET is selected here as an example.
    • Authentication Type: three types of authentication are currently supported: no authentication, OAuth 2.0, and key pair. No authentication is selected here as an example.
    • CORS Support: whether the API supports cross-origin resource sharing. Yes is selected here as an example.
    • Remarks: remarks of the API. Testing is entered here as an example.
    • Parameter Configuration: frontend parameters of the API. Nothing is entered here.

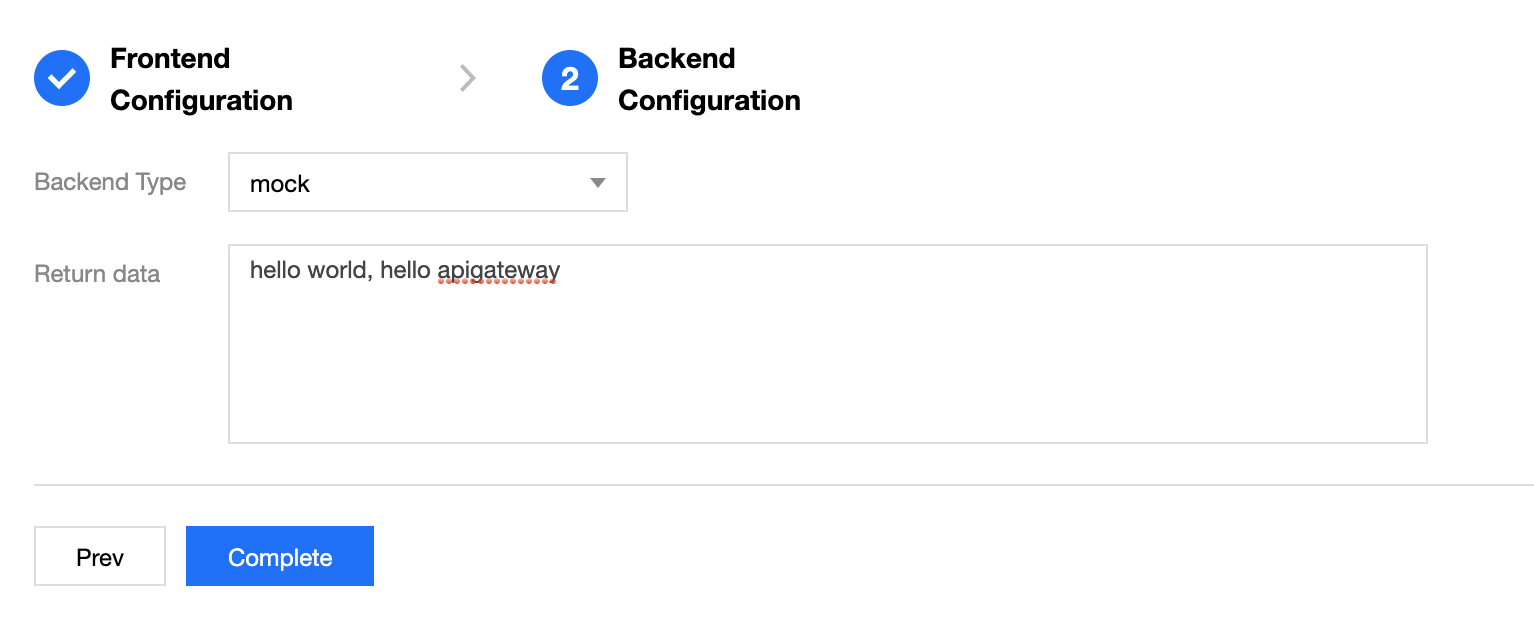

  4. Click Next and enter the backend configuration information of the API.
    • Backend Type: type of the backend service of the API. mock is selected here as an example.
    • Returned Data: data to be returned by Mock. hello world, hello apigateway is entered here as an example.
  5. Click Complete to create the API with Mock as the backend type.

Step 6. Debug the API

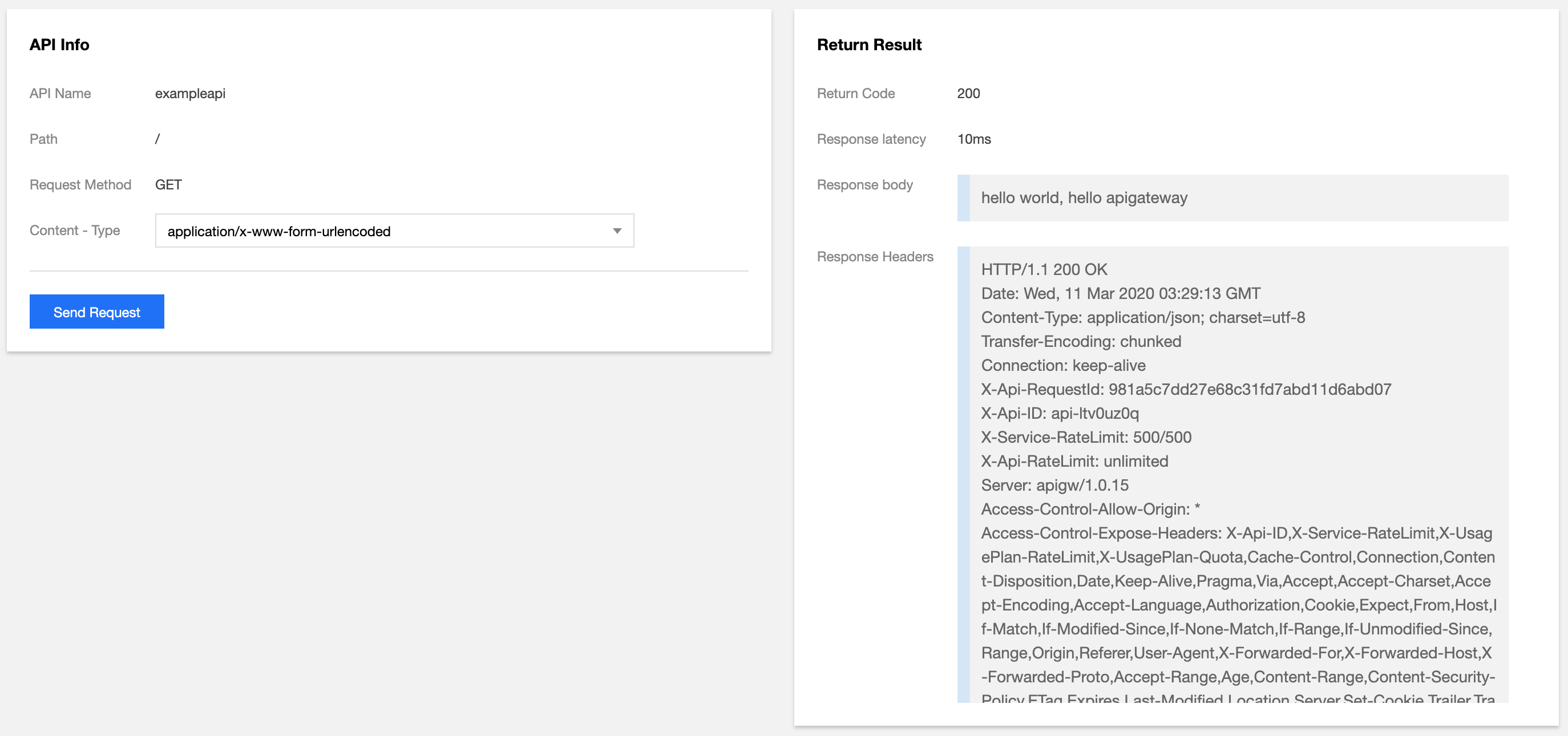

  1. Find the API just created in step 5 on the API list page and click Debug in the "Operation" column to enter the API debugging page.
  2. Select application/x-www-form-urlencoded as the Content-Type.
  3. Click Send Request and view the result returned after debugging.

Step 7. Publish the service

A created service is in unpublished state by default and can be normally accessed only after it is published.

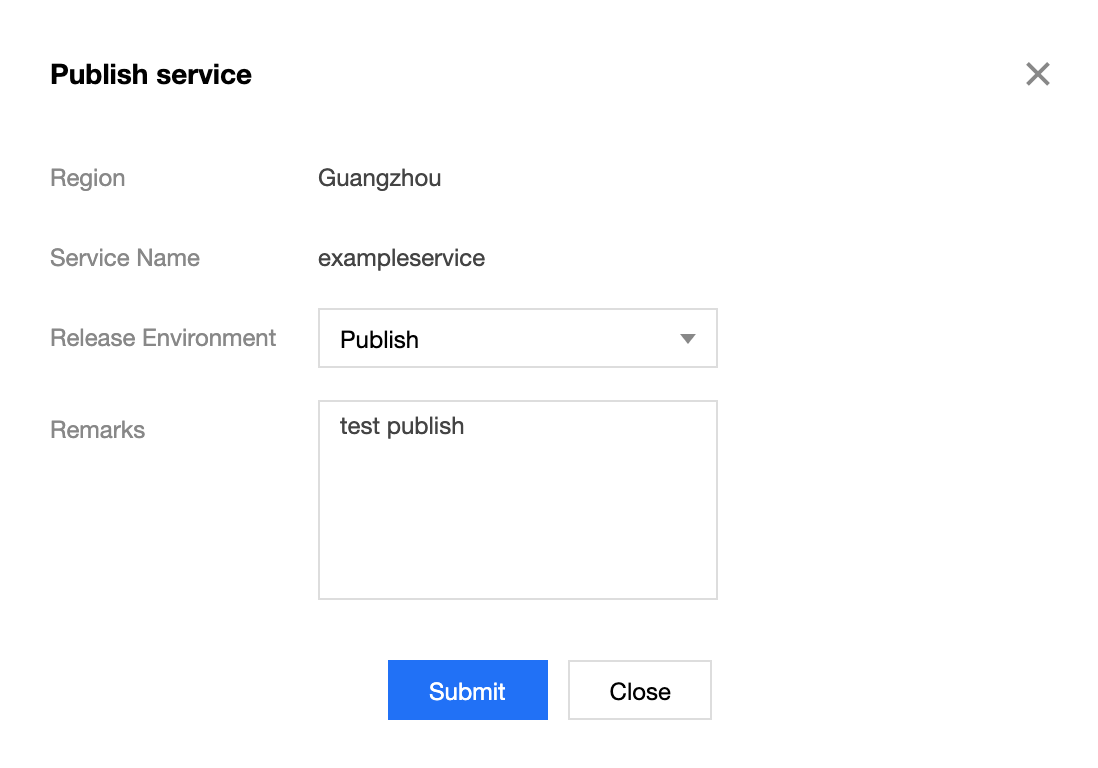

  1. Find the service just created on the service list page, click Publish in the "Operation" column, and enter the service release information.
    • Environment: environment in which the service is published. The release environment is selected here.
    • Remarks: remarks of the service release. Release for testing is entered here as an example.
  2. Click Submit to publish the service.
  3. After the service is published, you can access the API at the sub-domain name provided by the service.

Troubleshooting

If you have any questions, please follow the steps below for solutions:

  1. View FAQs to find a solution.
  2. If you can't find a satisfactory answer, please contact us by submitting a ticket.

For more information on how to use the API Gateway Console, such as viewing logs, viewing monitoring data, or setting a traffic control policy, please see Operation Guide.
