This guide walks you through integrating TUIKit Compose and sending your first message.
Development Environment Requirements
Android Studio Ladybug | Version 2024.2.1 or later
Android 5.0 or higher
Gradle 8.9 or higher
JDK 17 or higher
Prerequisites
Activate the Service
1. Log in to the Console. If you already have an application, note down its SDKAppID and SDKSecretKey, then proceed to the next section.

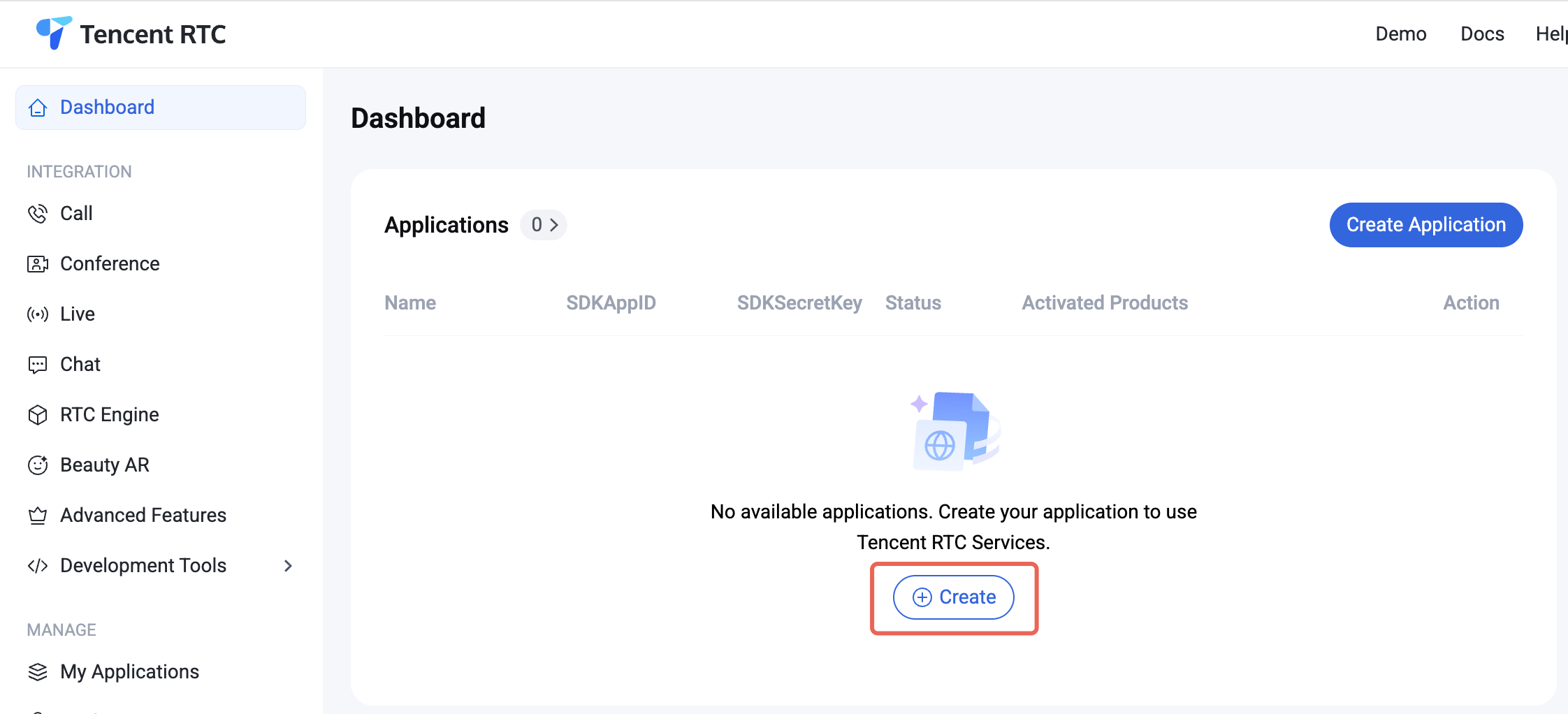

2. Click Create in the overview panel to start a new application.
﻿

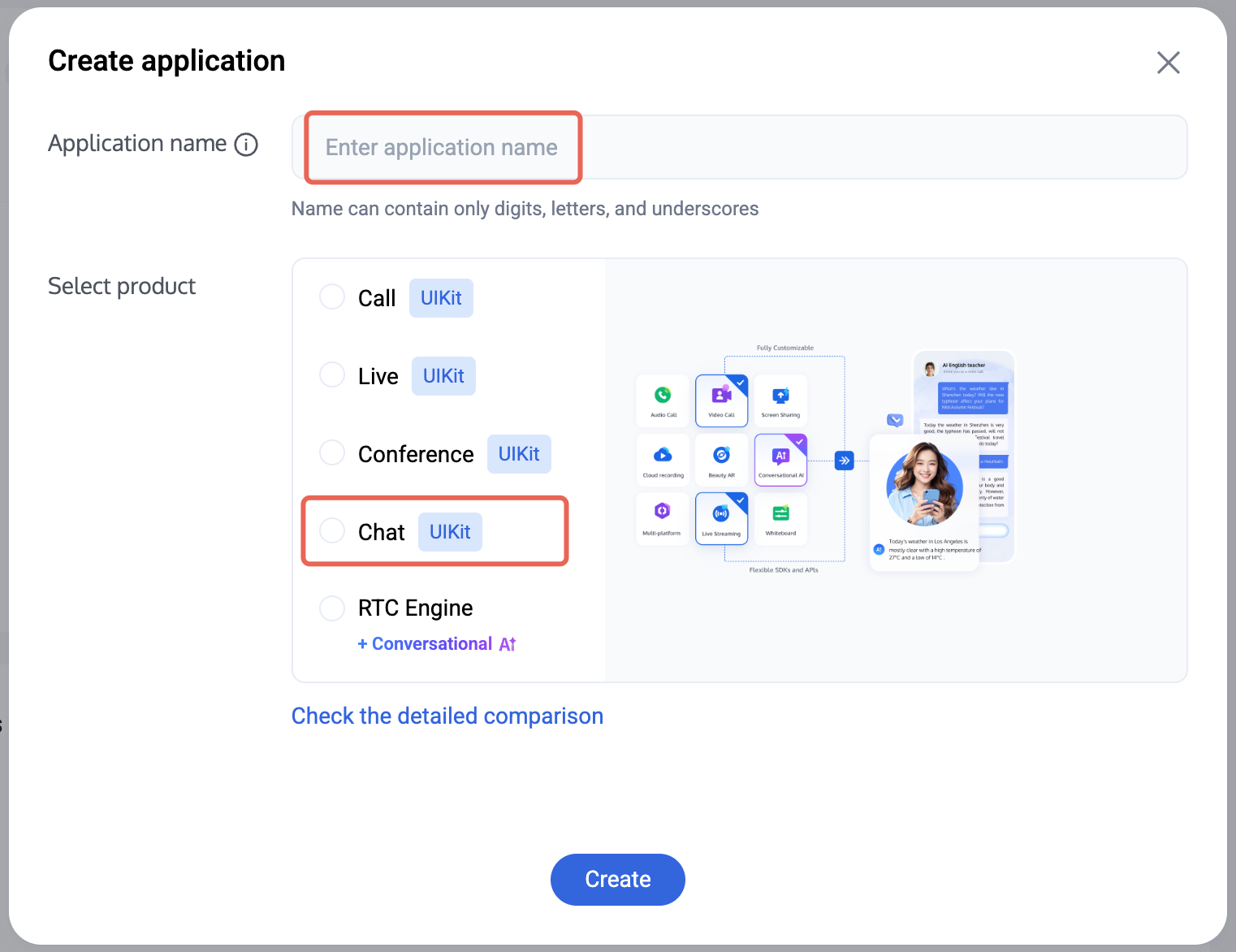

3. In the application creation dialog, enter the Application Name and select Chat as the product.
﻿

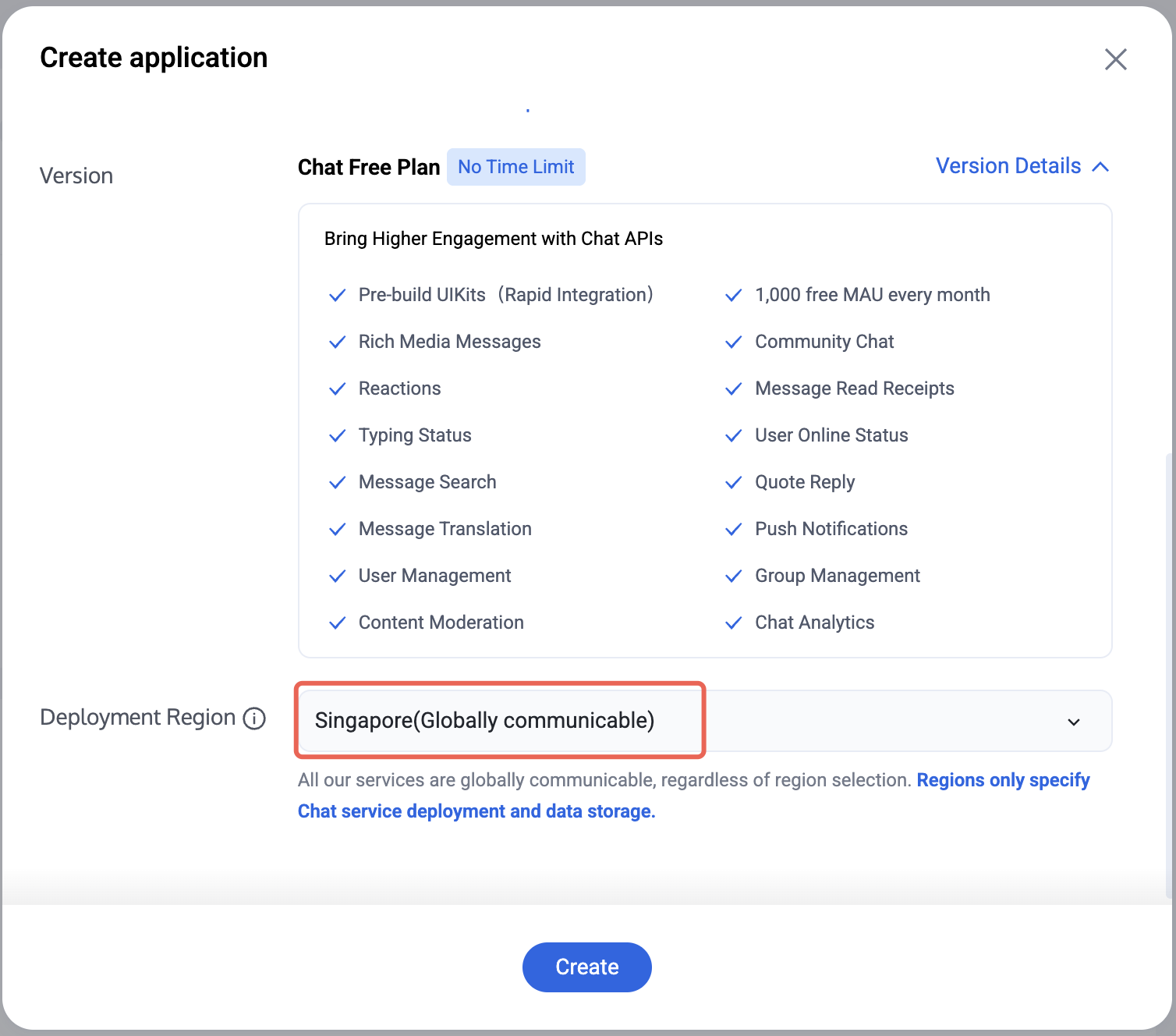

4. After choosing the product, select the Deployment Region as needed.
﻿

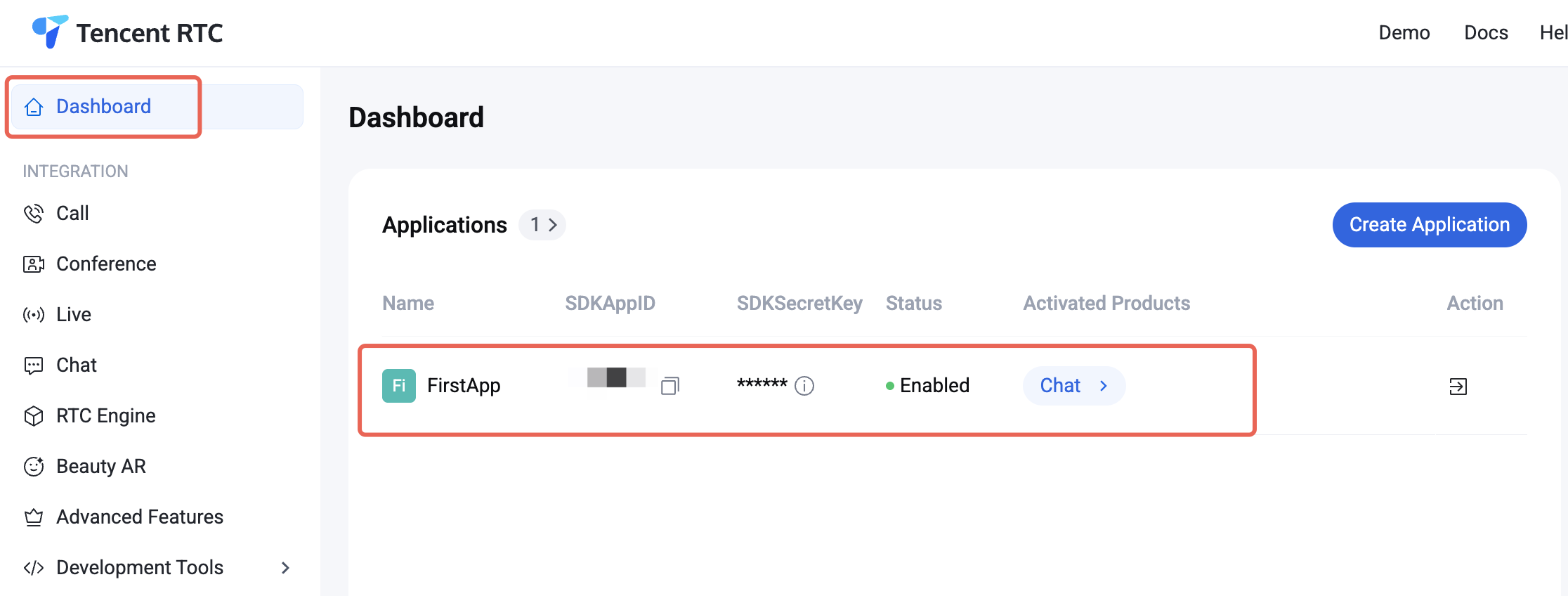

5. After the application is created, locate the SDKAppID and SDKSecretKey in the console overview panel. You will need both to run the Demo.
﻿
Prohibited：
Secure your SDKSecretKey to protect your Application from unauthorized access.
Create Accounts
You can create accounts using either of the following methods:
Client Registration
Console Registration
When logging in to TUIKit, provide a new UserID. TUIKit automatically registers the UserID for you.
Steps:

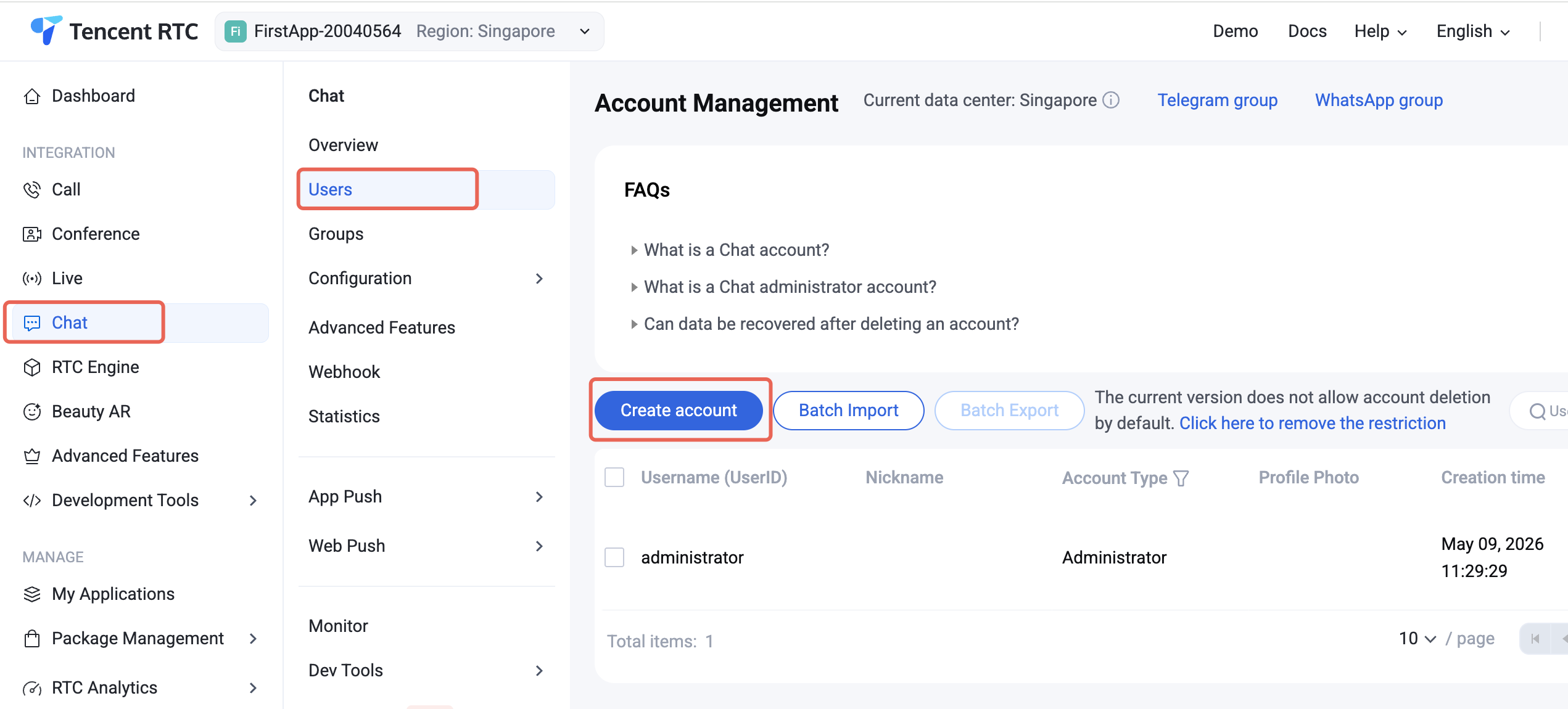

1. Navigate to the Chat > Account Management page.

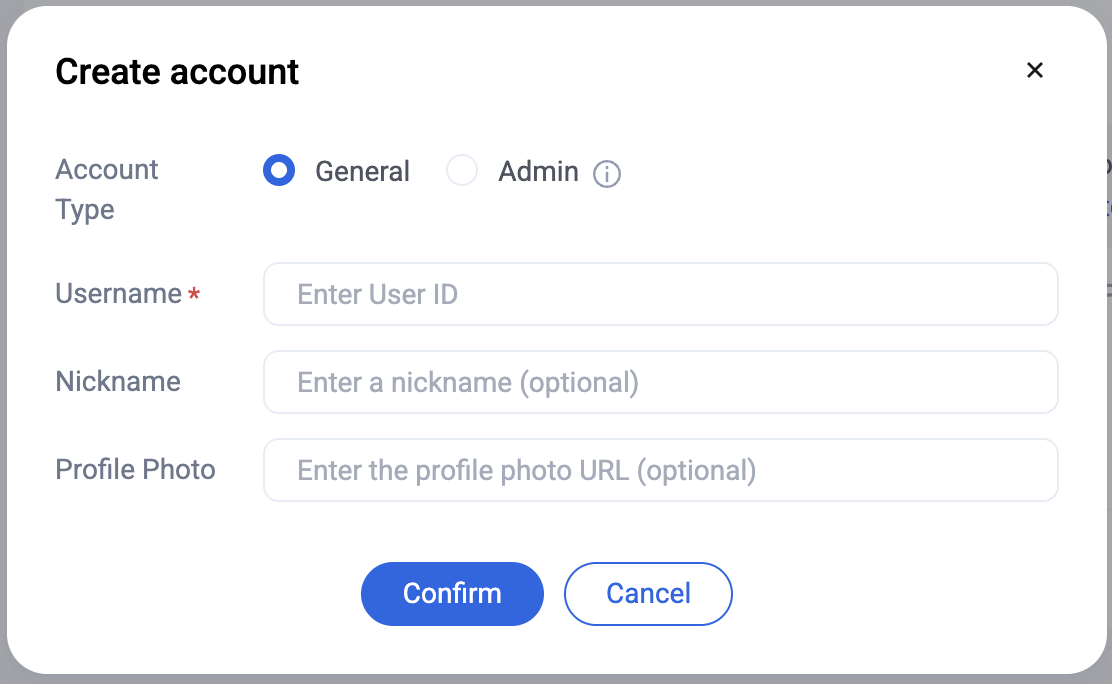

2. Click "Create Account" to open the account creation dialog.
﻿
3. For regular users, select "Regular Account". We recommend setting a nickname to help display users distinctly in the UI.
﻿
Note：
You need at least two users to send messages. Create at least two accounts at this step, and record their userIDs for use in later steps.
Generate UserSig

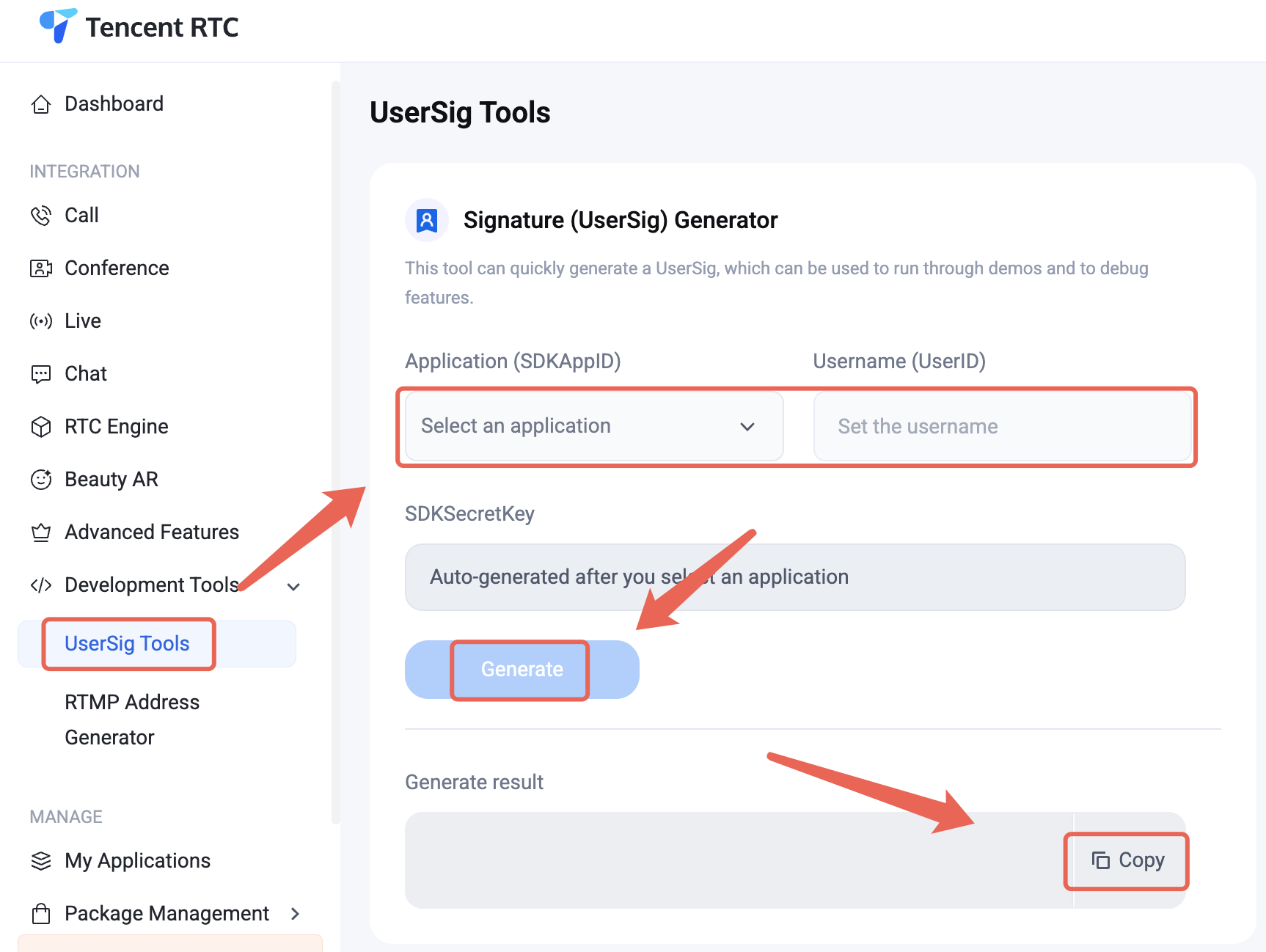

1. Log in to Console > Developer Tools > UserSig Tool.
2. In the UserSig generation tool, select your application, input the UserID, and click "Generate". The signature is valid for 180 days by default. Click "Copy" to save the signature.
﻿
Note：
For more UserSig operations, see UserSig Generation & Verification.
Integrate the TUIKit
For detailed integration steps, refer to Full Feature Integration.
Notice：
1. If you are integrating TUIKit Compose into a new Android project, follow the steps below to send your first message.
2. If you are integrating TUIKit Compose into an existing project, keep your original UI code and refer only to the login and chat logic shown below.
Log in
To use TUIKit Compose features, log in to a user account using the login API from LoginStore. There are two scenarios:
If you have not created user accounts in the console beforehand, log in with user1 and user2 sequentially using LoginStore. Finally, ensure user1 is online.
If you have already created user1 and user2 in the console, log in with user1 only.
Note：
1. After logging in as user1, you can send messages to user2. User2 does not need to log in; Chat allows sending C2C Messages between users, friends, and strangers by default.
2. For interactive chat between user1 and user2, log in as user2 on another device and join the chat interface with user1.
Example:
 // API location: io.trtc.tuikit.atomicxcore.api.login.LoginStore
 LoginStore.shared.login(
     activity,       // Activity context
     sdkAppID,       // Int, SDK application ID
     userID,         // String, User ID
     userSig,        // String, User signature
     object : CompletionHandler {
         override fun onSuccess() {
             // Login successful
         }
         override fun onFailure(code: Int, desc: String) {
             // Login failed
         }
     }
 )
Load the Chat Interface
As an example, use an Activity that handles the entire login process and loads the chat interface. The app launches this Activity at startup.
If you use the sample code below, fill in these parameters:
sdkAppID: The SDKAppID obtained earlier.
senderUserID: The userID of the sender (user1).
senderUserSig: The UserSig generated for the sender.
receiverUserID: The userID of the receiver.
 Sample code:
   // ChatDemoActivity.kt
   import android.os.Bundle
   import androidx.activity.compose.setContent
   import androidx.appcompat.app.AppCompatActivity
   import androidx.compose.foundation.background
   import androidx.compose.foundation.layout.Box
   import androidx.compose.foundation.layout.Column
   import androidx.compose.foundation.layout.fillMaxSize
   import androidx.compose.foundation.layout.fillMaxWidth
   import androidx.compose.foundation.layout.navigationBarsPadding
   import androidx.compose.foundation.layout.padding
   import androidx.compose.foundation.layout.statusBarsPadding
   import androidx.compose.material3.CircularProgressIndicator
   import androidx.compose.material3.Text
   import androidx.compose.runtime.getValue
   import androidx.compose.runtime.mutableStateOf
   import androidx.compose.runtime.remember
   import androidx.compose.runtime.setValue
   import androidx.compose.ui.Alignment
   import androidx.compose.ui.Modifier
   import io.trtc.tuikit.atomicx.basecomponent.theme.LocalTheme
   import io.trtc.tuikit.atomicx.messageinput.ui.MessageInput
   import io.trtc.tuikit.atomicx.messagelist.ui.MessageList
   import io.trtc.tuikit.atomicxcore.api.CompletionHandler
   import io.trtc.tuikit.atomicxcore.api.login.LoginStore
﻿
   class ChatDemoActivity : AppCompatActivity() {
﻿
       private val sdkAppID: Int = 1234567890 // TODO: Enter your SDKAppID here.
       private val senderUserID = "" // TODO: Enter your userID here (sender).
       private val senderUserSig = "" // TODO: Enter your generated UserSig here.
       private val receiverUserID = "" // TODO: Enter the receiver's userID here.
﻿
       // C2C conversationID: "c2c_${userID}", Group conversationID: "group_${groupID}"
       private val conversationID: String get() = "c2c_${receiverUserID}"
﻿
       override fun onCreate(savedInstanceState: Bundle?) {
           super.onCreate(savedInstanceState)
           login()
       }
﻿
       private fun login() {
           LoginStore.shared.login(this, sdkAppID, senderUserID, senderUserSig, object : CompletionHandler {
               override fun onSuccess() {
                   showChatPage()
               }
               override fun onFailure(code: Int, desc: String) {
                   // Handle login failure
               }
           })
       }
﻿
       private fun showChatPage() {
           setContent {
               val colors = LocalTheme.current.colors
               Column(
                   modifier = Modifier
                       .fillMaxSize()
                       .background(color = colors.bgColorOperate)
                       .statusBarsPadding()
               ) {
                   // MessageList
                   Box(modifier = Modifier.weight(1f)) {
                       MessageList(
                           conversationID = conversationID,
                           onUserClick = { userID ->
                               // Handle user avatar click
                           }
                       )
                   }
                   // MessageInput
                   MessageInput(
                       conversationID = conversationID,
                       modifier = Modifier.navigationBarsPadding()
                   )
               }
           }
       }
   }
Send Your First Message

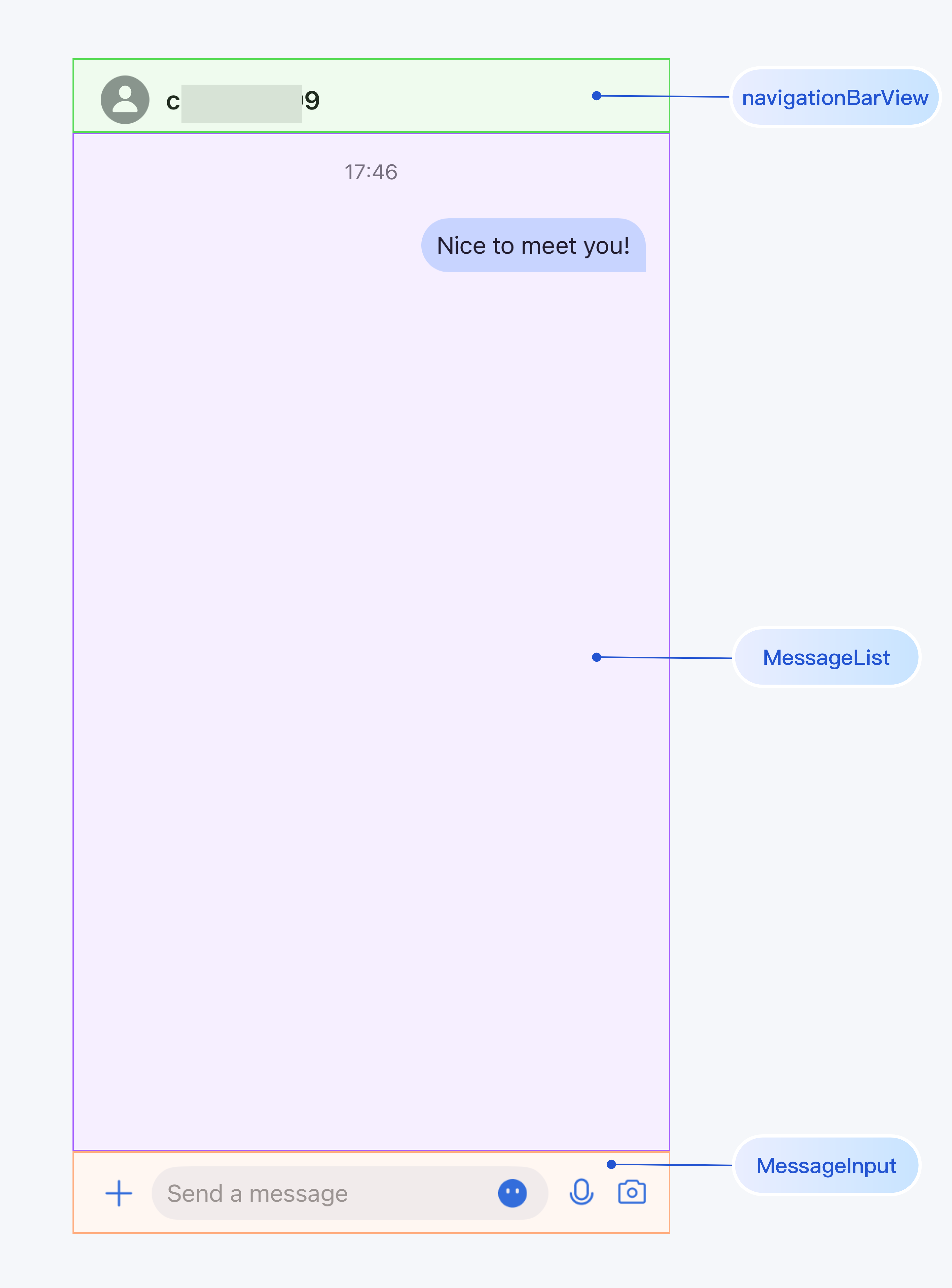

After completing the steps above, the app will automatically log in and load the chat interface at startup. Tap the input box to send your first message:
﻿
﻿
﻿
Contact Us
If you have any questions or feedback during integration or usage, please contact us.
﻿
