This document describes how to quickly run the TRTC demo for Windows.

Environment Requirements

Developing for Windows using C++

• Microsoft Visual Studio (VS) 2015 or above (2015 is recommended)
• TRTC SDK for Windows 8.0 or above (8.1 is recommended)

Developing for Windows using C#

• VS 2015 or above (2017 is recommended)
• .Net Framework 4.0 or above (4.0 is recommended)

Developing for Windows using Qt

• VS 2015 or above (2015 is recommended)
• Find the right version of Qt add-in for your VS on the official website, and download and install the VSIX file.
• Open VS, in the menu bar, select QT VS Tools > Qt Options > Qt Versions, and add an MSVC compiler.
• Copy all the DLL files in SDK/CPlusPlus/Win32/lib to the debug/release folder of the project directory.

  Note：

  The debug/release folder is created automatically after environment setup is completed in VS.

Prerequisites

You have signed up for a Tencent Cloud account.

Directions

Step 1. Create an application

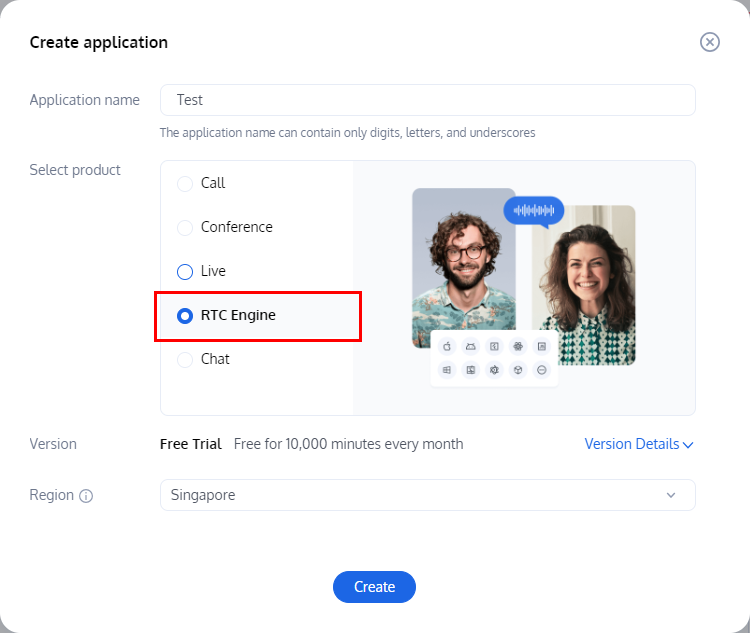

1. Log in to the TRTC console and select Development Assistance > Demo Quick Run.
2. Select New and enter an application name such as TestTRTC. If you have already created an application, select Existing.
3. Add or edit tags according to your actual business needs and click Create.


   Note：

   • An application name can contain up to 15 characters. Only digits, letters, Chinese characters, and underscores are allowed.
   • Tags are used to identify and organize your Tencent Cloud resources. For example, an enterprise may have multiple business units, each of which has one or more TRTC applications. In this case, the enterprise can tag TRTC applications to mark out the unit information. Tags are optional and can be added or edited according to your actual business needs.

Step 2. Download the SDK and demo source code

1. Download the SDK and demo source code for your platform.
2. Click Next.


Step 3. Configure demo project files

1. In the Modify Configuration step, select the development platform in line with the source package downloaded.
2. Find and open the GenerateTestUserSig file:

   Platform	Relative Path to File
   Windows (C++)	Windows/DuilibDemo/GenerateTestUserSig.h
   Windows (C#)	Windows/CSharpDemo/GenerateTestUserSig.cs

3. Set parameters in the GenerateTestUserSig.js file:
   • SDKAPPID: `0` by default. Set it to the actual `SDKAppID`.
   • SECRETKEY: left empty by default. Set it to the actual key.

4. Click Next to complete the creation.
5. After compilation, click Return to Overview Page.

Note：

• The method for generating UserSig described in this document involves configuring SECRETKEY in client code. In this method, SECRETKEY may be easily decompiled and reversed, and if your key is leaked, attackers can steal your Tencent Cloud traffic. Therefore, this method is only suitable for the local execution and debugging of the demo.
• The correct UserSig distribution method is to integrate the calculation code of UserSig into your server and provide an application-oriented API. When UserSig is needed, your application can send a request to the business server for a dynamic UserSig. For more information, please see How do I calculate UserSig on the server?.

Step 4. Compile and run

• Windows (C++):
  Use VS (VS 2015 is recommended) to open DuilibDemo\TRTCDuilibDemo.sln in the source code directory, and compile and run the demo project. We recommend building the project in the release mode for x86.
• Windows (C#):
  Use VS (VS 2017 is recommended) to open CSharpDemo\TRTCCSharpDemo.sln in the source code directory, and compile and run the demo project. We recommend building the project in the release mode for x86.
• Windows (QT):
  Use VS (VS 2015 is recommended) to open
  QTDemo\QTDemo.pro in the source code directory, and compile and run the QTDemo project.

FAQs

1. Only public and private keys can be obtained when I try to view the key. How do I get a key?

TRTC SDK 6.6 (August 2019) and later versions use the new signature algorithm HMAC-SHA256. If your application was created before August 2019, you need to upgrade the signature algorithm to get a new key. Without upgrading, you can continue to use the old algorithm ECDSA-SHA256. After upgrading, you can switch between the new and old algorithms as needed.

Upgrade/Switch:

1. Log in to the TRTC console.
2. Click Application Management in the left navigation pane, find your application, and click Application Info.
3. Select the Quick Start tab and click Upgrade, asymmetric encryption, or HMAC-SHA256 in Step 2: obtain the secret key to issue UserSig.

• Upgrade.
• Switch to the old algorithm ECDSA-SHA256:

• Switch to the new algorithm HMAC-SHA256:


2. The demo is running on two devices, but why can't they display the images of each other?

Make sure that the two devices use different UserIDs. With TRTC, you cannot use the same UserID on two devices simultaneously unless the SDKAppIDs are different.

3. What are firewall restrictions does the SDK face?

The SDK uses the UDP protocol for audio/video transmission and therefore cannot be used in office networks that block UDP. If you encounter such a problem, please see How to Deal with Firewall Restrictions.
