Enabling Database Proxy Read/Write Separation

Last updated: 2022-03-23 10:13:13

    With the database proxy read/write separation feature, you can configure the database proxy address in your application so as to automatically forward write requests to the source instance and read requests to the read-only instance.

    This document describes how to enable/disable the read/write separation feature of TencentDB for MySQL.

    Prerequisites

    Enabling Read/Write Separation

    1. Log in to the TencentDB for MySQL console.
    2. Select the region at the top of the page and click the ID or Manage in the Operation column of the target instance to enter the instance management page.

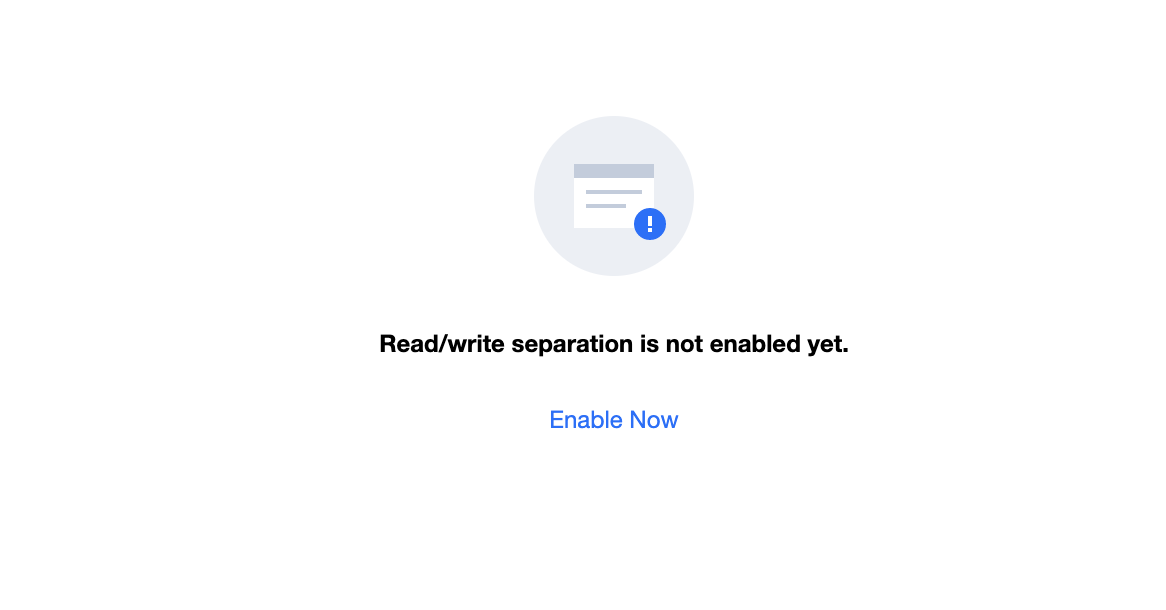

    3. On the Database Proxy tab on the instance management page, select the Read/Write Separation tab and click Enable Now.

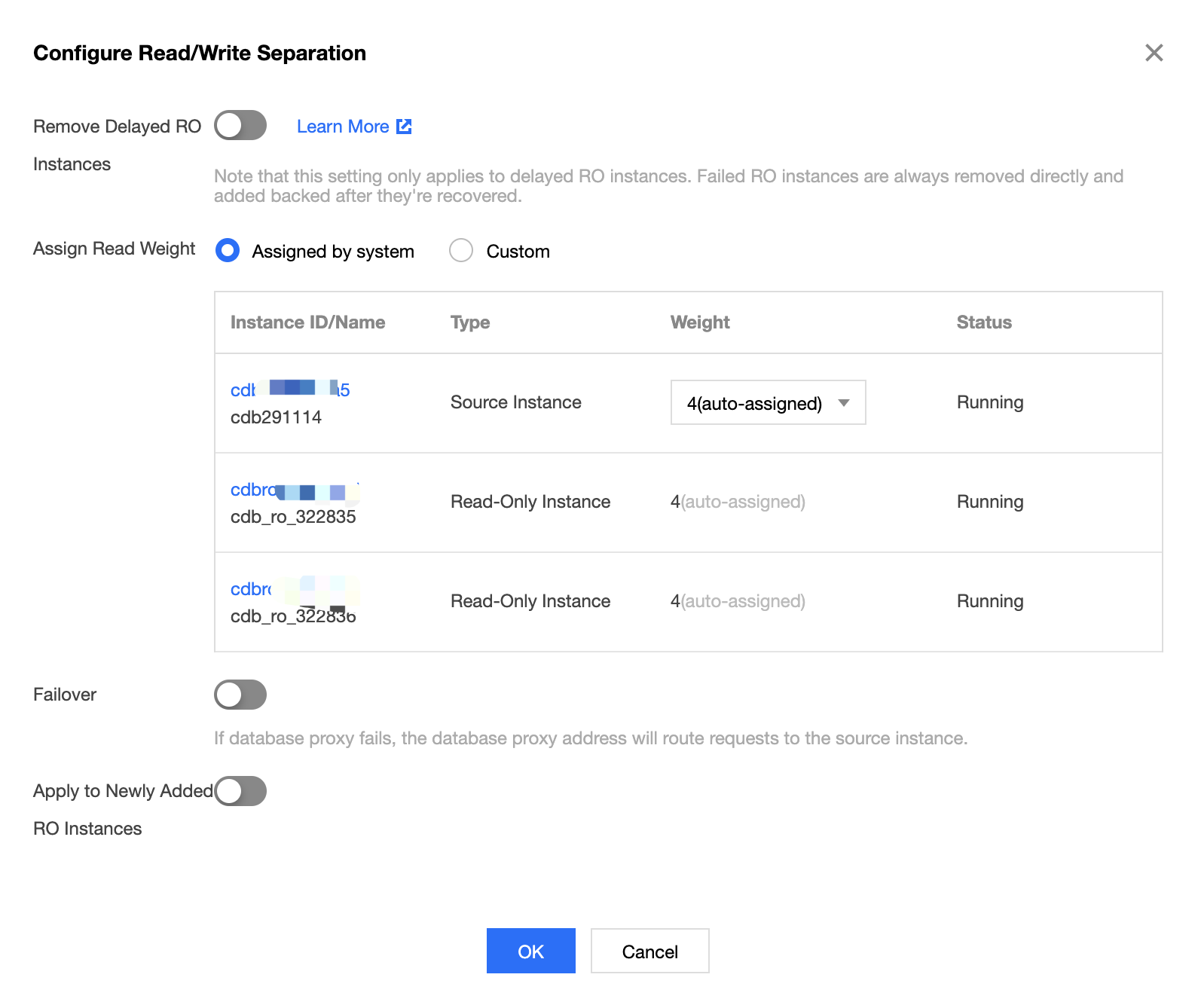

    4. In the pop-up window, set the relevant configuration items and click OK.
      Note:

      • Only source and read-only instances that are in Running status can be added to the database proxy.
      • Currently, remote or delayed read-only instances cannot be mounted to the database proxy.
      • Remove Delayed RO Instances: Specify whether to enable the removal policy. If a replication exception (such as replication delay or interruption) occurs on a read-only instance, the database proxy will remove the instance out of read/write separation temporarily. The delay threshold is ten seconds by default, and at least one read-only instance should be retained.
        Note:

        The set Delay Threshold and Least RO Instances take effect only for new connections.

      • Delay Threshold: Specify the maximum delay allowed when a read-only instance syncs data from the source instance. If the delay of a read-only instance exceeds this threshold, read requests will not be forwarded to it, regardless of its weight. The value must be an integer greater than or equal to 1.
        • If the delay of a read-only instance exceeds the threshold, the instance will be removed, its weight will be automatically set to 0 after the removal, and the system will send an alarm to you (you should subscribe to the "removal of node mounted to database proxy" alarm first. For the configuration, see Alarm Policies (Cloud Monitor)).
        • The instance will be put back into the database proxy when its delay falls below the threshold. No matter whether delayed read-only instance removal is enabled, a read-only instance that is removed due to instance failure will rejoin the database proxy when it is repaired.
        • After Least RO Instances is set, if the database proxy finds that the number of read-only instances being routed is smaller than the set value, it will add abnormal read-only instances to read/write separation until the number of instances in read/write separation is greater than or equal to the set value.
          Note:

          If a fatal failure (such as downtime) occurs on a read-only instance, it cannot be retained and counted into Least RO Instances.

      • Least RO Instances: This is the minimum number of instances that should be retained in the RO group. When there are fewer instances in the RO group, even if an instance exceeds the delay threshold, it will not be removed.
      • Assign Read Weight: Assign read weights to instances. You can select Assigned by system or Custom. Each weight must be an integer between 0 and 100. The configured read weight assignment takes effect immediately for all connections.
        • The database proxy will assign read request traffic according to the set weights; for example, if weights of two read-only instances are 10 and 20 respectively, their read request traffic will be assigned at a ratio of 1:2.
        • The weight here refers to the read request weight only, as write requests are directly routed to the source database without participating in weight calculation; for example, if a client sends ten write statements and ten read statements, and the ratio of the source and read-only instance weights is 1:1, the source instance will receive ten write statements and five read statements, and the read-only instance will receive five read statements only.
        • If you select Assigned by system, the system will automatically assign weights based on the instance's CPU and memory specification, and you can only set the weight of the source instance in this case.
        • If the weight of a read-only instance is 0, the database proxy will not connect to the instance. If its weight is changed from 0 to another value, the weight takes effect only for new connections.
      • Failover: Enable or disable this parameter. We recommend you enable this parameter, so the database proxy can send read requests to the source instance if all read-only instances are abnormal.
        Note:

        The configured failover capability takes effect only for new connections.

      • Apply to Newly Added RO Instances: Enable or disable this parameter. After it is enabled, if you purchase new read-only instances, they will be automatically added to the database proxy.
        • If Assign Read Weight is set to Assigned by system, newly purchased read-only instances will be assigned with the default weight based on their specification.
        • If Assign Read Weight is set to Custom, when newly purchased read-only instances are added to the RO group, their weights will be 0 by default, which can be modified in the configuration of the database proxy's read/write separation.

    Page Display

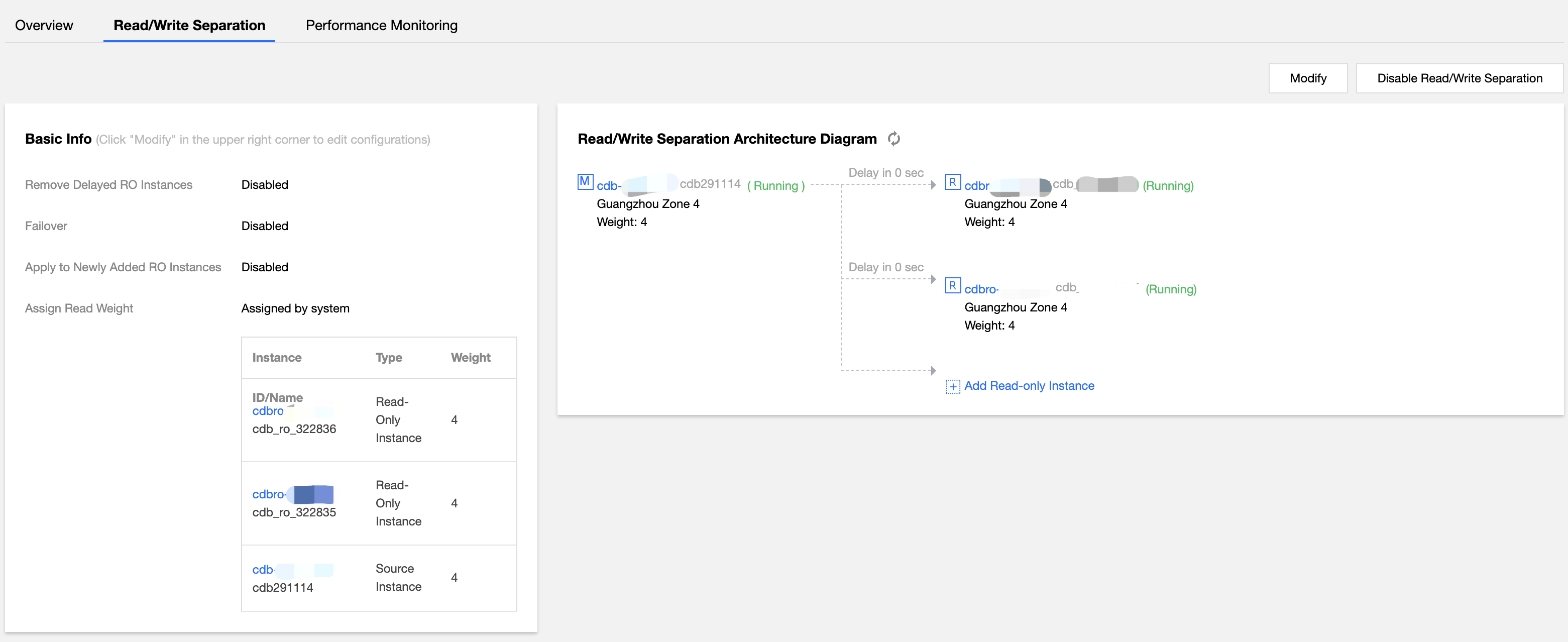

    After the database proxy's read/write separation feature is enabled, on the Read/Write Separation tab, you can view the basic information and read/write separation architecture diagram. You can also click buttons on the right to adjust the configuration and disable the feature.

    Disabling Read/Write Separation

    1. Log in to the TencentDB for MySQL console.
    2. Select the region at the top of the page and click the ID or Manage in the Operation column of the target instance to enter the instance management page.
    3. On the Database Proxy tab on the instance management page, select the Read/Write Separation tab and click Disable Read/Write Separation on the right.
