Cluster Scaling

Last updated: 2020-02-12 09:59:14

PDF

Introduction

This document describes how to scale a cluster. You can scale a cluster in one of the following ways:

Prerequisites

You are logged into the TKE console.

Directions

Manually Adding/Removing a Node

To scale out a cluster, you can manually add a node by creating a node or adding an existing node. To scale in a cluster, you can remove a node.

Creating-a-Node">

Creating a Node

When creating a node, you can configure your new CVM on the Create a Node page.
For detailed directions, see Adding a Node > Creating a Node.

Adding-an-Existing-Node">

Adding an Existing Node

  • Currently, you can only add CVMs in the same VPC.
  • If you choose to add an existing node to the cluster, the operating system of the CVM will be reinstalled according to you settings.
  • If you choose to add an existing node to the cluster, the project of the CVM will be migrated to the project set for the cluster.
  • When adding a node with only one data disk to the cluster, you can choose whether to set the container directory. If you set the container directory, the data disk will be formatted.
    You cannot set the container directory for CVMs with no or multiple data disks.

When adding a node, you can select and configure the CVM you want to add to the cluster on the Add Existing Node page.
For detailed directions, see Adding a Node > Adding an Existing Node.

Removing-a-Node">

Removing a Node

For directions on how to scale in a cluster, see Removing a Node.

Automatically-Adding/removing-a-Node-via-Auto-Scaling">

Automatically Adding/removing a Node via Auto Scaling

Cluster Autoscaler (CA) is an independent program that dynamically adjusts the number of nodes in a cluster to meet your needs. When there is any Pod in a cluster that cannot be scheduled due to a lack of resources, scaling out is automatically triggered to reduce your labor costs. When some other conditions are met (for example, there are idle nodes), scaling in is automatically triggered to reduce your resource costs.

Creating a Scaling Group

  1. Log in to the TKE console and click Clusters in the left sidebar.

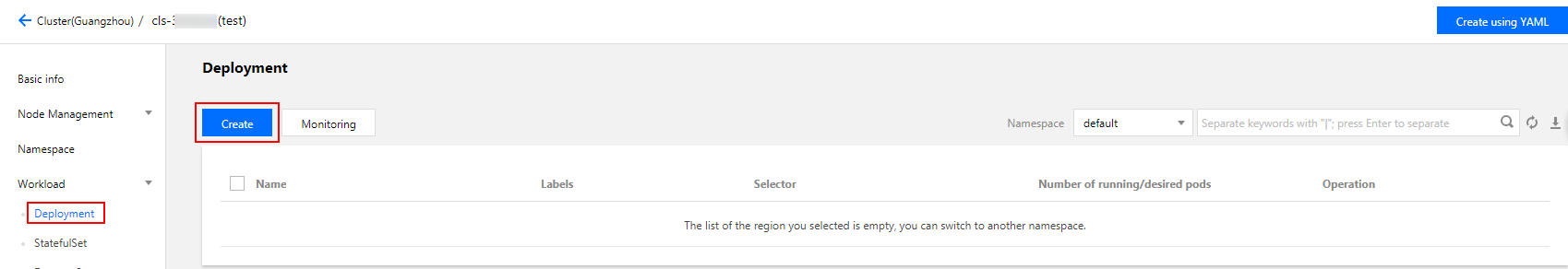

  2. Click the ID of the cluster for which you want to create the scaling group to go to the Workload page as shown below:
    Management page
  3. In the left cluster sidebar, select Node Management > Scaling Groups to enter the Scaling Groups page.
  4. Click Create Scaling Group and configure the scaling group according to the following information.
    • Launch Configurations:
      • Name: enter a custom launch configuration name.
      • Creation Method: you can choose from the two methods of Re-select other model configuration or Select existing node model based on your needs.
      • Instance Type: pay as you go instances are available.
      • Model Settings: please choose from the options based on your needs.
      • Login Method:
        • Custom Password: please set a password as prompted.
        • SSH Key Pair: a key pair is a pair of parameters generated by an algorithm. Using a key pair is more secure than using regular passwords. For more details, see SSH Key.
        • Random Password: an automatically generated password will be sent to your Message Center.
      • Data Disk: please select according to your needs.
      • Security Groups: used to control network access to CVMs. Please select based on your needs.
      • Label: set a label for the scaling group. The label will be added to the nodes that are created during automatic scale-out for flexible service scheduling.
    • Scaling Group Configurations:
      • Supported Network: the cluster network is selected by default and cannot be changed.
      • Supported Subnets: please select based on your needs.
      • Number of Nodes: set the node quantity range for the scaling group.
      • Retry Policy: you can choose from Retry instantly and Retry with incremental intervals based on your needs.
        • Retry instantly: retry immediately and stop retrying after failing five times in a row.
        • Retry with incremental intervals: as the number of consecutive failures increases, the interval between each attempt will increase; the interval can range from seconds to a day.
  5. Click Create Scaling Group to complete the creation.
  6. To create multiple scaling groups, repeat step 1 to step 5.
  • You need to configure the request value of the containers under the service. With the request value, whether the resources in the cluster are sufficient can be assessed in order to decide whether to trigger automatic scale-out.
  • Do not directly modify nodes in a scaling group.
  • All nodes in the same scaling group should have the same configuration, e.g. model, label, etc.
  • You can use PodDisruptionBudget to prevent a Pod from being deleted during scale-in.
  • Check whether there is enough CVM quota in the availability zone before setting the minimum/maximum number of nodes for a scaling group.
  • It is not recommended to enable monitoring metric-based node auto-scaling.
  • Please note that deleting a scaling group will terminate the CVM instances in it.

Adjusting Global Configurations

  1. Log in to the TKE console and click Clusters in the left sidebar.
  2. Click the ID of the cluster for which you want to adjust the scaling group configurations to go to the cluster’s Workload page.
  3. In the left sidebar, select Node Management > Scaling Groups to enter the Scaling Groups page.

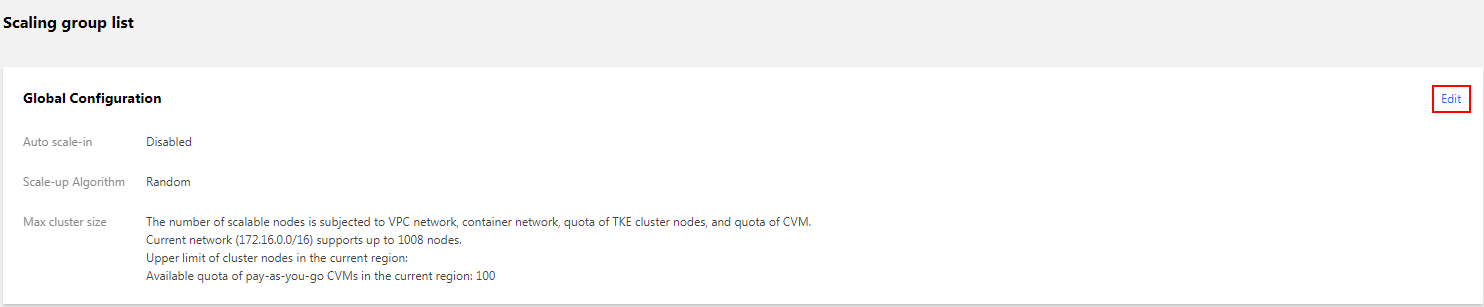

  4. Click Edit in the top right corner of the Global Configurations module to go to Set Global Configurations for Cluster Scaling as shown below:

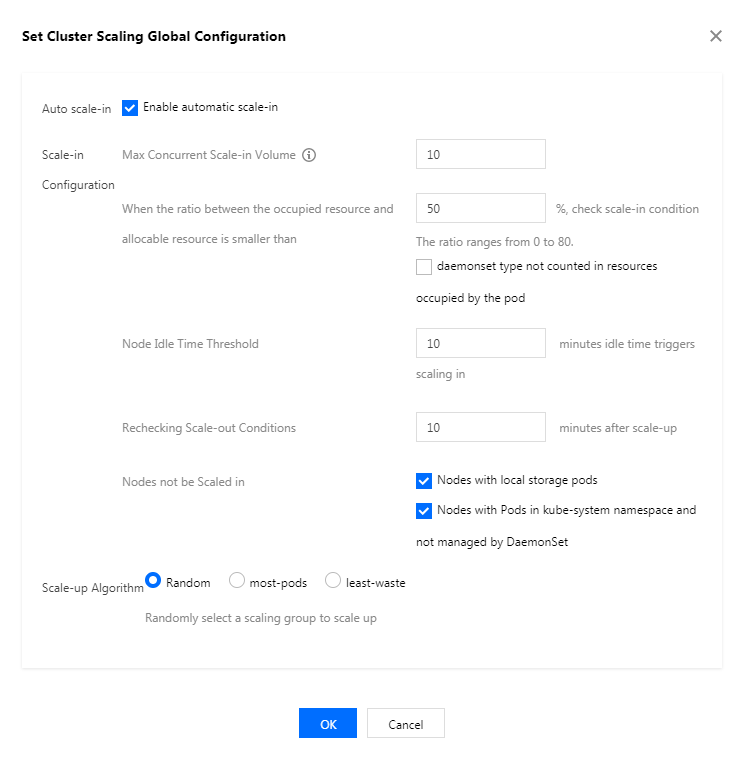

  5. On the Set Global Configurations for Cluster Scaling page, adjust the global configurations according to the following instructions. See the figure below:
    • Auto Scale-in: select as needed.
    • Scale-in Configuration: after enabling auto scale-in, make configurations as needed.
    • Scale-out Algorithm: this algorithm decides which scaling group is used for scale-out when you have multiple scaling groups. Please select one from the following three algorithms.
      • Random: randomly select a scaling group.
      • most-pods: select the scaling group that can schedule the most Pods.
      • least-waste: select the scaling group that can ensure the fewest remaining resources after Pod scheduling.
  6. Click OK to complete the setup.

Adjusting Scaling Group Configuration

  1. On the Scaling Groups page, you can select More > Adjust Configuration to the right of the scaling group whose configuration you want to adjust.

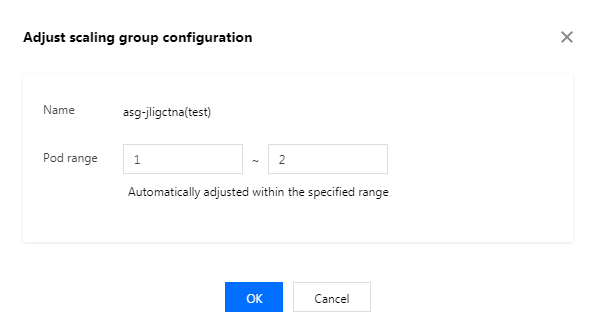

  2. In the Adjust Scaling Group Configuration pop-up window, modify the number of Pods based on your needs. See the figure below:
  3. Click OK to complete the setup, and the number of nodes in the scaling group will be automatically adjusted within the specified range.

Scaling-triggering Conditions

Scale-out Triggers

If there is any container Pod in a cluster that cannot be scheduled due to a lack of available resources, the pre-configured auto scale-out policy will be triggered to scale out the nodes to run the Pod.
Whenever the Kubernetes scheduler cannot find a place to run a Pod, it will set the Pod's PodCondition to false and set the reason to Unschedulable. Cluster Autoscaler scans clusters regularly to see if there are unschedulable Pods. If there are, it will try to scale out the nodes to run the Pods.

Scale-in Conditions

Scale-in will be triggered when there are too many idle resources in a cluster. This generally means that the ratio of resources used by CPU or memory to all available resources is lower than the percentage you set. Only when all the Pods on a node can be successfully scheduled to other nodes will the Pods be drained for the scale-in.

A node will not be used for scale-in when any of the Pods on it meets any of the following conditions:

  • You set strict PodDisruptionBudget (PDB) for the Pods on the node, and the PDB is not met.
  • There are Pods under the Kube-system.
  • There are Pods that were not created by controllers such as Deployment, ReplicaSet, Job, or StatefulSet.
  • There are Pods with local storage.
  • There are Pods that cannot be scheduled to other nodes.

FAQ

For issues related to scaling, see Auto-scaling Related.
