Basic Ingress Features

Last updated: 2020-08-11 10:48:27

    Overview

    An Ingress is a collection of rules that allow access to services within a cluster. You can configure different forwarding rules to allow different URLs to access different services within the cluster.
    To properly run Ingress resources, the cluster must run an Ingress controller. TKE enables the CLB-based l7-lb-controller by default in the cluster. It supports HTTP and HTTPS as well as other self-built Ingress controllers in the cluster. You can select different Ingress types based on your business needs.

    Notes

    • Make sure your container and CVM instance do not share a CLB.
    • For a CLB managed by TKE, you cannot modify its listeners, forward paths, certificates, and backend-bound servers on the CLB console. Changes made on the CLB console will be automatically overwritten by TKE.
    • When using an existing CLB:
      • You can only use load balancers created through the CLB console, not balancers automatically created by TKE.
      • Do not use one CLB for multiple Ingresses.
      • Do not use the same CLB for Ingress and Service.
      • After you delete an Ingress, the real server bound to the reused CLB will need to be unbound manually. tag tke-clusterId: cls-xxxx will be kept for the CLB and will need to be cleared manually.

    Operation Guide for Ingresses in the Console

    Creating an Ingress

    1. Log in to the TKE console.
    2. In the left sidebar, click Cluster to go to the cluster management page.
    3. Click the cluster ID where the Ingress needs to be created to go to the cluster management page.
    4. Select Services and Routes -> Ingress to go to the Ingress information page.

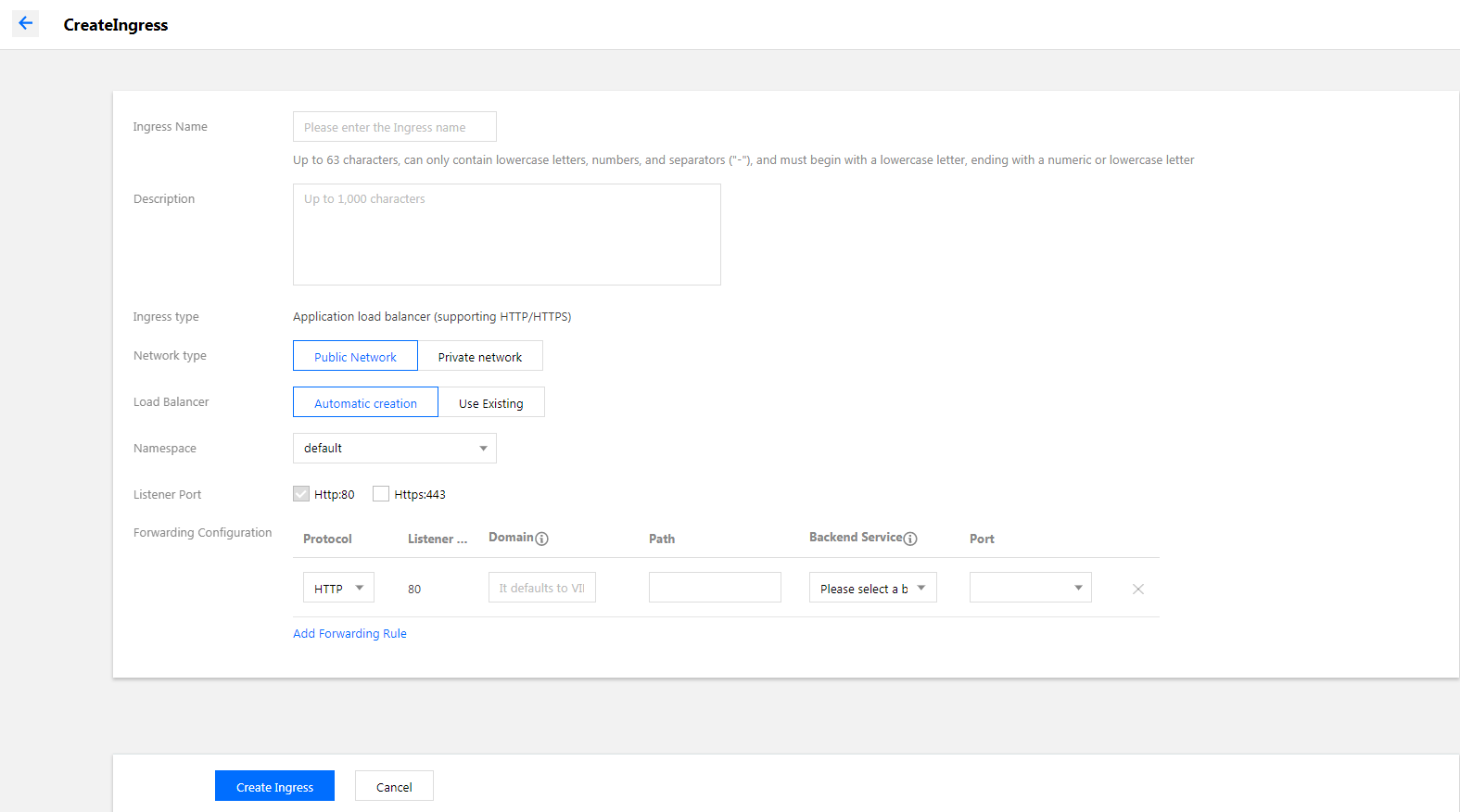

    5. Click Create to go to the Create an Ingress page, as shown in the figure below:
    6. Set the Ingress parameters based on your actual needs. The key parameters are as follows:
      • Ingress name: custom.
      • Network type: the default value is Public network. Select another network if needed.
      • Load balancer: create one automatically or use an existing CLB.
      • Namespace: select an option based on your actual needs.
      • Listener port: the default listener port is Http:80. Select another port if needed.

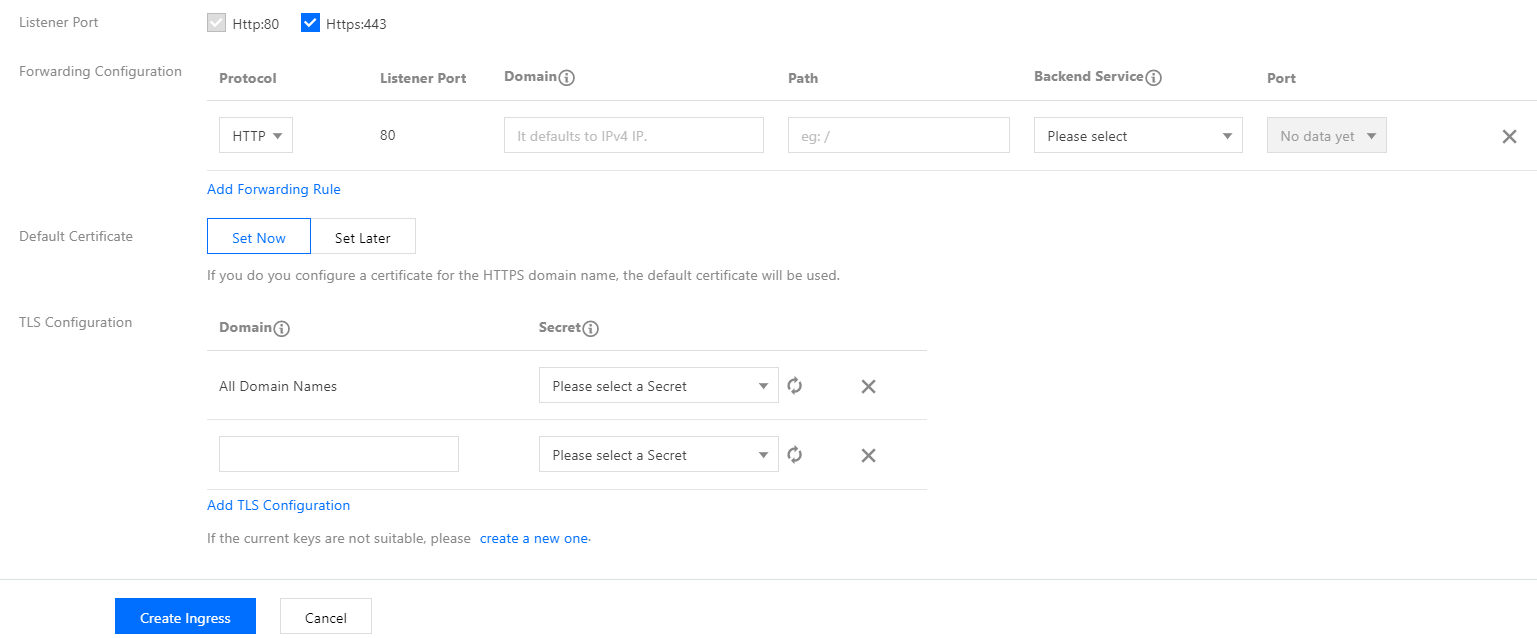

        If Https:443 is selected, a server certificate must be bound to ensure access security. For more information, see SSL Certificate Format.
      • Forwarding configuration: set this parameter based on your actual needs.
    7. Click Create Ingress to create an Ingress.

    Updating an Ingress

    Updating YAML

    1. Log in to the TKE console.
    2. In the left sidebar, click Cluster to go to the cluster management page.
    3. Click the cluster ID for which you want to update the YAML to go to the cluster management page.

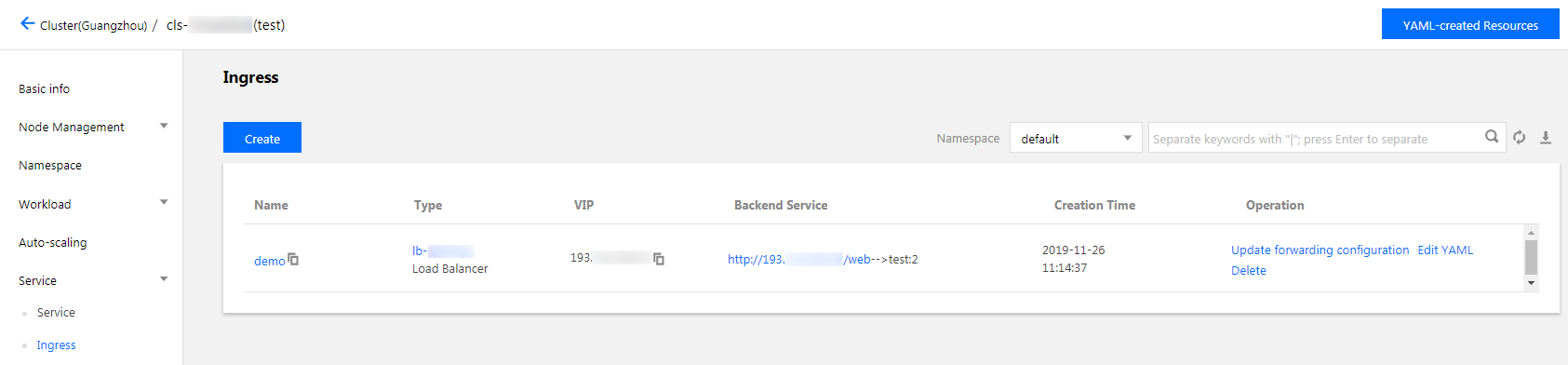

    4. Select Services and Routes -> Ingress to go to the Ingress information page, as shown in the figure below:
    5. In the row of the Ingress for which you want to update YAML, click Edit YAML to go to the Update an Ingress page.
    6. On the Update an Ingress page, edit YAML and click Complete to update YAML.

    Updating a forwarding rule

    1. On the cluster management page, click the cluster ID for which you want to update the YAML to go to the cluster management page.
    2. Select Services and Routes -> Ingress to go to the Ingress information page, as shown in the figure below:

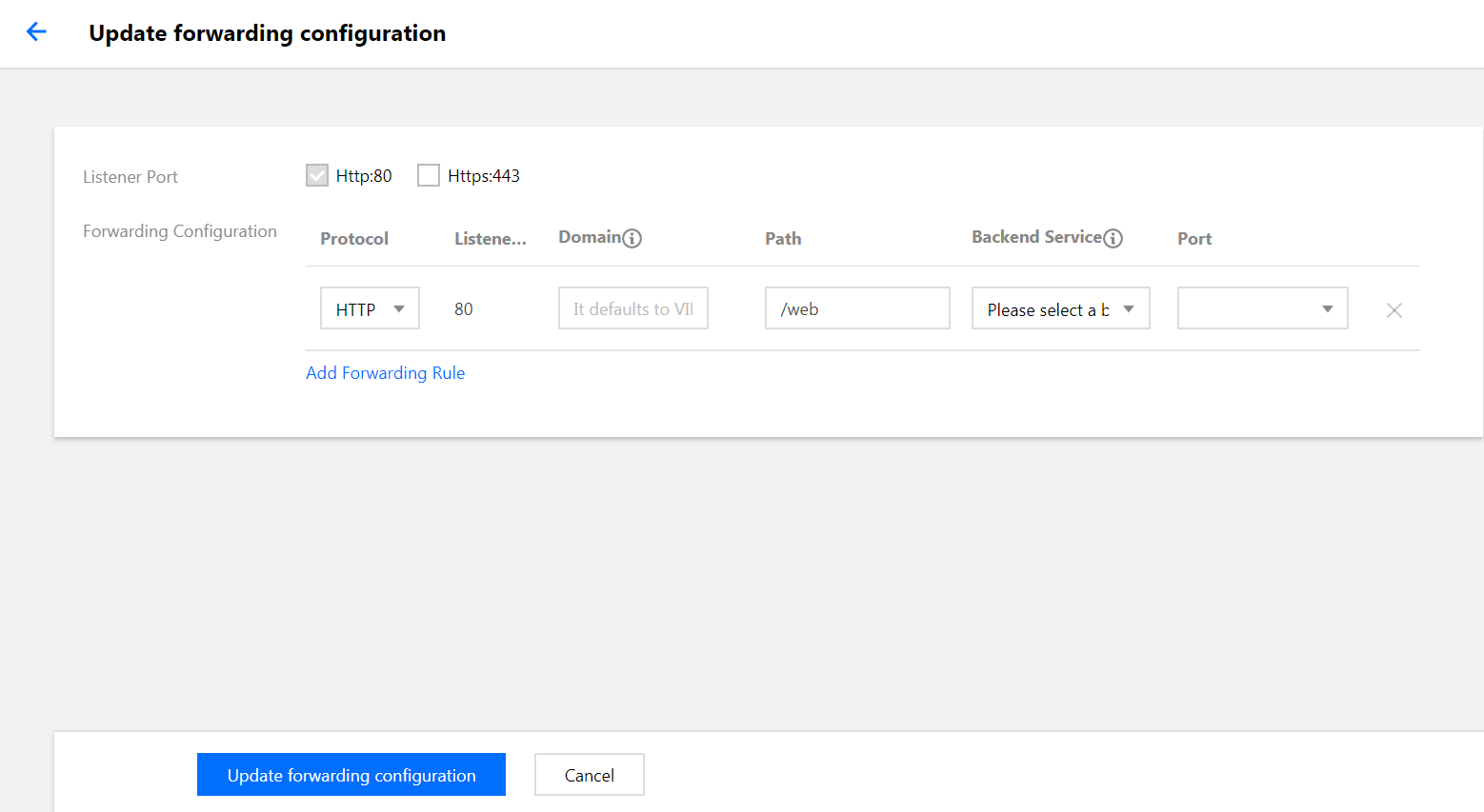

    3. In the row of the Ingress for which you want to update the forwarding rule, click Update the forwarding configuration to go to the update the forwarding configuration page, as shown in the figure below:
    4. Modify the forwarding configuration based on your actual needs and click Update the forwarding configuration to complete the update.

    Managing Ingresses Using Kubectl

    YAML sample

    apiVersion: extensions/v1beta1
    kind: Ingress
    metadata:
      annotations:
        kubernetes.io/ingress.class: qcloud ## Options: qcloud (CLB-type Ingress), nginx (nginx-ingress), traefik
        ## kubernetes.io/ingress.existLbId: lb-xxxxxxxx  ## Specify an existing load balancer to be used to create the Ingress for public/private network access.
        ## kubernetes.io/ingress.subnetId: subnet-xxxxxxxx  ## If you are creating a CLB-type private network Ingress, you need to specify this annotation.
      name: my-ingress
      namespace: default
    spec:
      rules:
      - host: localhost
        http:
          paths:
          - backend:
              serviceName: non-service
              servicePort: 65535
            path: /
    • kind: identifies the Ingress resource type.
    • metadata: basic information such as Ingress name and Label.
    • metadata.annotations: an additional description of the Ingress. You can set additional enhancements for TKE through this parameter.
    • spec.rules: the Ingress forwarding rule, which can be configured to implement a simple routing service, domain name-based simple fan-out routing, default domain name for simple routing, and a securely configured routing service.

    annotations: create an Ingress for public/private network access using an existing load balancer

    If the existing application CLB is idle and you want to use it for an Ingress created by TKE or you want to use the same CLB within the cluster, you can set it using the following annotations:

    Note:

    Please read the Notes before using it.

    metadata:
      annotations:
        kubernetes.io/ingress.existLbId: lb-6swtxxxx

    annotations: create a private network Ingress of the CLB type

    If you need to use a private network CLB, set it with the following annotations:

    metadata:
      annotations:
        kubernetes.io/ingress.subnetId: subnet-xxxxxxxx

    Notes

    If you are using an account with IP bandwidth packages, you need to specify the following two annotations when creating a service accessible to the public network:

    • kubernetes.io/ingress.internetChargeType identifies the public network bandwidth billing method. Options include:
      • TRAFFIC_POSTPAID_BY_HOUR (bill-by-traffic)
      • BANDWIDTH_POSTPAID_BY_HOUR (bill-by-bandwidth)
    • kubernetes.io/ingress.internetMaxBandwidthOut identifies the bandwidth cap (value range: [1, 2000] Mbps).
      For example:
      metadata:
      annotations:
        kubernetes.io/ingress.internetChargeType: TRAFFIC_POSTPAID_BY_HOUR
        kubernetes.io/ingress.internetMaxBandwidthOut: "10"
      For more information on IP bandwidth packages, see Checking Account Type.

    Creating an Ingress

    1. Prepare the Ingress YAML file as instructed by the YAML sample.
    2. Install kubectl and connect to a cluster. For detailed operations, see Connecting to a Cluster.
    3. Run the following command to create the Ingress YAML file.
      kubectl create -f Ingress YAML filename
      For example, to create an Ingress YAML file named “my-ingress.yaml”, run the following command:
      kubectl create -f my-ingress.yaml
    4. Run the following command to check whether the Ingress YAML file has been successfully created:
      kubectl get ingress
      If a message similar to the one below is returned, the Ingress YAML file has been successfully created.
      NAME          HOSTS       ADDRESS   PORTS     AGE
      clb-ingress   localhost             80        21s

    Updating an Ingress

    Method 1

    Run the following command to update an Ingress:

    kubectl edit  ingress/[name]

    Method 2

    1. Manually delete the old Ingress.
    2. Run the following command to recreate an Ingress:
      kubectl create/apply
