TCR Introduction

Last updated: 2021-12-13 16:10:58

    Overview

    Add-on Description

    TCR Addon is a plug-in provided by the Tencent Container Registry (TCR) service for private-network and Secret-free pulling of container images. After this plug-in is installed in a TKE cluster, cluster nodes can pull container images from Enterprise Edition instances over the private network, without the need for explicit configuration of ImagePullSecret in the cluster resource YAML file. This plug-in can accelerate image pulling in TKE clusters and simplify image configuration.

    Note:

    • The TKE cluster version must be v1.10.x or later. We recommend that you use this add-on in TKE v1.12.x or later.
    • The startup parameters of the Kubernetes controller manager component must contain authentication-kubeconfig and authorization-kubeconfig (enabled by default in TKE v.12.x).

    Kubernetes objects deployed in a cluster

    Name Type Resource Amount Namespace
    tcr-assistant-system Namespace 1 -
    tcr-assistant-manager-role ClusterRole 1 -
    tcr-assistant-manager-rolebinding ClusterRoleBinding 1 -
    tcr-assistant-leader-election-role Role 1 tcr-assistant-system
    tcr-assistant-leader-election-rolebinding RoleBinding 1 tcr-assistant-system
    tcr-assistant-webhook-server-cert Secret 1 tcr-assistant-system
    tcr-assistant-webhook-service Service 1 tcr-assistant-system
    tcr-assistant-validating-webhook-configuration ValidatingWebhookConfiguration 1 tcr-assistant-system
    imagepullsecrets.tcr.tencentcloudcr.com CustomResourceDefinition 1 tcr-assistant-system
    tcr.ips* ImagePullSecret CRD (2-3) tcr-assistant-system
    tcr.ips* Secret (2-3)*{Namespace No.} tcr-assistant-system
    tcr-assistant-controller-manager Deployment 1 tcr-assistant-system
    updater-config ConfigMap 1 tcr-assistant-system
    hosts-updater DaemonSet {Node No.} tcr-assistant-system

    Component resource usage

    Component Resource Usage Instance Quantity
    tcr-assistant-controller-manager CPU:100m memory:30Mi 1
    hosts-updater CPU:100m memory:100Mi Number of worker nodes

    Use Cases

    Pulling images without a Secret

    For a Kubernetes cluster to pull private images, you must create access credential Secret resources, configure the ImagePullSecret attribute in the YAML file of the resources, and explicitly specify the created Secret. The overall configuration process is complicated, and image pull will fail if the Secret is not configured or the specified Secret is incorrect.
    In face of this problem, you can install the TCR add-on in the cluster. The add-on automatically obtains the access credential of the specified TCR Enterprise Edition instance and delivers it to the specified namespace of the TKE cluster. When using the YAML file to create or update resources, you do not need to configure ImagePullSecret. Instead, the cluster automatically uses the delivered access credential to pull images from the TCR Enterprise Edition instance.

    Pulling images over the private network

    The add-on automatically creates a DaemonSet workload, host-updater, which is used to update the host configuration of nodes in the cluster. Note that this configuration is only recommended for test scenarios. For resolving, you can use the private network linkage provided by TCR, PrivateDNS, or your own DNS service.

    Limits

    • For use cases of secret-free image pulling:
      • Users must have the permission to obtain the access credential of the specified TCR Enterprise Edition instance, that is, the permission to call the CreateInstanceToken API. We recommend that users with TCR admin permissions configure this add-on.
      • After the add-on is installed and takes effect, do not repeatedly specify ImagePullSecret in the resource YAML file. Otherwise, nodes may use the incorrect image pull access credential, leading to pull failures.

    Directions

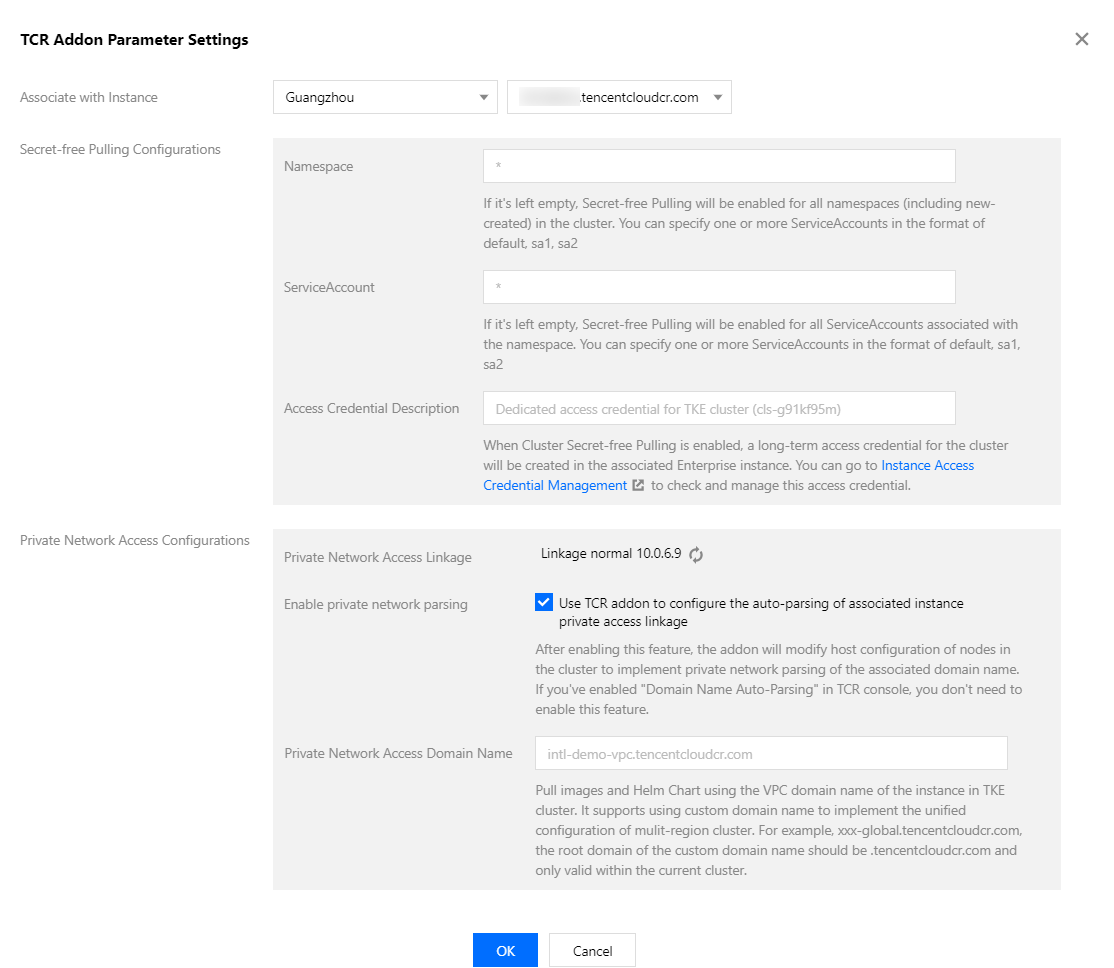

    1. Select an associated instance: select an existing TCR Enterprise Edition instance under the current logged-in account and confirm that the current logged-in user has the permission to create a long-term access credential for the instance. If you need to create a new Enterprise Edition instance, create it in the region where the current cluster is located.
    2. Configure secret-free pulling (enabled by default): you can choose to issue the access credential automatically for the current user, or specify the username and password,. You can also configure the namespace and ServiceAccount for which you want to enable Secret-free pulling. For the detailed configuration, see Parameter description. We recommend that you keep the default configuration to make sure this feature works on the new namespace.
    3. Configure private network resolving (advanced feature): make sure that there is already a private network linkage between the cluster and the associated TCR instance, and Private Network Resolving is enabled. Note that this configuration is only recommended for test scenarios. For resolving, you can use the private network linkage provided by TCR, PrivateDNS, or your own DNS service.
    4. After the TCR add-on is created, if you need to modify its configuration, delete the add-on and reconfigure and reinstall it.
      Note:

      When the TCR add-on is deleted, the created dedicated access credential is not automatically deleted. You can go to the TCR console to manually disable or delete the credential.

    How It Works

    Overview

    TCR Assistant helps you implement the auto-process of deploying k8s imagePullSecret to any namespace, and associate it with the ServiceAccount of the namespace. If you do no explicitly specify the imagePullSecret and serviceAccount when create the workload, K8s will try find the matched imagePullSecret from the ServiceAccount named default under the namespace.

    Glossary

    Name Alias Description
    ImagePullSecret ips, ipss The CRD defined by TCR Assistant. It’s used to store the username and password of the image repository, and issue the target Namespace and ServiceAccount.

    How it works

    TCR Assistant is a classic K8s Operator. Upon deployment of TCR Assistant, the CRD object imagepullsecrets.tcr.tencentcloudcr.com is created automatically. This CRD’s kind is ImagePullSecret, and its version is tcr.tencentcloudcr.com/v1, with the alias as ips or ipss.

    TCR Assistant keeps watching the resource status of Namespace and ServiceAccount in the cluster. When there are resource changes, it checks whether the changes match the rules set in ImagePullSecret. If yes, it automatically deploys the Secret required to pull the private image repository. TCR Assistant is usually deployed in a K8s cluster, and accesses K8s master API in in cluster mode.

    Creating CRD resources

    When TCR Assistant is deployed, the Secret used to pull TCR image is not deployed in the target K8s cluster. You need to create ImagePullSecret using kubectl or Client Go.

    # Create ImagePullSecret resource
    $ kubectl create -f allinone/imagepullsecret-sample.yaml
    imagepullsecret.tcr.tencentcloudcr.com/imagepullsecret-sample created


    ImagePullSecret resource sample file (allinone/imagepullsecret-sample.yaml):

    apiVersion: tcr.tencentcloudcr.com/v1
    kind: ImagePullSecret
    metadata:
    name: imagepullsecret-sample
    spec:
    namespaces: "*"
    serviceAccounts: "*"
    docker:
      username: "100012345678"
      password: tcr.jwt.token
      server: fanjiankong-bj.tencentcloudcr.com


    Description of ImagePullSecret spec fields:

    Field Description Remarks
    namespaces NameSpace matching rule Match any namespace: * or blank; Match any of multiple namespaces: enter the resource names and separate them with ,. Note: Expressions are not supported. Please enter the exact resource name.
    serviceAccounts serviceAccounts matching rule Match any namespace: * or blank; Match any of multiple namespaces: enter the resource names and separate them with ,. Note: Expressions are not supported. Please enter the exact resource name.
    docker.server Image repository domain name Please enter only the repository domain name
    docker.username Image repository username Make sure the user has all the required permissions
    docker.password Password of the image repository username -

    After the creation, you can run the following command to check execution result of TCR Assistant:

    # List ImagePullSecret information
    $ kubectl get ipss
    NAME                     NAMESPACES   SERVICE-ACCOUNTS   SECRETS-DESIRED   SECRETS-SUCCESS
    imagepullsecret-sample   *            *                  10                10
    # Check details
    $  kubectl describe ipss
    Name:         imagepullsecret-sample
    Namespace:
    Labels:       <none>
    Annotations:  <none>
    API Version:  tcr.tencentcloudcr.com/v1
    Kind:         ImagePullSecret
    Metadata:
    Creation Timestamp:  2021-12-01T06:47:34Z
    Generation:          1
      Manager:      kubectl-client-side-apply
      Operation:    Update
      Time:         2021-12-01T06:47:34Z
      API Version:  tcr.tencentcloudcr.com/v1
      Manager:         manager
      Operation:       Update
      Time:            2021-12-01T06:47:38Z
    Resource Version:  30389349
    UID:               2109f384-240b-405c-9ce8-73ce938a7c2f
    Spec:
    Docker:
      Password:        tcr.jwt.token
      Server:          fanjiankong-bj.tencentcloudcr.com
      Username:        100012345678
    Namespaces:        *
    Service Accounts:  *
    Status:
    S As Desired:  47
    S As Success:  1
    Secret Update Successful:
      Namespaced Name:  kube-public/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:36Z
      Namespaced Name:  devtools/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:36Z
      Namespaced Name:  demo/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:36Z
      Namespaced Name:  kube-system/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:36Z
      Namespaced Name:  tcr-assistant-system/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:36Z
      Namespaced Name:  kube-node-lease/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:36Z
      Namespaced Name:  cert-manager/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:36Z
      Namespaced Name:  default/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:36Z
      Namespaced Name:  afm/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:37Z
      Namespaced Name:  lens-metrics/tcr.ipsimagepullsecret-sample
      Updated At:       2021-12-01T06:47:37Z
    Secrets Desired:    10
    Secrets Success:    10
    Service Accounts Modify Successful:
      Namespaced Name:  default/default
      Updated At:       2021-12-01T06:47:38Z
    Events:               <none>


    Note: to update the Secret resource deployed by TCR Assistant, you don’t need to delete and rebuild ImagePullSecret. All you need to do is to edit the docker.username and docker.password fields using the command below:

    $ kubectl edit ipss imagepullsecret-sample


    Namespace updates

    When TCR Assistant detects new K8s Namespace, it checks whether the name of the resource matches the namespaces field of ImagePullSecret. If the names are not matched, it goes to the next step. If the names are matched, K8s API is invoked to create a Secret resource, and the Secret name is added to the imagePullSecrets of ServiceAccount. See below for examples:

    # Check the Secret automatically deployed under newns
    $ kubectl get secrets -n newns
    NAME                            TYPE                                  DATA   AGE
    tcr.ipsimagepullsecret-sample   kubernetes.io/dockerconfigjson        1      7m2s
    default-token-nb5vw             kubernetes.io/service-account-token   3      7m2s
    # Check the Secret automatically associated with the `ServiceAccount` resource name `default` under newns
    $ kubectl get serviceaccounts default -o yaml -n newns
    apiVersion: v1
    imagePullSecrets:
    - name: tcr.ipsimagepullsecret-sample
    kind: ServiceAccount
    metadata:
    creationTimestamp: "2021-12-01T07:09:56Z"
    name: default
    namespace: newns
    resourceVersion: "30392461"
    uid: 7bc67144-3685-4666-ba41-b1447bbbaa38
    secrets:
    - name: default-token-nb5vw


    ServiceAccount updates

    When TCR Assistant detects new K8s ServiceAccount, it checks whether the name of the resource matches the serviceAccounts field of ImagePullSecret. If the names are not matched, it goes to the next step. If the names are matched, K8s API is invoked to create or update Secret resource, and the Secret name is added to the imagePullSecrets field of ServiceAccount. See below for examples:

    # Create ServiceAccount resource under newns
    $ kubectl create sa kung -n newns
    serviceaccount/kung created
    # Check the Secret automatically associated with the newly-created `ServiceAccount` resource name `kung` under newns
    $ kubectl get serviceaccounts kung -o yaml -n newns
    apiVersion: v1
    imagePullSecrets:
    - name: tcr.ipsimagepullsecret-sample
    kind: ServiceAccount
    metadata:
    creationTimestamp: "2021-12-01T07:19:12Z"
    name: kung
    namespace: newns
    resourceVersion: "30393760"
    uid: e236829e-d88e-4feb-9e80-5e4a40f2aea2
    secrets:
    - name: kung-token-fljt8
