Deployment Management

Last updated: 2019-10-18 11:44:59

PDF

Overview

A Deployment describes the template of a Pod and the policy that controls how the Pod runs, which is well suited for deploying stateless applications. You can specify the number of Pod copies running in the Deployment, the policy of scheduling and update the policy as needed.

Operation Guide for Deployments in the Console

Creating a Deployment

  1. Log in to the TKE console.
  2. In the left sidebar, click Clusters to go to the cluster management page.

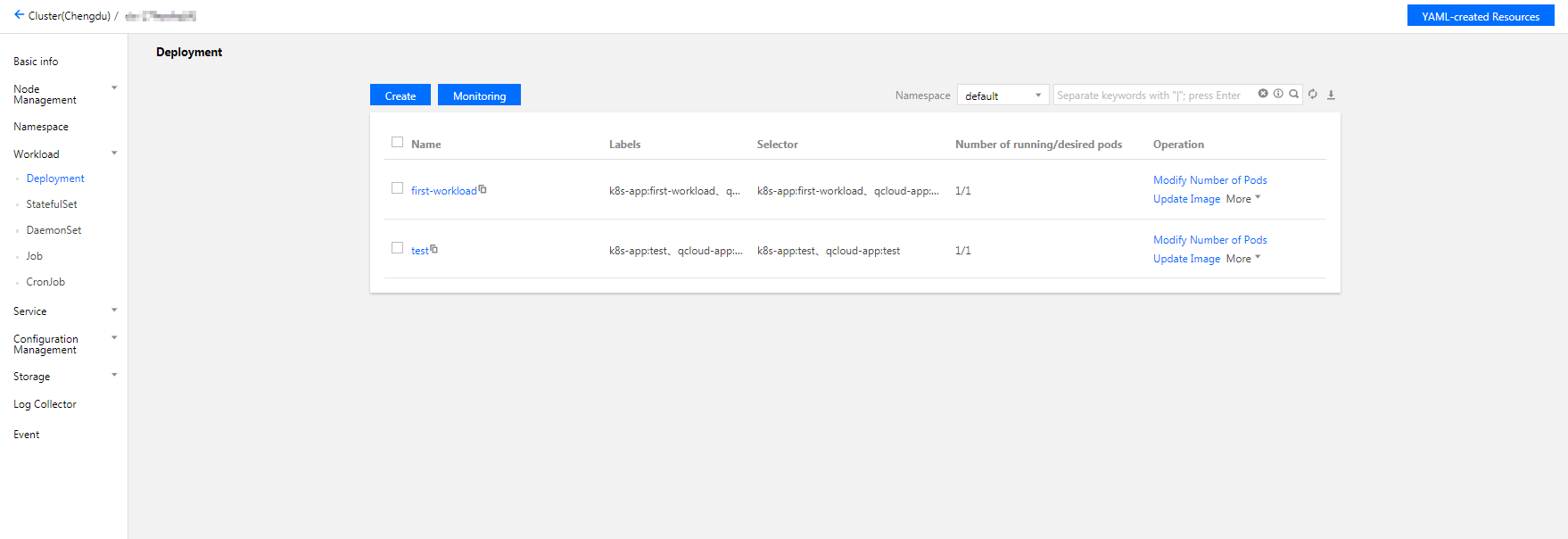

  3. Click the ID of the cluster where Deployment needs to be created to enter the cluster management page. See the figure below:
    Management page of the cluster where to create a Deployment
  4. Click Create to go to the "Create a workload" page. See the figure below:
    Create a workload
  5. Set the Deployment parameters based on actual needs. Key parameters are as follows:
    • Workload name: Custom.
    • Namespace: Select based on actual needs.
    • Type: Select "Deployment (deploy Pods in an extensible manner)".
    • In-Pod containers: Set one or more different containers for a Pod of the Deployment based on actual needs.
      • Name: Custom.
      • Image: Select based on actual needs.
      • Image tag: Enter based on actual needs.
      • CPU/memory limits: Set the CPU and memory limit according to Kubernetes' resource limits to improve the robustness of the business.
      • Advanced settings: Parameters such as "working directory", "run commands", "run parameters", "container health check", and "privilege level" can be set.
    • Pod quantity: Select the adjustment method and set the Pod quantity based on actual needs.
  6. Click Create a workload to complete the creation. See the figure below:

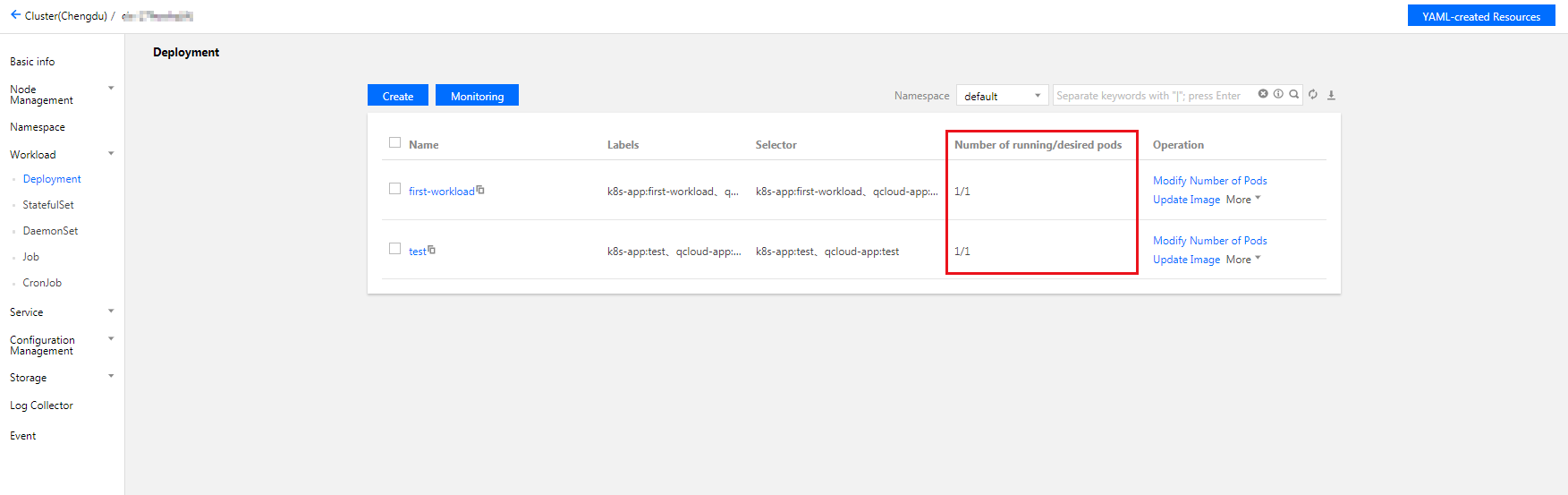

    When the running quantity is equal to the expected quantity, all the Pods under the Deployment have been created.
    Create a workload

Updating a Deployment

Updating YAML

  1. Log in to the TKE console.
  2. In the left sidebar, click Clusters to go to the cluster management page.
  3. Click the ID of the cluster where Deployment needs to be updated to enter the cluster management page. See the figure below:
    Deployment management
  4. In the row of the Deployment for which to update the YAML, click More > Edit YAML to go to the Deployment updating page.
  5. On the "Update a Deployment" page, edit the YAML and click Finish to update the YAML. See the figure below:
    Update YAML

Updating an Image

  1. On the cluster management page, click the ID of the cluster for which to update the Deployment image to go to the management page of the cluster.
  2. In the row of the Deployment for which to update the image, click Update an image. See the figure below:
    Update an image
  3. On the Roll update an image page, modify the update method and set the parameters based on actual needs. See the figure below:
    Roll update an image
  4. Click Finish to update the image.

Rolling back a Deployment

  1. Log in to the TKE console.
  2. In the left sidebar, click Clusters to go to the cluster management page.
  3. Click the ID of the cluster where Deployment needs to be rolled back to enter the cluster management page. See the figure below:
    Deployment management
  4. Click the name of the Deployment to be rolled back to go to the Deployment information page.
  5. Select the "Revision log" tab and click Roll back in the row of the version to roll back to. See the figure below:
    Rollback
  6. In the "Roll back a resource" prompt box that pops up, click Submit to complete the rollback.

Adjusting Pod Quantity

  1. Log in to the TKE console.
  2. In the left sidebar, click Clusters to go to the cluster management page.
  3. Click the ID of the cluster where Pod quantity needs to be adjusted to enter the cluster management page. See the figure below:
    Deployment management
  4. In the row of the Deployment for which to adjust the Pod quantity, click Update Pod quantity to go to the Pod quantity updating page. See the figure below:
    Update Pod quantity
  5. Adjust the Pod quantity based on actual needs and click Update Pod quantity to complete the adjustment.

Using kubectl to Manipulate Deployments

YAML Sample

apiVersion: apps/v1beta2
kind: Deployment
metadata:
  name: nginx-deployment
  namespace: default
  labels:
    app: nginx-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx-deployment
  template:
    metadata:
      labels:
        app: nginx-deployment
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80
  • kind: This identifies the Deployment resource type.
  • metadata: Basic information such as Deployment name, Namespace, and Label.
  • metadata.annotations: An additional description of the Deployment. You can set additional enhancements to TKE through this parameter.
  • spec.replicas: The number of Pods managed by the Deployment.
  • spec.selector: Label of the Pod selected by the selector managed by the Deployment.
  • spec.template: Detailed template configuration of the Pod managed by the Deployment.

For more details about the parameters, see Kubernetes' official document about Deployment.

Using kubectl to Create a Deployment

  1. See the YAML sample to prepare the Deployment YAML file.
  2. Install kubectl and connect to a cluster.
  3. Run the following command to create the Deployment YAML file.
    kubectl create -f Deployment YAML filename
    For example, to create a Deployment YAML file named nginx.yaml, run the following command:
    kubectl create -f nginx.yaml
  4. Run the following command to verify whether the creation is successful.
    kubectl get deployments
    If a message similar to the one below is returned, the creation is successful.
    NAME             DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   AGE
    first-workload   1         1         1            0           6h
    ng               1         1         1            1           42m

Using kubectl to Update a Deployment

There are three methods to update a Deployment using kubectl. Among them, method 1 and method 2 support both Recreate and RollingUpdate update policies.

  • The Recreate update policy is to first terminate all Pods and then recreate the Deployment.
  • The RollingUpdate update policy is to update the Pods of the Deployment one by one in a rolling basis. RollingUpdate also supports pausing update and setting update interval.

Method 1

Run the following command to update a Deployment.

kubectl edit  deployment/[name]

This method is good for testing and verification, but not production. You can also update Deployment parameters using this method.

Method 2

Run the following command to update the image of the specified container.

kubectl set image deployment/[name] [containerName]=[image:tag]

For updates, we recommend that you change none of the Deployment parameters but the one for container's image.

Method 3

Run the following command to roll update the specified resource.

kubectl rolling-update [NAME] -f FILE

For more information about rolling update, see Notes on Rolling Update.

Using kubectl to Rollback a Deployment

  1. Run the following command to view the rollout history of the Deployment.
    kubectl rollout history deployment/[name]
  2. Run the following command to view the details of the specified version.
    kubectl rollout history deployment/[name] --revision=[REVISION]
  3. Run the following command to rollback to an earlier Deployment version.
    kubectl rollout undo deployment/[name]
    To specify the number of Deployment version you want to rollback to, run the following command.
    kubectl rollout undo deployment/[name] --to-revision=[REVISION]

Using kubectl to Adjust Pod Quantity

Manually Updating the Pod Quantity

Run the following command to manually update the Pod quantity.

kubectl scale deployment [NAME] --replicas=[NUMBER]

Automatically Updating the Pod Quantity

Prerequisites

Turn on the HPA feature of the cluster. HPA is turned on by default for clusters created by TKE.

Directions

Run the following command to set automatic scaling for the Deployment.

kubectl autoscale deployment [NAME] --min=10 --max=15 --cpu-percent=80

Using kubectl to Delete a Deployment

Run the following command to delete a Deployment.

kubectl delete deployment [NAME]
