CronJob Management

Last updated: 2019-08-12 20:26:00

    Overview

    A CronJob object is similar to a line in a crontab (cron table) file. It periodically runs a Job according to the specified schedule. For more information about the format, see cron's documentation.
    The cron format is as follows:

    # File format description
    # --minute (0 - 59)
    # | --hour (0 - 23)
    # | | --day (1 - 31)
    # | | | --month (1 - 12)
    # | | | | --week (0 - 6)
    # | | | | |
    # * * * * *

    Operation Guide for CronJobs in the Console

    Creating a CronJob

    1. Log in to the TKE console.
    2. In the left sidebar, click Clusters to go to the cluster management page.
    3. Click the ID of the cluster where CronJob needs to be created to enter the cluster management page.

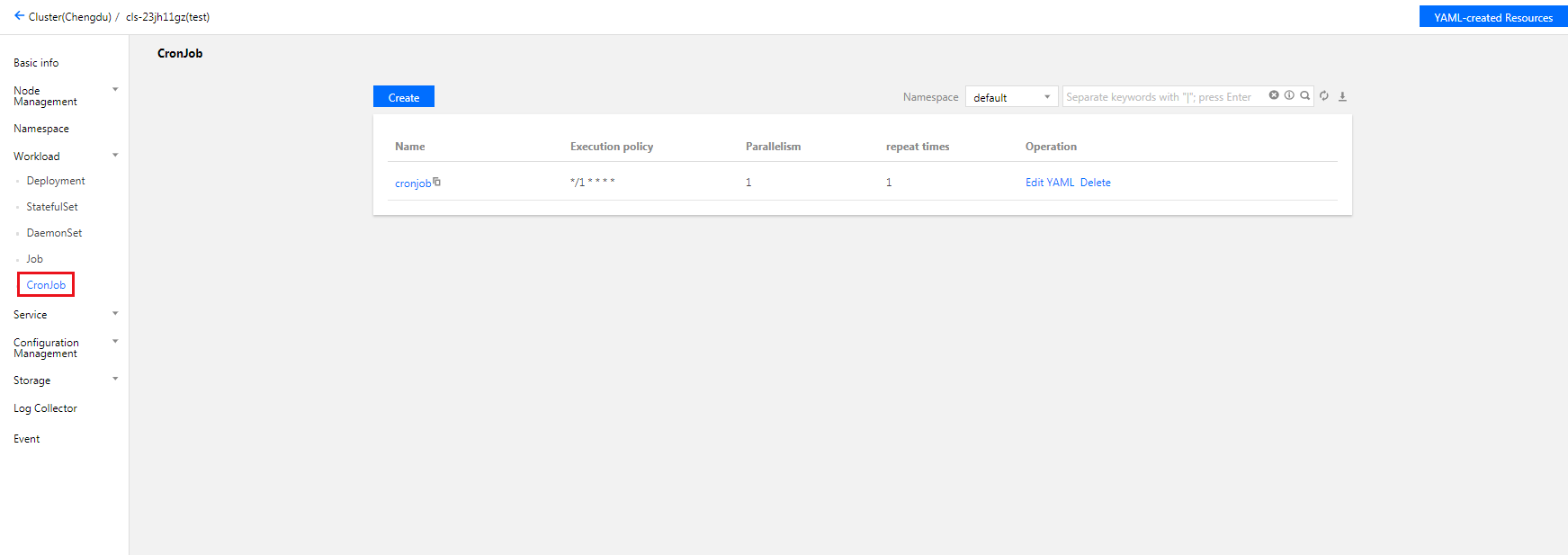

    4. Select "Workload" > "CronJob" to go to the CronJob information page. See the figure below:
      CronJob

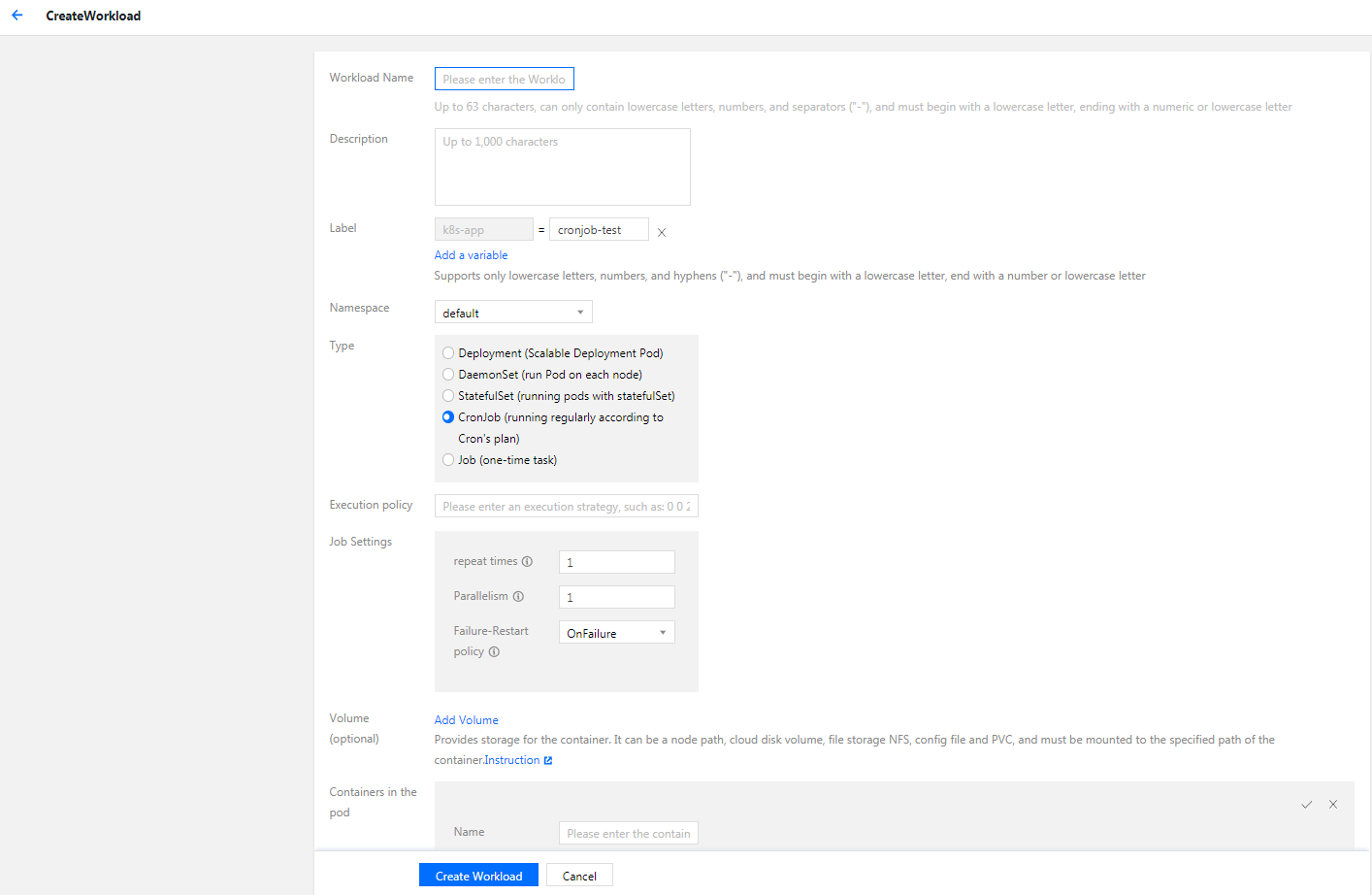

    5. Click Create to go to the "Create a workload" page. See the figure below:
      Create a workload
    6. Set the CronJob parameters based on actual needs. Key parameters are as follows:
      • Workload name: Custom.
      • Namespace: Select based on actual needs.
      • Type: Select "CronJob (running according to a cron schedule)".
      • Run policy: Set the periodic run policy of the Job based on the cron format.
      • Job settings
        • Repetitions: The number of times the Job-managed Pod needs to be repeated.
        • Parallelism: The number of Pods that the Job runs in parallel.
        • Restart policy: The restart policy after a container in the Pod exits exceptionally.
          • Never: Do not restart the container until all containers in the Pod exit.
          • OnFailure: The Pod continues to run and the container will be restarted.
      • In-Pod containers: Set one or more different containers for a Pod of the CronJob based on actual needs.
        • Name: Custom.
        • Image: Select based on actual needs.
        • Image tag: Enter based on actual needs.
        • CPU/memory limits: Set the CPU and memory limit according to Kubernetes' resource limits to improve the robustness of the business.
        • Advanced settings: Parameters such as "working directory", "run commands", "run parameters", "container health check", and "privilege level" can be set.
    7. Click Create a workload. Now you successfully created a workload.

    Viewing CronJob Status

    1. Log in to the TKE console.
    2. In the left sidebar, click Clusters to go to the cluster management page.
    3. Click the ID of the cluster where CronJob status needs to be checked to enter the cluster management page.
    4. Select "Workload" > "CronJob" to go to the CronJob information page. See the figure below:
      CronJob
    5. Click the name of the CronJob for which to view the status to view its details.

    Using kubectl to Manipulate CronJobs

    YAML Sample

    apiVersion: batch/v1beta1
    kind: CronJob
    metadata:
      name: hello
    spec:
      schedule: "*/1 * * * *"
      jobTemplate:
        spec:
          template:
            spec:
              containers:
              - name: hello
                image: busybox
                args:
                - /bin/sh
                - -c
                - date; echo Hello from the Kubernetes cluster
              restartPolicy: OnFailure
    • kind: This identifies the CronJob resource type.
    • metadata: Basic information such as CronJob name and Label.
    • metadata.annotations: An additional description of the CronJob. You can set additional enhancements to TKE through this parameter.
    • spec.schedule: The cron policy run by the CronJob.
    • spec.jobTemplate: The Job template run by cron.

    Creating a CronJob

    Method 1

    1. See the YAML sample to prepare the CronJob YAML file.
    2. Install kubectl and connect to a cluster.
    3. Run the following command to create the CronJob YAML file.
      kubectl create -f CronJob YAML filename
      For example, to create a CronJob YAML file named cronjob.yaml, run the following command:
      kubectl create -f cronjob.yaml

    Method 2

    1. Quickly create a CronJob by running the kubectl run command.
      For example, to quickly create a CronJob that does not need to write full configuration information, run the following command:
      kubectl run hello --schedule="*/1 * * * *" --restart=OnFailure --image=busybox -- /bin/sh -c "date; echo Hello"
    2. Run the following command to see if you successfully created a CronJob.
      kubectl get cronjob [NAME]
      A message similar to the one below indicates that you successfully created the item.
      NAME      SCHEDULE    SUSPEND   ACTIVE    LAST SCHEDULE   AGE
      cronjob   * * * * *   False     0         <none>          15s

    Deleting a CronJob

    • Before running this deletion command, please confirm whether there is a Job being created; if yes, running this command will terminate that Job.
    • When you run this deletion command, created Jobs and completed Jobs will not be terminated or deleted.
    • To delete a Job created by CronJob, please do so manually.

    Run the following command to delete a CronJob.

    kubectl delete cronjob [NAME]
