ConfigMap Management

Last updated: 2020-04-26 17:40:31

    Introduction

    ConfigMap allows you to decouple configuration artifacts from images to ensure that the application is more portable. ConfigMap is a key-value pair. You can log in to the console to create ConfigMap objects or use kubectl. ConfigMap is useful when mounting data volumes, environment variables, or running container commands.

    Using ConfigMap via the Console

    Creating a ConfigMap

    1. Log in to the TKE Console.
    2. In the left sidebar, click Clusters to go to the cluster management page.
    3. Click the ID of the cluster where ConfigMap needs to be created to go to the cluster management page.

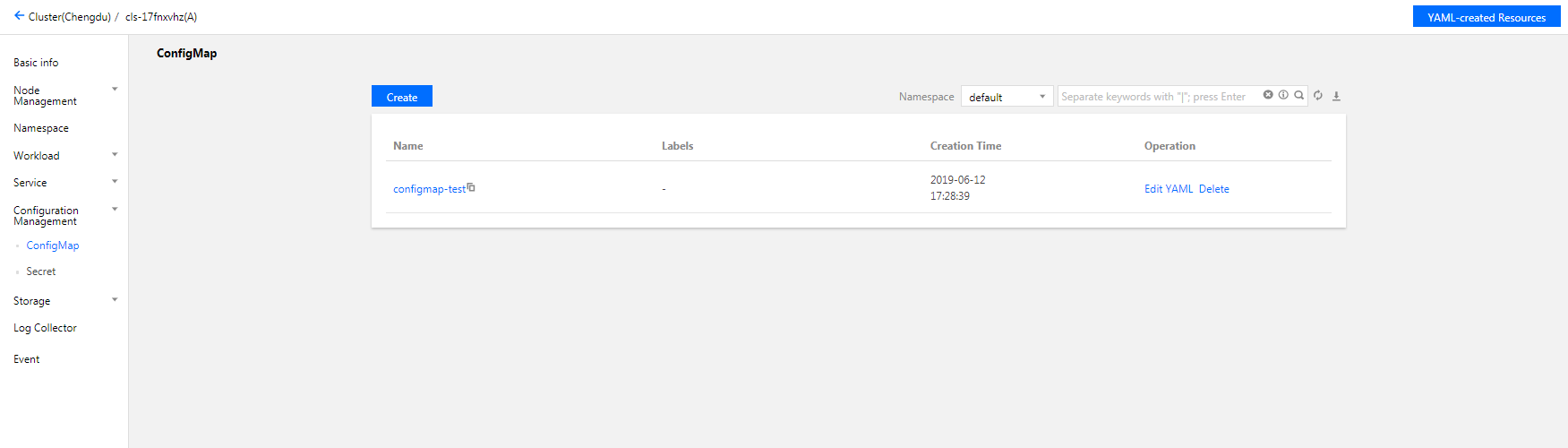

    4. Select Configuration Management > ConfigMap to go to the ConfigMap information page, as shown in the following figure:
      ConfigMap
    5. Click Create to go to the "Create a ConfigMap" page, as shown in the following figure:
      Create ConfigMap
    6. Set the ConfigMap parameters.
      • Name: name of the ConfigMap.
      • Namespace: select the namespace type and set the variable name and value.
    7. Click Create ConfigMap to finish the process.

    Using a ConfigMap

    Using the ConfigMap for a data volume

    1. Log in to the TKE Console.
    2. In the left sidebar, click Clusters to go to the cluster management page.
    3. Click the ID of the cluster where workload needs to be deployed to enter the cluster management page.
    4. Under “Workload”, select any workload type to go to the page for the relevant information. For example, select Workload > DaemonSet, to go to the page for the relevant information.
    5. Click Create to go to the "Create a workload" page.
    6. Set the workload name, namespace and other information as instructed. For Volume, click Add Volume .
    7. Select "Use a ConfigMap", enter the name, and click Select a ConfigMap, as shown below:
    8. In the “Set ConfigMap” window that pops up, configure the mounting point (refer to the following information), and click Submit, as shown in the following figure.
      • Select a ConfigMap: select as needed.
      • Options: select All or Specific keys.
      • Items: if you select Specific keys, you can mount a specific path by adding an item. For example, if the mounting point is /data/config, and the path is dev, it is saved under /data/config/dev.
    9. Click Create a workload. Now you have successfully created a workload.

    Using ConfigMap with an environmental variable

    1. Log in to the TKE Console.
    2. In the left sidebar, click Clusters to go to the cluster management page.
    3. Click the ID of the cluster where the workload needs to be deployed to enter the cluster management page.
    4. Select a type for the Workload to go to the relevant information page. For example, select Workload > DaemonSet to go to the DaemonSet information page, as shown below:
    5. Click Create to go to the "Create a workload" page.
    6. Set the workload name, namespace and other information as instructed. In Environment Variable under Containers in the pod, click Reference ConfigMap/Secret .
    7. Select ConfigMap for the environment variable and select the resource.
    8. Click Create a workload to finish the process.

    Updating a ConfigMap

    1. Log in to the TKE Console.
    2. In the left sidebar, click Clusters to go to the cluster management page.
    3. Click the cluster ID for which you want to update the YAML to go to the cluster management page.
    4. Select Configuration Management > ConfigMap to go to the ConfigMap information page.
      ConfigMap
    5. In the row of the ConfigMap to update the YAML, click Edit YAML to go to the ConfigMap updating page.
    6. On the Update a ConfigMap page, edit the YAML and click Finish to update the YAML.

      To modify key-values, edit the parameter values of data in YAML and click Finish to complete the update.

    Using ConfigMaps with kubectl

    Sample YAML

    apiVersion: v1
    data:
      key1: value1
      key2: value2
      key3: value3
    kind: ConfigMap
    metadata:
      name: test-config
      namespace: default
    • data: ConfigMap data in the form of key-value pairs.
    • kind: ConfigMap resource type.
    • metadata: information such as ConfigMap name and Label.
    • metadata.annotations: an additional description of the ConfigMap. You can set additional enhancements to TKE through this parameter.

    Creating a ConfigMap

    Using a YAML file

    1. Use the Sample YAML to prepare the ConfigMap YAML file.
    2. Install kubectl and connect to a cluster. For detailed operations, refer to Connecting to Clusters.
    3. Run the following command to create the ConfigMap YAML file.
      kubectl create -f ConfigMap YAML filename
      For example, to create a ConfigMap YAML file named web.yaml, run the following command:
      kubectl create -f web.yaml
    4. Run the following command to check if the file was successfully created:
      kubectl get configmap
      A message similar to the one below indicates that the YAML file has successfully been created.
      NAME          DATA      AGE
      test          2         39d
      test-config   3         18d

    Using a command

    Run the following command to create a ConfigMap.

    kubectl create configmap <map-name> <data-source>
    • <map-name>: name of the ConfigMap.
    • <data-source>: the directory, file, or literal value to draw the data from.

    For more details about the parameters, refer to Kubernetes official documentation.

    Using a ConfigMap

    Using the ConfigMap with a data volume

    The following is a sample YAML file:

    apiVersion: v1
     kind: Pod
     metadata:
       name: nginx
     spec:
       containers:
         - name: nginx
           image: nginx:latest
           volumeMounts:
            name: config-volume
            mountPath: /etc/config
       volumes:
            name: config-volume
            configMap:
              name: test-config ## ConfigMap data source
              ## items: ## Set the key mounting of the specified ConfigMap
              ## key: key1 ## Select specific keys
              ## path: keys ## Mount to the specified path
       restartPolicy: Never

    Using the ConfigMap with an environment variable

    The following is a sample YAML file:

    apiVersion: v1
     kind: Pod
     metadata:
       name: nginx
     spec:
       containers:
         - name: nginx
           image: nginx:latest
           env:
             - name: key1
               valueFrom:
                 configMapKeyRef:
                   name: test-config ## file name of the source ConfigMap
                   key: test-config.key1 ## source of value of the environment variable
       restartPolicy: Never
