Managing CFS Templates by Using a StorageClass

Last updated: 2020-10-20 15:54:39

    Operation Scenario

    A cluster admin can use StorageClass to define different storage classes for Tencent Kubernetes Engine (TKE) clusters. TKE provides the block storage StorageClass by default. You can use both StorageClass and PersistentVolumeClaim to dynamically create required storage resources.

    This document describes how to create a StorageClass of the Cloud File Storage (CFS) type by using the console and Kubectl as well as how to customize the template required by CFS disks.

    Preparations

    Installing the CFS add-on

    Note:

    If your cluster has been installed with the CFS-CSI add-on, skip this step.

    1. Log in to the TKE Console.
    2. Click Cluster in the left sidebar to go to the Cluster Management page.
    3. Click the ID of the cluster for which you want to create an add-on to go to the Cluster Details page.
    4. On the "Cluster Details" page, choose Add-On Management > Create to go to the Create an add-on page.
    5. On the Create an add-on page, select CFS and click Done.

    Creating a subnet

    When creating a StorageClass, you need to set the subnet of CFS. To ensure that all availability zones have suitable subnets in the VPC where the CFS resides, we recommend that you create subnets in advance.

    1. Log in to the VPC Console and click Subnet in the left sidebar.
    2. On the Subnet page, click +New. The Create a Subnet page appears, where you can configure the Subnet Name, VPC IP Range, CIDR, Availability Zone, and associated route table, as shown in the following figure.
    3. (Optional) Click +New Line to create multiple subnets at a time.
    4. Click Create.

    Creating a permission group and adding permission group rules

    When creating a StorageClass, you need to configure a permission group for CFS. To ensure that CFS has a suitable permission group, we recommend that you create a permission group in advance.

    1. Log in to the CFS Console and click Permission Group in the left sidebar.
    2. On the Permission Group page, click Create. In the Create Permission Group window that appears, configure the permission group name and remarks.
    3. Click Confirm to create the permission group. It will now appear on the Permission Group page.
    4. Click the ID of this permission group to go to its details page, where you can add, modify, or delete permission group rules. If no rules have been added to this permission group, all operations are allowed. For more information, see Creating a permission group rule.

    Directions

    Console operation instructions

    Creating a StorageClass via the console

    1. Log in to the Tencent Kubernetes Engine console and click Cluster in the left sidebar.
    2. On the Cluster Management page, click the ID of the target cluster to go to the cluster details page.

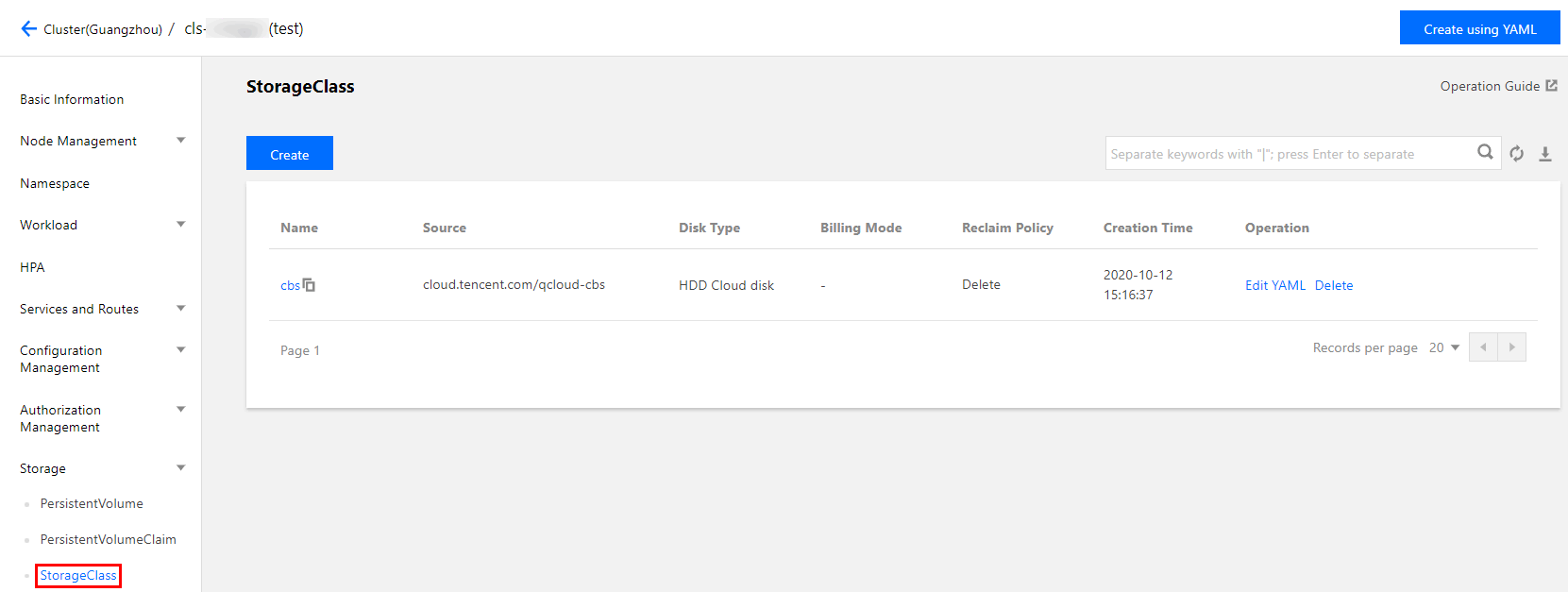

    3. Choose Storage > StorageClass in the left sidebar to go to the StorageClass page, as shown in the following figure.
    4. Click Create to go to the Create a StorageClass page, where you can set the parameters as required, as shown in the following figure.

      Main parameters are described as follows:
      • Name: set a custom name. This document uses cfs-storageclassas an example.
      • Provisioner: select Cloud File Storage.
      • Availability Zone: set the available zones that can use CFS in the current region. Different regions may support different storage classes in different availability zones. For more information, see Available Regions.
      • Subnet of CFS: set the subnet range that can be used by CFS in the current availability zone based on your needs.
      • Storage Type: CFS provides Standard Storage and High-Performance Storage. Different regions may support different storage types in different availability zones. Select a storage type as prompted by the console.
        • Standard Storage: this class features low cost and large capacity and is suitable for applications that are cost-sensitive and need large capacity. For example, standard storage can be used for data backup, file sharing, and log storage.
        • High-Performance Storage: this class features high throughput and high IOPS and is suitable for I/O-intensive workloads. For example, high-performance storage can be used for high-performance computing, media asset rendering, machine learning, DevOps, and office OA.
      • File Service Protocol: NFS is used by default, which allows transparent access to files and file systems on the file server.
      • Permission Group: configure a permission group for the file system, which is used to manage the access and read/write permissions of clients that access the file system in the same network. Select an appropriate permission group as required. If no such permission group is available, create one on the Permission Group page.
      • Reclaim Policy: the reclaim policy for CBS disks. The Delete and Retain reclaim policies are provided. For data security, we recommend that you select Retain.
    5. Click Create a StorageClass to complete the process.

    Creating a PVC by using a specified StorageClass

    1. On the Cluster Management page, select the ID of the cluster for which a PVC needs to be created.

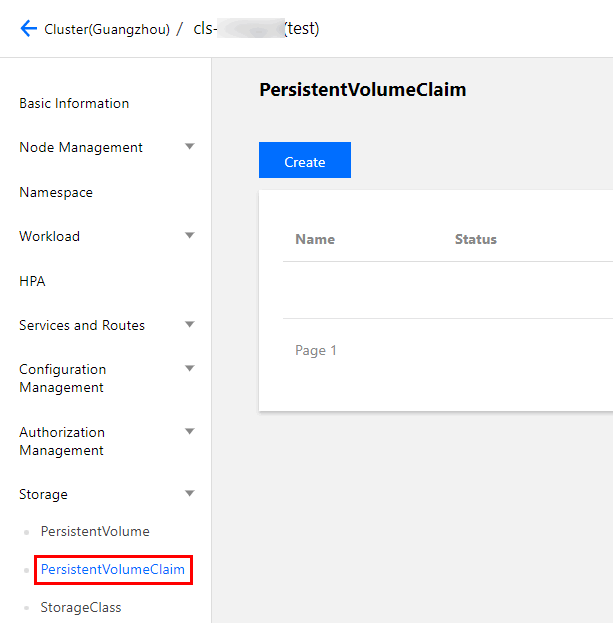

    2. On the cluster details page, choose Storage -> PersistentVolumeClaim in the left sidebar to go to the PersistentVolumeClaim page, as shown in the following figure.
    3. Click Create to go to the Create a PersistentVolumeClaim page, where you can set key PVC parameters as required, as shown in the following figure.

      Main parameters are described as follows:
    • Name: set a custom name. This document uses cfs-pvc as an example.

    • Namespace: select default.

    • Provisioner: select Cloud File Storage.

    • R/W permission: CFS only supports multi-host read and write.

    • StorageClass: specify a StorageClass as required. This document uses the cfs-storageclass created in the step of Creating a StorageClass as an example.

      Note:

      • The PVC and PV will be bound to the same StorageClass.
      • If you do not specify a StorageClass, the value of StorageClass for the corresponding PVC is empty, and the value of the storageClassName field in the corresponding YAML file is a null string.
    • PersistVolume: specify a PersistentVolume as required. In the example in this document, no PersistentVolume is specified.

      Note:

      • The system first searches the current cluster to see whether there are PVs that meet the binding rules. If not, the system dynamically creates a PV to be bound based on the PVC and the selected StorageClass.
      • Either StorageClass or PersistVolume should be specified.
      • No PersistVolume is specified. For more information, see Viewing the rules for binding PVs and PVCs.
    1. Click Create a PersistentVolumeClaim to complete the creation process.

    Creating a workload to use a PVC volume

    Note:

    This step creates a Deployment workload as an example.

    1. On the Cluster Management page, select the target cluster ID to go to the Deployment page of the cluster for which the workload needs to be deployed.
    2. Click Create to go to the Create Workload page. For more information on how to create a workload, see Creating a Deployment. Then, mount a volume as required, as shown in the following figure.
      • Volume (optional):
        • Mount method: select Use existing PVC.
        • Volume name: set a custom name. This document uses cfs-vol as an example.
        • Select PVC: select cfs-pvc, which you created in the step of Creating a PVC.
      • Containers in the pod: click Add Mount Point to set a mount point.
        • Volume: select the volume cfs-vol that you added in this step.
        • Destination Path: enter a destination path. This document uses /cache as an example.
        • Sub-path: mount only a sub-path or a single file in the selected volume, such as /data or /test.txt.
    3. Click Create Workload to complete the creation process.

      Note:

      If you use the PVC mount method, the volume can be mounted to only one node.

    Kubectl operation instructions

    You can also create a StorageClass by directly using Kubectl. The template is as follows:

    apiVersion: storage.k8s.io/v1
    kind: StorageClass
    metadata:
      name:  CFS auto
    parameters:
    # first you must modify vpcid and subnetid in storageclass parameters
      vpcid: vpc-xxxxxxxx
      subnetid: subnet-xxxxxxxx
    provisioner: com.tencent.cloud.csi. CFS

    The following parameters are supported:

    Parameter Optional Description
    vpcid Yes ID of the VPC where the target CFS resides.
    subnetid Yes ID of the subnet where the target CFS resides.
    zone No Region where the target CFS resides.
    pgroupid No Permission group to which the target CFS belongs.
    storagetype No Storage type. It is standard storage (SD) by default. Valid values are described as follows:
    • SD: standard storage.
    • HP: high-performance storage
