Getting Started

Last updated: 2020-06-12 15:02:54

    Download and Installation

    Relevant resources

    Environment dependencies

    • Dependent static library: jsoncpp boost_system boost_thread Poco (in the lib folder).
    • Dependent dynamic library: ssl crypto rt z (installation required).
      The JsonCpp libraries and header files are available in the SDK. If you want to install them on your own, please follow the steps below to install the libraries and finish the compiling, then replace the corresponding libraries and header files in the SDK. If the libraries above are already installed in the system, you can also delete the corresponding libraries and header files in the SDK.

    Installing the Linux SDK

    1. Install CMake

    yum install -y gcc gcc-c++ make automake
    // Install `gcc` and other required packages (skip this step if they have already been installed)
    yum install -y wget

    // The version of CMake should be above 3.5
    wget https://cmake.org/files/v3.5/cmake-3.5.2.tar.gz
    tar -zxvf cmake-3.5.2.tar.gz
    cd cmake-3.5.2
    ./bootstrap --prefix=/usr
    gmake
    gmake install

    2. Install Boost libraries and header files

    wget http://sourceforge.net/projects/boost/files/boost/1.54.0/boost_1_54_0.tar.gz
    tar -xzvf boost_1_54_0.tar.gz
    cd boost_1_54_0
    ./bootstrap.sh --prefix=/usr/local
    ./b2 install --with=all
    #Boost libraries are installed in the `/usr/local/lib` directory

    3. Install OpenSSL

    Method 1

    yum install openssl openssl-devel

    Method 2

    wget https://www.openssl.org/source/openssl-1.1.1d.tar.gz
    tar -xzvf ./openssl-1.1.1d.tar.gz
    cd openssl-1.1.1d/
    ./config --prefix=/usr/local/ssl --openssldir=/usr/local/ssl
    make
    make install
    cd /usr/local/
    ln -s ssl openssl
    echo "/usr/local/openssl/lib" >> /etc/ld.so.conf
    ldconfig

    # Add a header/lib file search path (can be written into the ~/.bashrc file)
    LIBRARY_PATH=/usr/local/ssl/lib/:$LIBRARY_PATH
    CPLUS_INCLUDE_PATH=/usr/local/ssl/include/:$CPLUS_INCLUDE_PATH

    4. Install Poco libraries and header files

    Download and install the complete version of Poco libraries and header files from the Poco official website

    The latest version of Poco requires C++14 support. If your compiler only supports C++11 or below, you can use Poco 1.9.4.

    ./configure --omit=Data/ODBC,Data/MySQL
    make
    make install

    You can specify the local Boost header file path by modifying the following statement in the CMakeList.txt file:

    SET(BOOST_HEADER_DIR "/root/boost_1_61_0")

    5. Compile the COS CPP SDK

    Download the XML C++ SDK source code, integrate it into your development environment, and run the following command:

    cd ${cos-cpp-sdk}
    mkdir -p build
    cd build
    cmake ..
    make

    The Demo provides examples of common APIs. The generated cos_demo can be executed directly; the generated static library is named libcossdk.a and should be placed in the lib path of your project; the generated include directory should be copied to the include path of your project.

    Installing the Windows SDK

    1. Install visual studio 2017

    Install visual studio 2017 as a development environment for Windows.

    2. Install CMake

    Download the Windows version of the CMake compiler from the CMake official website, and configure ${CMake installation path}\bin in the Path environment variable.

    3. Install OpenSSL

    (1) Download and compile the OpenSSL source code from the OpenSSL official website, or select and install the Windows version of the .exe file from this third-party website.
    (2) Add the OPENSSL_ROOT_DIR variable to the Windows system environment variables and set it to ${OpenSSL installation path},
    For example: OPENSSL_ROOT_DIR=D:\OpenSSL-Win64.
    (3) Configure ${OpenSSL installation path}\bin in the Path environment variable.

    4. Install Poco

    Download and install the complete version of Poco libraries and header files from the Poco official website

    (1) Open the Windows Command Prompt program and use the cd command to navigate to the Poco source code directory; then, run mkdir examplefolder to create a folder (be sure to replace examplefolder with your custom folder name).
    (2) Continue to run cd examplefolder (be sure to replace examplefolder with your custom folder name), and run the cmake .. command.
    (3) Use visual studio 2017 to open the solution and compile it.

    5. Install Boost

    Download the Boost source code from the [Boost official website] (https://www.boost.org/).

    (1) Open the Windows Command Prompt program and use the cd command to navigate to the Boost source code directory.
    (2) Run the bootstrap command in this directory.
    (3) Run the b2 compilation command in the Windows Command Prompt program.

    Considerations

    Visual studio 2017 provides four code generation methods which correspond to different commands during Boost compilation.

    The code for the b2.exe compilation command is as shown below:

    link runtime-link compilation mode multi-thread type
    static static release MT
    static static debug MTd
    static shared release MD
    static shared debug MDd

    For example, if the 32-bit multi-thread type is MD, the command is as follows:

    b2 variant=release link=static runtime-link=shared threading=multi address-model=32

    6. Install jsoncpp

    (1) Download jsoncpp source code here. For Win32, we recommend that you select a [earlier version] (https://github.com/open-source-parsers/jsoncpp/tree/0.y.z).
    (2) Open the Windows Command Prompt program and use the cd command to navigate to the jsoncpp source code directory; then, run mkdir examplefolder to create a folder (be sure to replace examplefolder with your custom folder name).
    (3) Continue to run cd examplefolder(be sure to replace examplefolder with your custom folder name), and run the cmake .. command.
    (5) Use visual studio 2017 to open the solution and compile it.
    (5) Once the compilation is complete, copy the resulting jsoncpplib to the lib folder under the COS CPP SDK installation directory.

    7. Compile the COS CPP SDK

    (1) Download the [XML Windows C++ SDK source code] (https://github.com/tencentyun/cos-cpp-sdk-v5/tree/windows_dev), integrate it into your development environment, and begin compilation.
    (2) Open the Windows Command Prompt program and use the cd command to navigate to the C++ SDK source code directory; then, run mkdir examplefolder to create a folder (be sure to replace examplefolder with your custom folder name).
    (3) Modify the CMakeLists.txt file in the ${cos-cpp-sdk} installation directory as shown below:

    # include directories
    INCLUDE_DIRECTORIES(./include)
    INCLUDE_DIRECTORIES(${OpenSSL installation directory}/include)
    INCLUDE_DIRECTORIES(${Boost installation directory}/boost)
    INCLUDE_DIRECTORIES(${Poco installation directory}/NetSSL_OpenSSL/include)
    INCLUDE_DIRECTORIES(${Poco installation directory}/Foundation/include)
    INCLUDE_DIRECTORIES(${Poco installation directory}/Net/include)
    INCLUDE_DIRECTORIES(${Poco installation directory}/Crypto/include)
    INCLUDE_DIRECTORIES(${Poco installation directory}/Util/include)

    # lib directories
    link_directories(${OpenSSL installation directory}/lib)
    link_directories(${Poco compilation directory}/lib/Release)
    link_directories(./lib)
    link_directories(${Boost installation directory}/stage/lib)

    (4) In the Windows Command Prompt program, run cd examplefolder (be sure to replace examplefolder with your custom folder name) and run the cmake .. command.

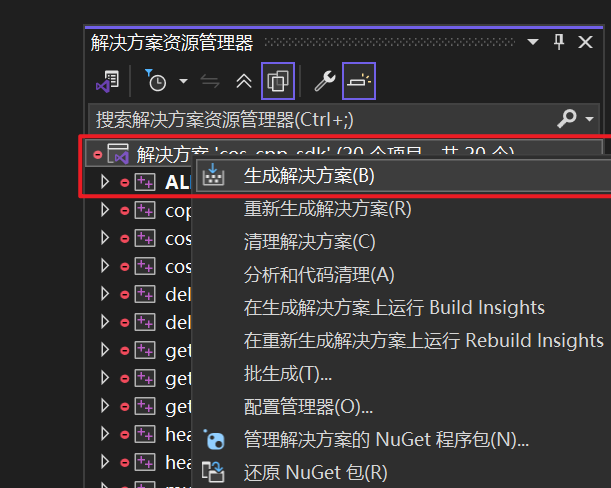

    (5) Use visual studio 2017 to open the solution and compile it.

    Install the Mac SDK

    1. Install CMake

    brew install cmake

    2. Install Boost libraries and header files

    wget http://sourceforge.net/projects/boost/files/boost/1.54.0/boost_1_54_0.tar.gz
    tar -xzvf boost_1_54_0.tar.gz
    cd boost_1_54_0
    ./bootstrap.sh --prefix=/usr/local
    ./b2 install --with=all
    #Boost libraries are installed in the `/usr/local/lib` directory

    3. Install OpenSSL

    Download and compile the openssl-1.1.1d.tar.gz source code from the [OpenSSL official website] (https://www.openssl.org/).

    tar -zxvf openssl-1.1.1d.tar.gz
    cd openssl-1.1.1d/
    ./config  --prefix=/usr/local
    make
    make install
    #openssl libraries are installed in the `/usr/local/` directory

    4. Install Poco libraries and header files

    Download and install the latest version of Poco libraries and header files from the [Poco official website] (https://pocoproject.org/download.html), or directly use the [git command] (https://github.com/pocoproject/poco.git) to download Poco.

    The latest version of Poco requires C++14 support. If your compiler only supports C++11 or below, you can use Poco 1.9.4.

    cd Poco/
    ./configure --omit=Data/ODBC,Data/MySQL
    mkdir examplefolder  #(Poco installation directory; Be sure to replace examplefolder with your custom folder name.)
    cd examplefolder
    cmake ..
    make

    5. Install jsoncpp

    Download the jsoncpp source code [here] (https://github.com/open-source-parsers/jsoncpp).

    cd jsoncpp/
    mkdir examplefolder  #(jsoncpp installation directory; Be sure to replace examplefolder with your custom folder name.)
    cd examplefolder
    cmake ..
    make

    Once the compilation is complete, copy the resulting jsoncpplib to the lib folder under the COS CPP SDK installation directory.

    6. Compile the COS CPP SDK

    (1) Download the XML C++ SDK source code [here] (https://github.com/tencentyun/cos-cpp-sdk-v5), and integrate it into your development environment.
    (2) Modify the CMakeLists.txt file in the ${cos-cpp-sdk} installation directory as shown below:

    # include directories
    INCLUDE_DIRECTORIES(./include)
    INCLUDE_DIRECTORIES(/usr/local/include)
    INCLUDE_DIRECTORIES(${Poco installation directory}/NetSSL_OpenSSL/include)
    INCLUDE_DIRECTORIES(${Poco installation directory}/Foundation/include)
    INCLUDE_DIRECTORIES(${Poco installation directory}/Net/include)
    INCLUDE_DIRECTORIES(${Poco installation directory}/Crypto/include)
    INCLUDE_DIRECTORIES(${Poco installation directory}/Util/include)

    # lib directories
    link_directories(/usr/local/lib)
    link_directories(${Poco compilation directory}/lib/Release)
    link_directories(./lib)

    Then run this command:

    cd ${cos-cpp-sdk}
    mkdir build
    cd build
    cmake ..
    make

    Getting Started

    The following describes how to use the COS C++ SDK to perform a basic operation, such as initializing a client, creating a bucket, querying a bucket list, uploading an object, querying an object list, downloading an object, and deleting an object.

    For the definitions of parameters such as SecretId, SecretKey, and Bucket, see the COS Glossary.

    Initialization

    Overview of each field in the configuration file:

    // For SDK config files before V5.4.3, please use "AccessKey"
    "SecretId":"COS_SECRETID",
    "SecretKey":"COS_SECRETKEY",

    // COS region. For regions and their abbreviations, see [here] https://intl.cloud.tencent.com/document/product/436/6224
    "Region":"Region",

    // Signature timeout (in sec)
    "SignExpiredTime":360,

    // Connection timeout period in milliseconds
    "ConnectTimeoutInms":6000,

    // HTTP request timeout period in milliseconds
    "HttpTimeoutInms":60000,

    // Size of uploaded file part. Range: 1 MB-5 GB; default value: 1 MB.
    "UploadPartSize":1048576,

    // Thread pool size for uploading a single file part
    "UploadThreadPoolSize":5,

    // The size of each part in the downloaded file
    "DownloadSliceSize":4194304,

    // Thread pool size for downloading a single file
    "DownloadThreadPoolSize":5,

    // Thread pool size for asynchronous upload and download
    "AsynThreadPoolSize":2,

    // Log output type. 0: do not output; 1: output to screen; 2: output to syslog
    "LogoutType":1,

    // Log level. 1 :ERR; 2: WARN; 3: INFO; 4:DBG
    "LogLevel":3,


    Creating a bucket

    #include "cos_api.h"
    #include "cos_sys_config.h"
    #include "cos_defines.h"

    int main(int argc, char *argv[]) {
        // 1. Specify the path to the configuration file and initialize CosConfig
        qcloud_cos::CosConfig config("./config.json");
        qcloud_cos::CosAPI cos(config);

        // 2. Construct the PUT Bucket request
        std::string bucket_name = "examplebucket-1250000000"; // Bucket name
        qcloud_cos::PutBucketReq req(bucket_name);
        qcloud_cos::PutBucketResp resp;

        // 3. Call the PUT Bucket API
        qcloud_cos::CosResult result = cos.PutBucket(req, &resp);

        // 4. Process the call result
        if (result.IsSucc()) {
            // Bucket created successfully
        } else {
            // Failed to create the bucket. You can call the CosResult member functions to output the error information such as the requestID.
            std::cout << "ErrorInfo=" << result.GetErrorInfo() << std::endl;
            std::cout << "HttpStatus=" << result.GetHttpStatus() << std::endl;
            std::cout << "ErrorCode=" << result.GetErrorCode() << std::endl;
            std::cout << "ErrorMsg=" << result.GetErrorMsg() << std::endl;
            std::cout << "ResourceAddr=" << result.GetResourceAddr() << std::endl;
            std::cout << "XCosRequestId=" << result.GetXCosRequestId() << std::endl;
            std::cout << "XCosTraceId=" << result.GetXCosTraceId() << std::endl;
        }
    }


    Querying a bucket list

    #include "cos_api.h"
    #include "cos_sys_config.h"
    #include "cos_defines.h"

    int main(int argc, char *argv[]) {
        // 1. Specify the path to the configuration file and initialize CosConfig
        qcloud_cos::CosConfig config("./config.json");
        qcloud_cos::CosAPI cos(config);

        // 2. Construct the GET Service request
        qcloud_cos::GetServiceReq req;
        qcloud_cos::GetServiceResp resp;
        qcloud_cos::CosResult result = cos.GetService(req, &resp);

        // 3. Get the response information
        const qcloud_cos::Owner& owner = resp.GetOwner();
        const std::vector<qcloud_cos::Bucket>& buckets = resp.GetBuckets();
        std::cout << "owner.m_id=" << owner.m_id << ", owner.display_name=" << owner.m_display_name << std::endl;

        for (std::vector<qcloud_cos::Bucket>::const_iterator itr = buckets.begin(); itr != buckets.end(); ++itr) {
            const qcloud_cos::Bucket& bucket = *itr;
            std::cout << "Bucket name=" << bucket.m_name << ", location="
                << bucket.m_location << ", create_date=" << bucket.m_create_date << std::endl;
        }

        // 4. Process the call result
        if (result.IsSucc()) {
            // Bucket list queried successfully
        } else {
            // Failed to query the bucket list. You can call the CosResult member functions to output the error information such as the requestID
            std::cout << "ErrorInfo=" << result.GetErrorInfo() << std::endl;
            std::cout << "HttpStatus=" << result.GetHttpStatus() << std::endl;
            std::cout << "ErrorCode=" << result.GetErrorCode() << std::endl;
            std::cout << "ErrorMsg=" << result.GetErrorMsg() << std::endl;
            std::cout << "ResourceAddr=" << result.GetResourceAddr() << std::endl;
            std::cout << "XCosRequestId=" << result.GetXCosRequestId() << std::endl;
            std::cout << "XCosTraceId=" << result.GetXCosTraceId() << std::endl;
        }
    }

    Uploading an object

    #include "cos_api.h"
    #include "cos_sys_config.h"
    #include "cos_defines.h"

    int main(int argc, char *argv[]) {
        // 1. Specify the path to the configuration file and initialize CosConfig
        qcloud_cos::CosConfig config("./config.json");
        qcloud_cos::CosAPI cos(config);

        // 2. Construct the PUT Object request
        std::string bucket_name = "examplebucket-1250000000"; // Destination bucket name
        std::string object_name = "exampleobject"; // exampleobject is the ObjectKey (Key), the unique ID of an object in a bucket. For example, if the object’s access domain name is `examplebucket-1250000000.cos.ap-guangzhou.myqcloud.com/doc/pic.jpg`, the object key is `doc/pic.jpg`
        // The local file path is required in the constructor of `request`.
        qcloud_cos::PutObjectByFileReq req(bucket_name, object_name, "/path/to/local/file");
        req.SetXCosStorageClass("STANDARD_IA"); // Call the `Set` method to set metadata
        qcloud_cos::PutObjectByFileResp resp;

        // 3. Call the PUT Object API
        qcloud_cos::CosResult result = cos.PutObject(req, &resp);

        // 4. Process the call result
        if (result.IsSucc()) {
            // File uploaded successfully
        } else {
            // Failed to upload the file. You can call the CosResult member functions to output the error information such as the requestID
            std::cout << "ErrorInfo=" << result.GetErrorInfo() << std::endl;
            std::cout << "HttpStatus=" << result.GetHttpStatus() << std::endl;
            std::cout << "ErrorCode=" << result.GetErrorCode() << std::endl;
            std::cout << "ErrorMsg=" << result.GetErrorMsg() << std::endl;
            std::cout << "ResourceAddr=" << result.GetResourceAddr() << std::endl;
            std::cout << "XCosRequestId=" << result.GetXCosRequestId() << std::endl;
            std::cout << "XCosTraceId=" << result.GetXCosTraceId() << std::endl;
        }
    }

    Querying an object list

    #include "cos_api.h"
    #include "cos_sys_config.h"
    #include "cos_defines.h"

    int main(int argc, char *argv[]) {
        // 1. Specify the path to the configuration file and initialize CosConfig
        qcloud_cos::CosConfig config("./config.json");
        qcloud_cos::CosAPI cos(config);

        // 2. Construct the GET Bucket request
        std::string bucket_name = "examplebucket-1250000000"; // Destination bucket name
        qcloud_cos::GetBucketReq req(bucket_name);
        qcloud_cos::GetBucketResp resp;
        qcloud_cos::CosResult result = cos.GetBucket(req, &resp);

        std::vector<qcloud_cos::Content> cotents = resp.GetContents();
        for (std::vector<qcloud_cos::Content>::const_iterator itr = cotents.begin(); itr != cotents.end(); ++itr) {
            const qcloud_cos::Content& content = *itr;
            std::cout << "key name=" << content.m_key << ", lastmodified ="
                << content.m_last_modified << ", size=" << content.m_size << std::endl;
        }

        // 3. Process the call result
        if (result.IsSucc()) {
            // Object list queried successfully
        } else {
            // Failed to query the object list. You can call the `CosResult` member functions to output the error information such as the requestID.
            std::cout << "ErrorInfo=" << result.GetErrorInfo() << std::endl;
            std::cout << "HttpStatus=" << result.GetHttpStatus() << std::endl;
            std::cout << "ErrorCode=" << result.GetErrorCode() << std::endl;
            std::cout << "ErrorMsg=" << result.GetErrorMsg() << std::endl;
            std::cout << "ResourceAddr=" << result.GetResourceAddr() << std::endl;
            std::cout << "XCosRequestId=" << result.GetXCosRequestId() << std::endl;
            std::cout << "XCosTraceId=" << result.GetXCosTraceId() << std::endl;
        }
    }

    Downloading an object

    #include "cos_api.h"
    #include "cos_sys_config.h"
    #include "cos_defines.h"

    int main(int argc, char *argv[]) {
        // 1. Specify the path to the configuration file and initialize CosConfig
        qcloud_cos::CosConfig config("./config.json");
        qcloud_cos::CosAPI cos(config);

        // 2. Construct the GET Object request
        std::string bucket_name = "examplebucket-1250000000"; // Destination bucket name
        std::string object_name = "exampleobject"; // exampleobject is the ObjectKey (Key), the unique ID of an object in a bucket. For example, if the object's access domain name is `examplebucket-1250000000.cos.ap-guangzhou.myqcloud.com/doc/pic.jpg`, the object key is `doc/pic.jpg`
        std::string local_path = "/tmp/exampleobject";
        // The request needs to carry the appid, bucketname, object, and local path (including the file name)
        qcloud_cos::GetObjectByFileReq req(bucket_name, object_name, local_path);
        qcloud_cos::GetObjectByFileResp resp;

        // 3. Call the GET Object API
        qcloud_cos::CosResult result = cos.GetObject(req, &resp);

        // 4. Process the call result
        if (result.IsSucc()) {
            // File downloaded successfully
        } else {
            // Failed to download the file. You can call the CosResult member functions to output the error information such as the requestID.
            std::cout << "ErrorInfo=" << result.GetErrorInfo() << std::endl;
            std::cout << "HttpStatus=" << result.GetHttpStatus() << std::endl;
            std::cout << "ErrorCode=" << result.GetErrorCode() << std::endl;
            std::cout << "ErrorMsg=" << result.GetErrorMsg() << std::endl;
            std::cout << "ResourceAddr=" << result.GetResourceAddr() << std::endl;
            std::cout << "XCosRequestId=" << result.GetXCosRequestId() << std::endl;
            std::cout << "XCosTraceId=" << result.GetXCosTraceId() << std::endl;
        }
    }

    Deleting an object

    #include "cos_api.h"
    #include "cos_sys_config.h"
    #include "cos_defines.h"

    int main(int argc, char *argv[]) {
        // 1. Specify the path to the configuration file and initialize CosConfig
        qcloud_cos::CosConfig config("./config.json");
        qcloud_cos::CosAPI cos(config);

        // 2. Construct the DELETE Object request
        std::string bucket_name = "examplebucket-1250000000"; // Destination bucket name
        std::string object_name = "exampleobject"; // exampleobject is the ObjectKey (Key), the unique ID of an object in a bucket. For example, if the object's access domain name is `examplebucket-1250000000.cos.ap-guangzhou.myqcloud.com/doc/pic.jpg`, the object key is `doc/pic.jpg`
        // 3. Call the DELETE Object API
        qcloud_cos::DeleteObjectReq req(bucket_name, object_name);
        qcloud_cos::DeleteObjectResp resp;
        qcloud_cos::CosResult result = cos.DeleteObject(req, &resp);

        // 4. Process the call result
        if (result.IsSucc()) {
            // File deleted successfully
        } else {
            // Failed to delete the file. You can call the CosResult member functions to output the error information such as the requestID.
            std::cout << "ErrorInfo=" << result.GetErrorInfo() << std::endl;
            std::cout << "HttpStatus=" << result.GetHttpStatus() << std::endl;
            std::cout << "ErrorCode=" << result.GetErrorCode() << std::endl;
            std::cout << "ErrorMsg=" << result.GetErrorMsg() << std::endl;
            std::cout << "ResourceAddr=" << result.GetResourceAddr() << std::endl;
            std::cout << "XCosRequestId=" << result.GetXCosRequestId() << std::endl;
            std::cout << "XCosTraceId=" << result.GetXCosTraceId() << std::endl;
        }
    }

    Was this page helpful?

    Was this page helpful?

    • Not at all
    • Not very helpful
    • Somewhat helpful
    • Very helpful
    • Extremely helpful
    Send Feedback
    Help
